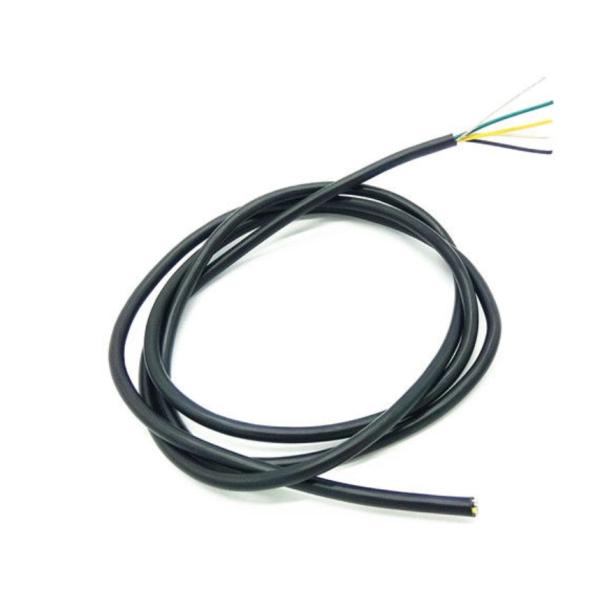

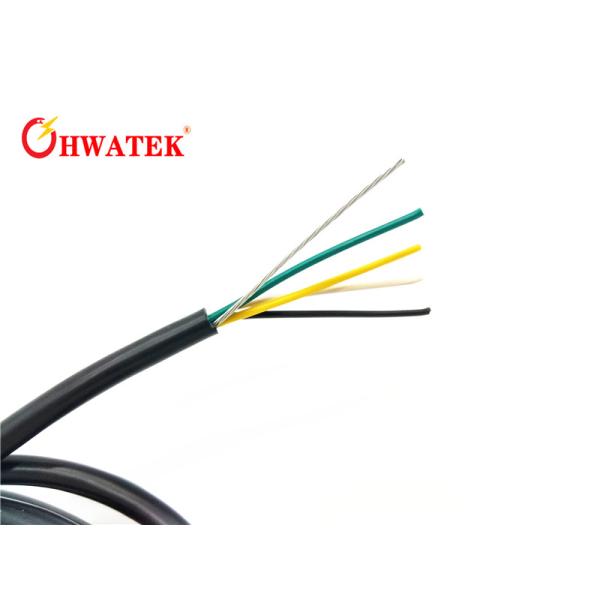

UL21089 Industrial Electrical Hook Up Cable With FRPE Jacket

UL21089 Electrical Hook Up Wire And Cable

Application: Internal wring or external interconnection of electronic equipment.
Application standard: UL758&UL1581&CSA C22.2 No.210
Product character:
Excellent insulation performance, stable chemical properties
Pass UL VW-1 and CSA FT1 vertical flame test
Heat resistance, anti-acid and environmental protection etc.
Constructure:
Tinned or bare copper, stranded or single conductor, 30-4/0AWG
PE or PP insulation
Two or more single-core wire are twisted
Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
FRPE jacket
Technical parameter:
Rated temperature : 60ºC ,80ºC
Rated Voltage: 30V
