| Categories | Youth Racing ATV |
|---|---|
| Brand Name: | RONGYAO |
| Model Number: | youth racing atv200cc23 |
| Certification: | EC,EEC,DOT,EPA |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, |
| Supply Ability: | 1000 pcs/month |
| Delivery Time: | Within 20 Days |
| Packaging Details: | Metal Frame with Carton |
| Product name: | 200cc youth racing atv |
| Engine type: | 161QMK |
| Max speed: | 60km/h |
| Transmission: | CVT |
| Battery: | 12V/9Ah |
| Seat height: | 810mm |
| Company Info. |
| Shanghai Rongyao Vehicle Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

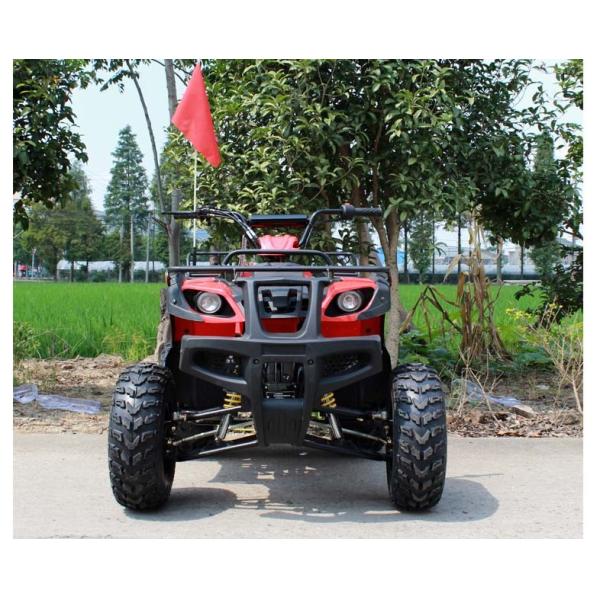

Youth Racing Atv CVT Transmission Air Cooled CDI Ignition
Model:
youth racing atv220CC23
Product Description:
| Engine type | 161QMK |
| Displacement | 168.9CC |
| Cooling | Air cool |
| Max horsepower | 8.3 KW @/8000RPM |
| Max torque | 11.0 NM @6000RPM |
| Bore*stroke | 61*57.8 mm |
| Max speed | 60KM |
| Ignition | CDI |
| Starting system | Electric |
| Battery | 12V 9AH |
| Engine oil | SF-15W/40W |
| CHASSIS ETC. | |
| Transmission | CVT |
| Driveline | Belt + Chain |
| Driving wheel | Rear axle |
| Suspension,front/rear | F. Twin A-Arm R. Single shock |
| Brakes,front/rear | F. Drum Brake R. Disc Brake |
| Tires,front/rear | 21*7-10 / 22*10-10 |
| Fuel capacity/type | 5.0 L |
| Weight,G.W./N.W. | 182 Kg / 159KG |
| Max load | 75 kg |
| DIMENSIONS | |
| Wheelbase | 1130mm |
| OA L*W*H | 1800*1080*1140 mm |
| Height to seat | 810mm |
| Min ground clearance | 140mm |
| Carton size | 1490*850*860mm |
| Shipping info | 66 unit/ 40HQ |
Applications:
1. adult use only
2. Forest road
3. Riverbed, Stream,
4 Mountain Road / Beach
5. Farm / Pleasure Ground
Terms of transaction:
Our warranty is 1 years. If your vehicle is broken,the spare parts
will be sent to you free of charge. This vehicle will be sent to
you assembled by sea and you can ride as soon as getting it. The
terms of payment is wire transfer,western union or . The delivery
time is about 20 days.
Our Service:
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two
days, until you get the products. When you got the goods, test
them, and give me a feedback.If you have any questions about the
problem, contact with us, we will offer the solve way for you.

|
