| Categories | TFT LCD Panel |
|---|---|

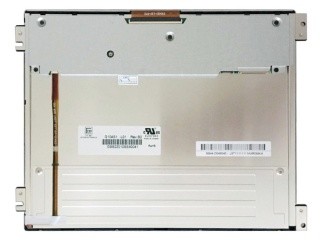

| Brand Name: | Innolux |
| Model Number: | G104S1-L01 |
| Certification: | ISO9001 |
| MOQ: | 1 |
| Price: | USD70 |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba |
| Supply Ability: | 500pcs |
| Delivery Time: | 3-4 Working Days |
| Packaging Details: | 16pcs/box with original factory package |
| Size: | 10.4 Inch |
| Resolution: | 800(RGB)×600 [SVGA] 96PPI |
| Brightness: | 400 cd/m² (Typ.) |
| Viewing Angle: | 80/80/70/70 (Typ.)(CR≥10) |
| Contrast Ratio: | 700:1 (Typ.) (TM) |
| Support Color: | 262K/16.2M 53% NTSC |
| Signal Interface: | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Environment: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| Company Info. |
| Sapientia Display Co.,LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for
the development of every type and class of LCD, from the design
stage right through to the production phase, while guaranteeing the
highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.
2. Chimei Innolux G104S1-L01 Optical Details:
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 5/11 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.292; Wy:0.334 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 7620K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 53% | sRGB | 72% coverage |
| Adobe RGB | 55% coverage | DCI-P3 | 55% coverage | |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3. Chimei Innolux G104S1-L01 Mechanical Details:
| Pixel Features : | Number of Pixel | 800(RGB)×600 [SVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.088×0.264 mm | Pixel Pitch(W×H) | 0.264×0.264 mm [96PPI] | |
| Physical Size : | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 243(W)×184(H) mm |
| Bezel Opening | 214.8(W)×162.7(H) mm | Overall Depth | 7.0/7.3 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right slugs | |||
| Other Detail : | Mass | 355g (Typ.) | Surface | Antiglare, Hard coating (3H) |
4. Chimei Innolux G104S1-L01 Lightting Details:
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | Replaceable | Amount | - | Life | 30K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| E&T | 3823K-F05N-00L | 1 pcs | 1.25 mm | 5 pins | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 0.25/0.3A (Typ./Max.) | Input Voltage | 12.0±5.0V | ||
| Consumption | 3.0/3.6W (Typ./Max.) | |||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
|
