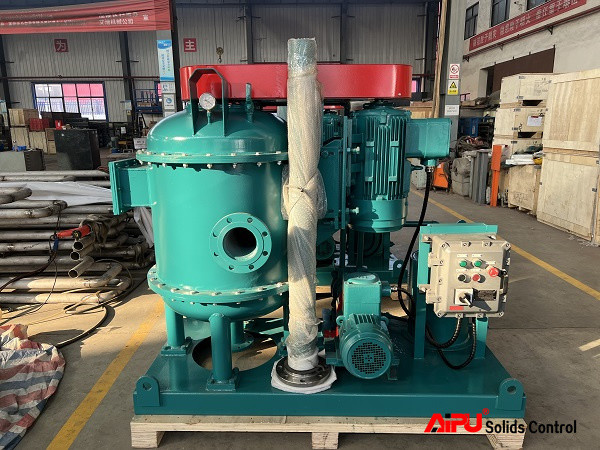

Oil Rig Drilling Offshore Vacuum Oilfield Degasser APZCQ240 Explosion Proof

Oil Rig Drilling Offshore Vacuum Degasser APZCQ240

Vacuum Degasser is used to remove the small entrained gas bubbles left in the mud by the mud/gas separator. The degasser is installed after shale shaker, we can call it second phase cleaning equipment in whole drilling fluids system. This equipment helps to maintain drilling fluid property and safe working conditions.

Offshore Vacuum Degasser APZCQ240 specification

AIPU Vacuum Degasser APZCQ240 specificities

APZCQ series vacuum degasser is no need to fit the feeding pump. The drilling mud can be sucked into degasser vessel under the negative pressure. Our degasser can be used as a heavy-power agitator and supported application to all types of mud circulation purification system.

Drilling fluid in the shaker tank is drawn by degasser via the suction line. The negative pressure produced by the vacuum pump. When we operate the degasser turn on the vacuum pump motor firstly to let vessel be empty. Then the mud introduced into degasser tank under the negative pressure.

Principle of vacuum degasser APZCQ240

Vacuum degasser vacuum of the negative pressure entrained by the gas extracted from the mud. To make it work, mud is pumped through the venturi, the venturi generates a negative pressure in the container by the vacuum pump, the suction unit so that the slurry. The choice between the horizontal or vertical mounting apparatus mounting requirements of a particular area is generally based on the rig.

Why select AIPU vacuum degasser?

It helps users to get rid of entrained gas efficiently. From the raw material to the test prior to delivery, AIPU provide all issues high quality. And we implement the strict QC regulations. The vacuum degasser is a mature equipment in drilling mud process. Compared to other brand or models, AIPU degasser is more competitive and easy to maintain. As solids control manufacturer, we are rather professional and providing the optimal solutions.

And AIPU provides the customization service on many different aspects. Such as the color, the base design, the motor electrical sytem, the necessary certificates, etc.

AIPU vacuum degasser wearing parts

Wearing parts including the bearing, the belt, the guage, the valve, the button or components in control cabinet, etc. These are rather easy to get in the market and cost little.

Other option of AIPU vacuum degasser

vacuum degasser can be designed and supplied according to users' requirements. Including the motor system, the certification, the brand, the color and so on. For some clients, they request a specific vent line for the discharge gas. This line is an extended pipe connected with an ignition device. this is specially used in shale gas field exploration.

If you have further requirements on the vacuum degasser. Standard equipment is the ideal one, however, if you have demand we'll do the related efforts to cater for your demand.

Please feel freely to contact us if any questions or interest. Trust you will get the best solution here.

AIPU Solids control is professional manufacturer on solids control equipment and system. The solution for drilling mud process as well as the drilling waste management, and the oli sludge treatment system.

All items can be used in oil and gas drilling, the oil sludge treatment, the HDD mud recycling, the civil construction micro tunnelling, the piling and so on. The main equipment inlcuding solids control system, shale shaker, mud cleaner, centrifgue decanter, degassers, agitator, mud gun, centrifugal pumps, mud tank, cuttings dryer, the mud cooling system and so on.

Pleased to say AIPU products have been delivered to many regions and conturies around the world. Including Germany, Russia, USA, UK, Kuwait,  UAE, India, Indonesia, Malaysia, Singapore, Taiwan, and so on.

Our hot sales product Hunter series shale shaker is rather popular with all of our clients. The Hunter-MG and Hunter-D shale shakers can be configured as linear motion, BEM or the dual motion. For the decks, they can be double deck. For the base, they can be dual tandem or triple tandem

Another hot sales products Hunter seires mud cleaner is maintained all the good features of Hunter series shaker. And the hydrocylones are all made of high quality polyurethane. Another feature is the cones are interchangeable with famous brand ones.

Besides the shale shaker and mud cleaner, there are centrifugal pumps, mud agitators and so on equipment appreciated by our clients. New innovated mud cooling system for land oil drilling is a patented products used in SINOPEC drilling site. The performance surprised end users.

Why clients select AIPU?

It's because of high qualty and the reasonable cost happened during our cooperation. We are professional on solids control, mud process, sludge treatment. Among all the orders there are over 80% orders are repeat orders from our regular clients or recommned by them

Are you in the demand of solids control or other mud treatment-related items now? Please come to us freely. Trust you will be surprised by AIPU products and servcies. All the solutions will be optimal and soonest one.
