3RB-5SS 5mmX5mmX7.5mm Gas Discharge Tube 90 Volt Gas Tube Arrester For Circuit Protection PCB Board

3RB-5SS 5mmX5mmX7.5mm Gas Discharge Tube 90 Volt Gas Tube Arrester For Circuit Protection PCB Board

Description of 3RB-5SS 5mmX5mmX7.5mm Gas Discharge Tube

Gas discharge tubes (GDT) use noble gasses enclosed in ceramic tubes to provide an alternate circuit path for voltage spikes. The ceramic envelope and with nickel connectors allow for high loads. 3RB-5SS Gas Discharge Tubes (GDT) series has a surge rating of 10kA, 8/20μs.Offered in a Squared Surface Mount package, which helps to make pick and place on PCB process easier.

This GDT series is perfectly suited for broadband equipment applications. The GDT’s low off-state capacitance is compatible with high bandwidth applications and this capacitance loading value does not vary if the voltage across the GDT changes.

3RB-5SS Gas Discharge Tube (GDT) series are specifically designed for protection of electrical, multimedia, and communication equipment against over voltage transients in surface mount assembly applications.

Features of 3RB-5SS 5mmX5mmX7.5mm Gas Discharge Tube

• Excellent response to fast rising transients
• Stable breakdown voltage
• GHz working frequency
• 8/20μs Impulse current capability: 10KA
• Surface Mount package
• Non-Radioactive
• Ultra Low capacitance (<1pF)
• High insulation resistance
• Lead-free compliant
• RoHS and REACH compliant
• Size: 5mm*5mm*7.5mm
• Storage and operational temperature: -40~+90°C

Applications of 3RB-5SS 5mmX5mmX7.5mm Gas Discharge Tube

• Communication equipment
• CATV equipment
• Data lines
• Power supplies
• Telecom SLIC protection
• Broadband equipment
• ADSL equipment, including ADSL2+
• XDSL equipment
• Satellite and CATV equipment
• Test equipment
• Consumer electronics

Electrical Characteristics of 3RB-5SS 5mmX5mmX7.5mm Gas Discharge Tube

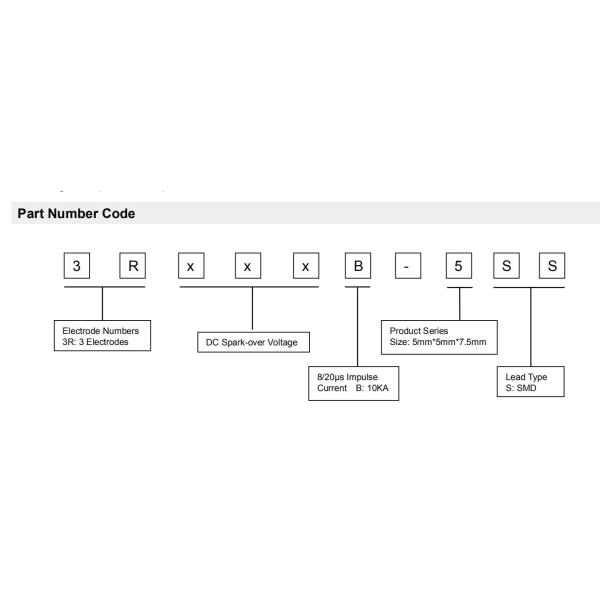

Part Number	DC Spark-over Voltage 1) 2) 3) @100V/S	Impulse Spark-over Voltage 3)			Insulation Resistance 4)	Capacitance @1MHz	Life Ratings
							Impulse Discharge Current @8/20μs 5)		AC Discharge Current @50Hz 1S 5)	Impulse Life @10/1000μS 200A 5)
		100V/μS		1KV/μS
		Max		Max	Min	Max	Nominal ±5 times	Max 1 time	Nominal 5 times	Min
	V	V		V	GΩ	pF	KA	KA	A	Times
3R075B-5SS	75±20%		500	600	1	1	10	12	10	300
3R090B-5SS	90±20%		500	600	1	1	10	12	10	300
3R150B-5SS	150±20%		500	600	1	1	10	12	10	300
3R200B-5SS	200±20%		600	700	1	1	10	12	10	300
3R230B-5SS	230±20%		600	700	1	1	10	12	10	300
3R250B-5SS	250±20%		600	700	1	1	10	12	10	300
3R350B-5SS	350±20%		800	900	1	1	10	12	10	300
3R400B-5SS	400±20%		850	950	1	1	10	12	10	300
3R420B-5SS	420±20%		850	950	1	1	10	12	10	300
3R470B-5SS	470±20%		900	1000	1	1	10	12	10	300
Glow Voltage at 10mA................................................................................ ~60V
Arc Voltage at 1A ~10V
Glow to Arc transition Current…………………………………………........... ~0.3A
Weight ~0.88g
Operation and storage temperature…………………………………............. -40~+90°C
Climatic category (IEC 60068-1) 40/90/21
Marking…………………………………………………………………............. Without
Surface treatment Matte-tin plated
1) At delivery AQL 0.65 level II, DIN ISO 2859 2) In ionized mode 3) Tip or ring electrode to center electrode 4) Insulation Resistance Measuring Voltage: 75V at DC 25V 90V~150V at DC 50V Other at DC 100V 5) Total current through center electrode, half value through tip respectively ring electrode. Terms in accordance with ITU-T Rec. K.12, IEC 61643-311, GB/T 9043.

Symbol

Millimeters

Inches

5.0±0.2

0.197±0.008

5.0±0.2

0.197±0.008

7.5±0.3

0.295±0.012

1.5±0.1

0.059±0.004

0.5±0.1

0.020±0.004

0.5±0.1

0.020±0.004

1.6

0.063

2.8

0.110

7.4

0.291

5.0

0.197

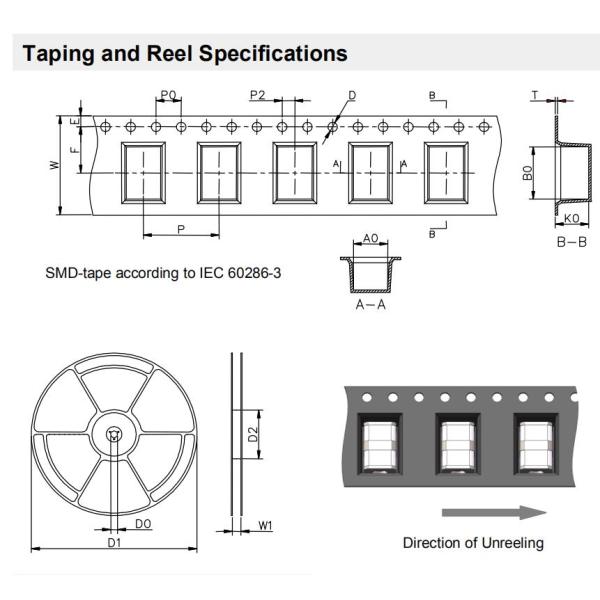

Symbol

Millimeters

Inches

16±0.3

0.630±0.012

5.4±0.1

0.213±0.004

8.4±0.1

0.331±0.004

5.3±0.1

0.209±0.004

12±0.1

0.472±0.004

7.5±0.1

0.295±0.004

1.75±0.1

0.069±0.004

1.5+0.1/-0.0

0.059+0.004/-0.0

4±0.1

0.157±0.004

2±0.1

0.079±0.004

0.4±0.1

0.016±0.004

13.3±0.15

0.524±0.006

330±2

12.992±0.079

100+1/-2

3.937+0.039/-0.079

16.5±0.4

0.65±0.016

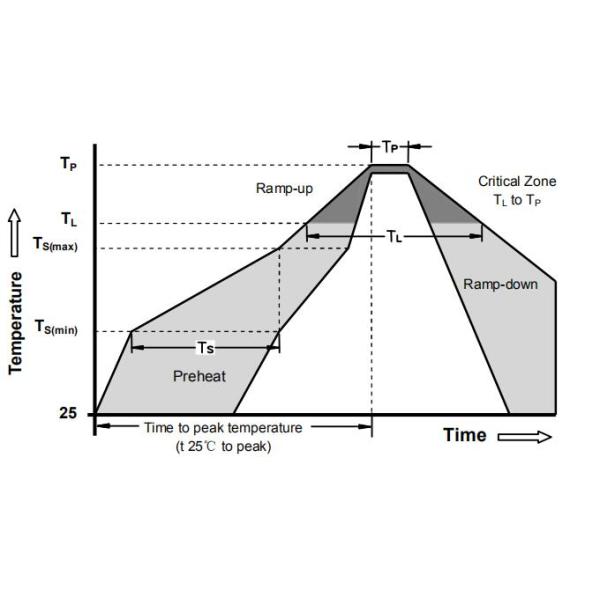

Soldering Parameters - Reflow Soldering (Surface Mount Devices)

Reflow Condition

Pb - Free assembly

Pre Heat

-Temperature Min (Ts(min))

150°C

-Temperature Max (Ts(max))

200°C

- Time (min to max) (ts)

60 -180 Seconds

Average ramp up rate ( Liquids Temp TL) to peak

3°C/second max

TS(max) to TL - Ramp-up Rate

5°C/second max

Reflow

- Temperature (TL) (Liquids)

217°C

- Time (min to max) (ts)

60 -150 Seconds

Peak Temperature (TP)

260 +0/-5°C

Time within 5°C of actual peak Temperature (tp)

10 - 30 Seconds

Ramp-down Rate

6°C/second max

Time 25°C to peak Temperature (TP)

8 minutes Max

Do not exceed

260°C
