Turbine Didactic Equipment Hydrology Trainers Corrosion Resistant

ZM9115 Pelton Turbine Didactic Equipment Hydrology Trainers

Description

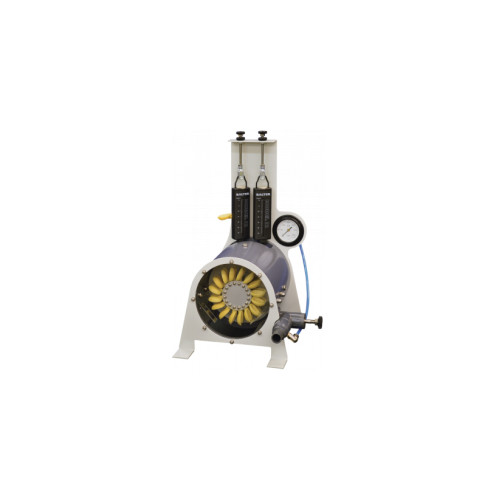

Shows students how an impulse (Pelton) turbine works and tests its performance. The Pelton wheel is an important and effi cient fl uid power machine, used in many applications. The product consists of a Pelton wheel mounted in a corrosion-resistant enclosure. A transparent front panel allows students to see the turbine working. An optional Stroboscope can ‘freeze’ the image of the turbine to help students better understand how it works. An adjustable spear valve directs a jet of water through a nozzle to the buckets of the Pelton wheel to make it turn. Manual adjustment of the spear valve controls the water jet from the nozzle. The turbine includes all pipes and fi ttings to connect it to Digital Hydraulic Bench, for fl ow measurement. The Optical Tachometer measures the speed of rotation of the turbine. A simple mechanical brake and spring balance assembly attached to the shaft of the Pelton wheel applies a variable mechanical load (torque). Students use this with the speed (from the optional tachometer) to fi nd power absorbed by the turbine. A gauge measures inlet pressure.

Students adjust the spear valve and measure inlet pressure, flow rate and torque (and speed with the optional tachometer). They plot these values to find the turbine performance.

Product Details and Warranty

We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.

We supply 3 years warranty time.

Packaging & Delivery

Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.

Training Room Photo

Company Information

We supply professional educational training equipment and technical teaching equipment, which has been widely applied in Engineering Universities, Polytechnics, Technical Institute, Vocational Schools as well as Industry workforce Development Programs and Training Center. Our products allow students to learn and experiment through valuable hands-on experience, and the technology covered by our training equipment provides knowledge, experiments and didactic skills development that are of critical importance to today´s and tomorrow´s careers.

Photo for Clients Visiting Factory

Service

We supply supply7*24 hours service, customer design service, OEM service, buyer label service. With professional engineers team and sales team, we assure you good product quality.

Certificate
Our products takes ISO9001 product management system.

Jinan Should Shine Didactic Equipment Co., Ltd. is company specialized in manufacture and trading Fluid Lab Equipment, air conditioner trainer, refrigeration trainer, Thermal Lab Equipment, Vocational Training Equipment, Didactic Equipment, Engineering Educational Equipment, Technical Teaching Equipment, for university, college, technical institution, polytechnics. Should Shine products has been exported to America, Asia, Europe, Africa,  Australia.

The Factory, Offices and Laboratories are located in Jinan, China but thanks to its international Commercial Organization Should Shine can supply first rate Products and Services to more than 100 countries in the world, Such as Myanmar, Bangladesh, Yemen, Kazakhstan, Saudi Arabia in Asia, Ethiopia; Algeria, Egypt, South Africa, Kenya, Nigeria in Africa; U.K., Russia, France, Bulgaria, Poland in Europe, Canada, USA, Chile, Costa Rica in America, Australia and Zew Zealand in Oceania. Our company goal is let every school in the world use Should Shine products.

The Company has adopted a Quality System since 2012 and now is certified ISO9001.
