| Categories | Outdoor Advertising Billboard |
|---|---|
| Brand Name: | EliteLED |
| Model Number: | P4 P5 P8 P10 |
| Certification: | CE, CCC |
| Place of Origin: | Guangdong, China |
| MOQ: | 1sqm |
| Price: | Negotiable |
| Supply Ability: | 3000sqm/month |
| Delivery Time: | 18 days |
| Packaging Details: | Wooden cases or flight cases |
| Application: | Outdoor Advertising |
| Pixel Pitch: | 5mm, 8mm |
| Brightness: | 7400nits |
| Product name: | P8 Outdoor Led Panel |
| Cabinet size: | Customized |
| LED chip: | Nationstar, Kinglight |
| Control system: | Nova |
| Certificate: | CE ROHS |
| Warranty: | 2 Years |

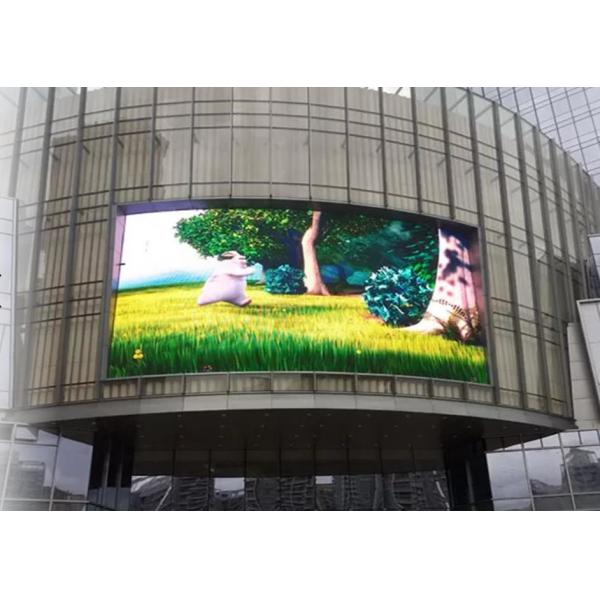

Advertising Outdoor Fixed LED Display Waterproof 6000nits 1920Hz Nova System
Specifictions:
1. Low power consumption, low heat, energy saving and environmental protection.
2. Uniform color, high contrast, the picture is beautiful and natural.
3. Short leading time for fast delivery.
4. Certification:EMC, FCC, IP65
5.. Patent mask design, dust-proof and waterproof, protection level up to IP65.
| LED Screen Information | View Distance | In/meter | 392/10 |
| View Angle (H/V) | Deg. | 140/140 | |
| LED Type | N/A | SMD3535 | |
| Pixel Pitch | Unit | 10 | |
| Brightness | Nits | 6500 | |
Module Dimension(WxH) | In/mm | 12.6x6.3/320x160 | |
Module Pixel(WxH) | Pixel | 32x16 | |

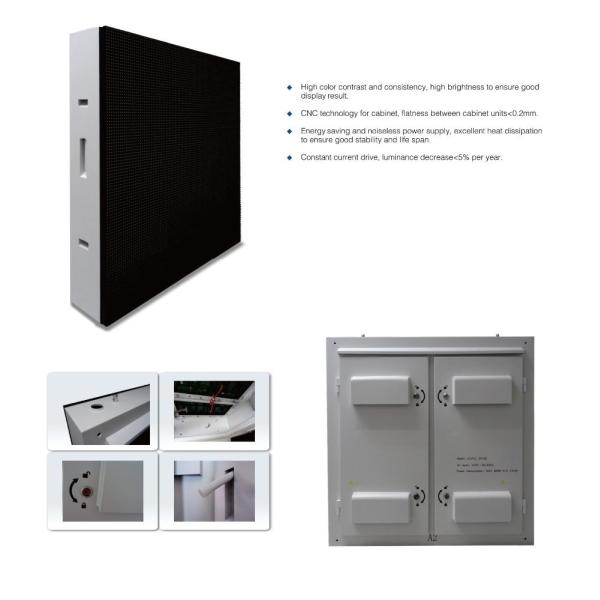

Cabinet Dimension(WxH) | In/mm | 37.8x37.8/960x960 | |
Cabinet Pixel(WxH) | Pixel | 96x96 | |
Cabinet Weight | Kg | 50 | |
Cabinet Material | N/A | Steel | |
Maintenance Way | N/A | Rear | |
| Power Operating | AC Operation | V | AC100~240V 50-6-Hz switchable |
| Power Consumption(Max./Ave.) | W/m2 | 730/220 | |
| Control System | Refresh Rate | Hz | 1920 |
Driving Type | Scan | 1/2 | |
Digital Processing | Bit | 14 | |
Gray Scale | Level | 16384 | |
Support Input | N/A | Composite video,S-video,DVI,HDMI,SDI,HD-SDI | |
Control Distance | Meter | Ethernet cable within 100 meters, Optical fiber within 5KM | |
| Raliability | Ingress Protection | N/A | IP65 front/IP54 back |
| Operating Humidity | RH | 10~95% | |
| Operating Tem. | F/C | -4F~140F/-30~60 | |
| Life Time(50% brightness) | Hour | 100,000 |



About Us:
Shenzhen Eliteled Electronics Co. Limited is a full range
manufacturer and LED display solutions provider and its ancillary
systems worldwide since 2009, headquartered in Shenzhen with a 6,
000m² production state of the art facility to cover international
demands. We provide a one-stop shopping in the design, production,
and distributions of LED displays and solutions for our customers
domestically and globally.
Our products include ranges of indoor, outdoor, fixed, rental and
creative LED Solutions for various applications including sports,
advertisement, concerts, shopping malls, stadiums, exhibitions or
any other indoor and outdoor events that comes to your imagination.
FAQ
Q1: How to choose a proper led screen for your need?
A: You just need to think of 3 simple questions when you choose a led
screen by yourself.
1. Will you use it indoor or outdoor?
2. Is it for rental use(need to be moved from one place to another
place very often) or for fixed installation(to be installed in one
place forever)?
3. what is the appoximate size of the led screen you would like to
purchase?
Q2: Which pixel pitch should i choose?
A: There are many different pixel pitch from 1--10mm, there is a
roughly principle-usually small pixel(1mm-10mm) used for indoor led
screen, bigger pixel (3mm-30mm) used for outdoor led screen(for
example high way huge advertisement).
Q3: Which control system should i choose?
A: There is both synchronous and asynchronous control system for led
screen on the market,for big size led screen(usually more than
20sqm) need to use synchronous control system,below 20sqm it's up
to you to use syn or asyn.But asyn control system's refresh rate is
much lower than sync control system and for asyn control system,
you can choose to use wifi,3G,4G etc wireless control.
|
