| Categories | SKF BEARINGS IN CHINA |
|---|---|

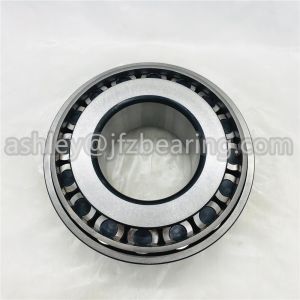

| Brand Name: | SKF |
| Model Number: | 32318 J2 |
| MOQ: | 1 |
| Price: | USD 0.5-10 PCS |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 PCS/MON |
| Delivery Time: | 3-15 DAYS |
| Packaging Details: | Single Box , Industrial Packing |
| Precision rating: | P0 P6 P5 P4 P2 |
| Material: | Chrome Steel |
| Cage: | Steel |
| Package: | Original Package |
| Company Info. |
| JFZ BEARING CO.,LTD |
| View Contact Details |
| Product List |
| d | 90 mm | Bore diameter |
|---|---|---|
| D | 190 mm | Outside diameter |
| T | 67.5 mm | Total bearing width |
| d1 | ≈133.9 mm | Inner ring shoulder diameter |
| B | 64 mm | Width inner ring |
| C | 53 mm | Width outer ring |
| r1,2 | min.4 mm | Corner radius inner ring |
| r3,4 | min.3 mm | Corner radius outer ring |
| a | 44.3 mm | Distance pressure point |
| da | max.109 mm | Abutment diameter shaft |
|---|---|---|
| db | min.105.5 mm | Abutment diameter shaft |
| Da | min.157 mm | Abutment diameter housing |
| Da | max.177.5 mm | Abutment diameter housing |
| Db | min.177 mm | Abutment diameter housing |
| Ca | min.7 mm | Abutment housing - axial space at the large side face/ both sides of the outer ring |
| Cb | min.14.5 mm | Abutment housing - axial space at the small side face/ both sides of the outer ring |
| ra | max.4 mm | Fillet radius |
| rb | max.3 mm | Fillet radius |
| Basic dynamic load rating | C | 487 kN |
|---|---|---|
| Basic static load rating | C0 | 610 kN |
| Fatigue load limit | Pu | 65.5 kN |
| Reference speed | 2 600 r/min | |
| Limiting speed | 3 600 r/min | |
| Calculation factor | e | 0.35 |
| Calculation factor | Y | 1.7 |
| Calculation factor | Y0 | 0.9 |
| Mass bearing | 8.42 kg |
Packing , Payment , Delievry and Stock
| Packaging | |
| 1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet | |
| 2)Industrial Bearings packaging | a)plastic tube + carton + pallet |
| b). plastic bag +kraft paper + carton + pallet | |
| 3)According to the requirement of customers' | |
| Payment | |
| 1) T/T:30% deposit, 70% should be paid before shipment. | |
| 2) L/C at sight. (high bank charge, not suggest, but acceptable ) | |
| 3) 100% Western Union in advance. (especially for air shipment or small amount) | |
| Delivery | |
| 1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient ) | |
| 2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive ) | |
| 3) More than 200 KGS, we will send by sea. ( Cheapest, but long time ) | |
| Stock | |
| 1)Availability and supply capacity on a certain basis | |
|
