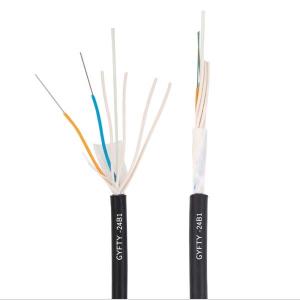

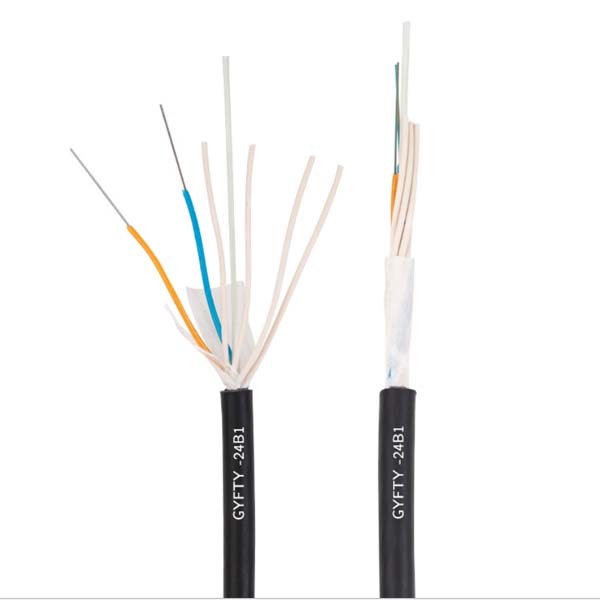

Loose Tube Fiber Optical Cable non-metallic polyethylene sheathed GYFTY

GYFTY Optical Cable Stranded Non-Metallic Optical Cable Pipe Unarmored And Mine Area Special Optical Fiber

▌ Product description

The structure of GYFTY optical cable is that 250μm optical fiber is sheathed in a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. No metal structure, excellent anti-electromagnetic and lightning performance, anti-static

▌ Characteristics

• Using high-quality flame-retardant PE material, environmental protection, safety, and durability; good waterproof and flame-retardant performance, external
• Using high-quality flame-retardant PE material, environmental protection, safety and durability; good waterproof and flame-retardant performance, smooth and bright appearance, uniform thickness. This product will have a certain strength, low thermal deformation, abrasion, water permeability, thermal shrinkage and friction coefficient, at the same time, strong resistance to environmental stress, material processing performance and other characteristics
• Suitable for overhead and pipeline installation with rodent and lightning protection requirements
• Two parallel steel wires ensure tensile strength
• Small diameter, light weight and friendly installation

▌ Features

• Product weight: 80-130Kg/KM
• Stretching strength: 800/3000N
• Flattening force: 800/3000N
• Use environment: -40~60℃

▌ Applications

• Installed in duct, direct burial.
• FTTx.

▌ Fiber Color Code

▌ Cable structure and parameter

Fiber count		2~12	14~24
Max. Cores in tube		12	24
Cable diameter		7.6	8.3
Tensile strength(N)		1500
Crush resistance (N/100mm)	Long term	300
	Short term	1000
Bending radius	Dynamic	20×D
	Static	10×D
Storing temperature		-40°C to +70°C
Operating temperature		-40°C to +70°C

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.40dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500MHz·km	≥200MHz·km
	@1300nm			≥1000MHz·km	≥600MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelengthλcc		≤1260nm	≤1480nm

▌ Structure and Technical Specifications GYXY

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
			Short Term	Long Term	Short Term	Long Term
2~12	6.2	52	1000	400	1000	1000
14~24	7.0	64	1200	500	1000	1000

▌ Structure and Technical Specifications GYFXY(All-Dielectric)

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
			Short Term	Long Term	Short Term	Long Term
2~12	6.2	45	600	250	1000	1000
14~24	7.0	56	800	300	1000	1000

▌ Roduction and Quality Test

▌ Application

▌ Packaging

1. Standard Packaging: Rolled by wooden wooden drums. 2000m to 6000m/drum or other required. 2. Sheath mark: The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required b. Standard Code(Product Type, Fiber Type,Fiber Count) c. Year of manufacture: 7 years d. Length marking in meters.	Our Service: 1. We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience. 2. We accept OEM. The cable size and material are customized. Ur own logo and own design are welcome. We will produce according to your requirment and description; 3. Please send us inquiry for more products info and we will give you feedback in 12 hours.

▌ FAQ
1. Are you the real manufacturer?
Us. We are the real manufacturer with 23 year’s history.
2. What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 10km.
3. What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4. How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6. What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 10% in advance and 90% before shipment.
