Ip65 IK08 Outdoor Led Street Lights Die Cast Aluminum

Ip65 IK08 Outdoor Led Street Lights Die Cast Aluminum

Ip65 IK08 Outdoor Led Street Lights Die Cast Aluminum
Ip65 IK08 Outdoor Led Street Lights Die Cast Aluminum
Categories Outdoor LED Street Lights
Brand Name: DALITE
Model Number: LLDL-901
Certification: CE,CB
Place of Origin: CHANGZHOU CITY CHINA
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 40000sets/month
Delivery Time: 2-6 weeks
Packaging Details: Form + Carton
Warranty: 5 Years Limited
Material: Die-cast aluminum
IP rating: IP65
IInput Voltage: 100 ~ 277Vac
Impact Resistance: IK08
Working Temperature: -40-50℃
Contact Now
Company Info.
JIANGSU DALITE ELECTRICAL TECHNOLOGY CO.,LTD
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

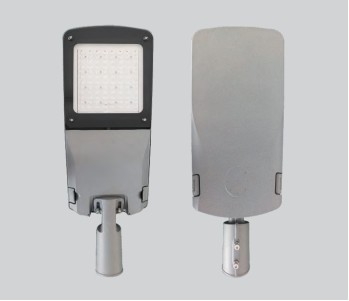

Ip65 IK08 Outdoor Led Street Lights Die Cast Aluminum

Designed for ME1-5 type road, IP 65 Waterproof, LLDL-901,Outdoor LED Street Lights

Code: LLDL-901


A Spec.
LED Street light series is a flexible yet powerful,easy to maintain LED street light lantern. It is a high performance,extremely high efficacy platform that offers different dimming control options. The luminaire is specially designed for ME1-5 type road applications,which ensures excellent visibility for drivers and good comfort for pedestrians.
Applications
Roadway lighting
(Urban roads, residential areas, overpasses…)
Public areas lighting
(Theme parks, squares, parking lots…)
Specifications
Input Voltage:100 ~ 277Vac
Input Frequency:50 / 60Hz
Power Factor (PF):0.95
Surge Protection Level:10kV line-earth
Operating Environment:-40 ~ +50 , 10% ~ 90% RH
Color Temperature (CCT):3000K, 4000K, 5000K, 5700K
Color Rendering Index (CRI):70
Housing:Die-cast Aluminum
IP Rating:IP65
Impact Protection Level:IK08
Adjustable tilt angle side:-15°/ -10°/-5°/ 0°/ 5°/ 10°/ 15°
Finish:RAL9006
Warranty:5 Years Limited
Technical Data
Optical Specifications
Luminous Flux30W50W60W75W100W120W150W180W
4050675081001012513500162002025024300
4200700084001050014000168002100025200
Efficacy135lm/ W@3000K
140lm/ W@4000K/ 5000K/ 5700K
CCT3000K,4000K,5000K,5700K
CRI(Ra)＞70
SDCM＜7
Beam AngleT2S/T3M

Electrical and Mechanical Specifications

Input Voltage100-240V/ 277V AC 50/60Hz
Power Consumption30W-50W60W-75W100W120W-150W-180W
Power Factor＞0.9
Total Harmonic Distortion15%
ESD ProtectionContact 4KV, Air 8KV
Surge Protection*10KV,*20KV
Cover LensPC lens
HousingDie-casting aluminium,RAL9006

System Specifications

PowerAC line
DimmableON/OFF,*time dimming,*1-10V dimming and *PWM dimming
(Time dimming,1-10V dimming and PWM dimming can be customized)
Mounting TypeSide-entry mounting
Installation Height6-15m
Mounting Diameter55mm-60mm
Operating Temperature-30℃ to +50℃
Relative Humidity0 to 93%
Storage Temperature-30℃ to +85℃
EnvironmentOutdoor (IP65)
Lumen MaintenanceL70@25℃- 50,000hrs
Safety ApprovalElectrical Protection Class I,RoHS

Items with * are non-standard items and are available on request.


Dimensions
DimensionsLLDL-901SLLDL-901ALLDL-901BLLDL-901C
L (mm)487.4577627768
W (mm)185.1232.6271.5301
H (mm)101103.5103.5103.5
Weight (KG)3.064.14.96.65
Photometrics
Application Example
