Automatic Hydraulic Press Brake Machine E21 40T 2500MM For Stainless Steel

Categories	Torsion Bar Press Brake
Brand Name:	AOXUANZG
Model Number:	WC67Y-40T/2500
Certification:	CE
Place of Origin:	China
MOQ:	1 set
Price:	$8000-$18946/unit
Payment Terms:	L/C, T/T, Western Union, D/P, D/A
Supply Ability:	500sets/Year
Delivery Time:	20-30 days
Packaging Details:	Standard export packing
System:	E21
Model:	40T 2500MM
Work Length:	2500mm
Throat Depth:	280mm
Stroke:	100mm
Max. Open Height:	320mm
Strokes:	≥20 times/min
Motor:	5.5kw

Contact Now

Add to Cart

Company Info.

Anhui Aoxuan Heavy Industry Machine Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Automatic Hydraulic Press Brake Machine E21 40T 2500MM For Stainless Steel

Automatic Control E21 40T 2500MM Hydraulic Press Brakes For Stainless Steel

Press brake uses the mold (general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet metal processing. It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries.

Technical Parameters:

Model	Nominal pressure (KN)	Worktable Length (mm)	Columns Distance (mm)	Throat	Slider	Max	Main	Dimension
				Depth	Stroke	Open	motor	L x W x H
				(mm)	(mm)	height	Power	(mm)
						(mm)	(KW)
WC67Y/K-30/1600	300	1600	1280	200	80	190	3	1700×900×1650
WC67Y/K-30/2000	300	2000	1280	200	80	190	3	1700×900×1650
WC67Y/K-40/2500	400	2500	1900	280	100	320	5.5	2600×1100×1900
WC67Y/K-63/2500	630	2500	1900	350	170	380	5.5	3100×1450×2050
WC67Y/K-80/3200	800	3200	2700	350	170	380	7.5	3500×1550×2100
WC67Y/K-100/3200	1000	3200	2700	400	200	420	7.5	3500×1580×2400
WC67Y/K-160/3200	1600	3200	2700	400	200	420	11	3500×1650×2550
WC67Y/K-200/3200	2000	3200	2700	400	200	420	15	3500×1680×2550
WC67Y/K-250/3200	2500	3200	2700	400	200	420	15	3500×1700×2600
WC67Y/K-320/3200	3200	3200	2700	400	200	420	22	3500×1800×2730
WC67Y/K-400/4000	4000	4000	3500	500	320	600	30	4300×2450×3500
WC67Y/K-500/5000	5000	5000	3900	500	320	600	37	5400×2810×4300
WC67Y/K-500/6000	5000	6000	4900	500	320	600	37	6500×2810×4300
WC67Y/K-500/7000	5000	7000	4900	500	320	600	37	7500×2810×4900
WC67Y/K-600/5000	6000	5000	3900	500	320	600	45	5500×2910×4900
WC67Y/K-600/6000	6000	6000	4900	500	320	600	45	6500×2910×5100
WC67Y/K-600/7000	6000	7000	5900	500	320	600	45	7500×2910×5200
WC67Y/K-800/6000	8000	6000	4900	600	400	600	55	6500×2750 ×5300
WC67Y/K-800/8000	8000	8000	6900	600	400	600	55	8500×2750×5900
WC67Y/K-1000/6000	10000	6000	4900	600	400	600	2×37	6500×2800×5600
WC67Y/K-1000/8000	10000	8000	6900	600	400	600	2×37	8500×2800×6100
WC67Y/K-1000/10000	10000	10000	8000	600	400	600	2×37	10500×2800×5850
WC67Y/K-1200/6000	12000	6000	4900	600	400	800	2×37	6500×3100×5850
WC67Y/K-1200/8000	12000	8000	6900	600	400	800	2×37	8500×3100×7150

Details:

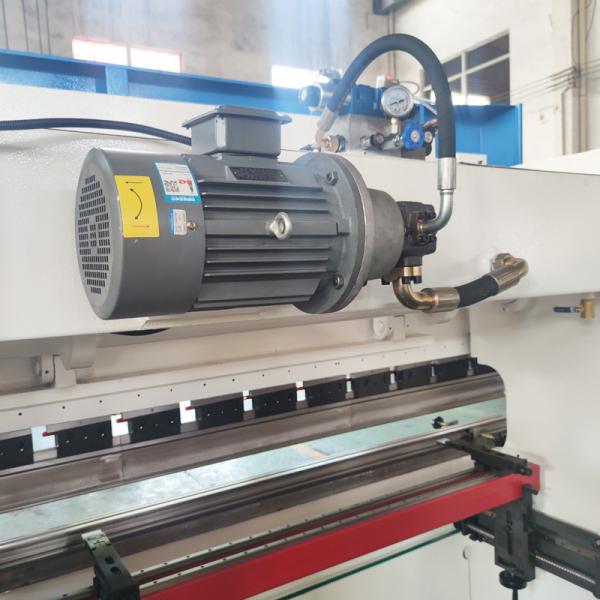

Siemens Motor

German famous brand motor improves the lifespan of the machine and
keeps the machine working in low noise environment

Press Brake Tooling

Press Brake toolings are made from 40CrMo Materials with hardness
up to 52 degrees to ensuring die service life

For more information, please contact me (^o^)/~

Product Tags:

40T Hydraulic Press Brake Machine

E21 Hydraulic Press Brake Machine

2500MM Automatic Press Brake

Automatic Hydraulic Press Brake Machine E21 40T 2500MM For Stainless Steel
