40T 1200MM NC Torsion Bar Small Hydraulic Press Brake With E21 Controller

Categories Torsion Bar Press Brake
Brand Name: AOXUANZG
Model Number: WC67Y-40T/2500
Certification: CE
Place of Origin: China
MOQ: 1 set
Price: $5000-$7385/unit
Payment Terms: L/C, T/T, Western Union, D/P, D/A
Supply Ability: 500sets/Year
Delivery Time: 20-30 days
Packaging Details: Standard export packing
Control System: Estun E21
Machine Type: Hydrualic press brake
Model: 40T 1200mm
Throat Depth: 280mm
RAM Stroke: 100mm
Max. Open Height: 320mm
Main Motor: 5.5kw
Weight: 2.5T
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

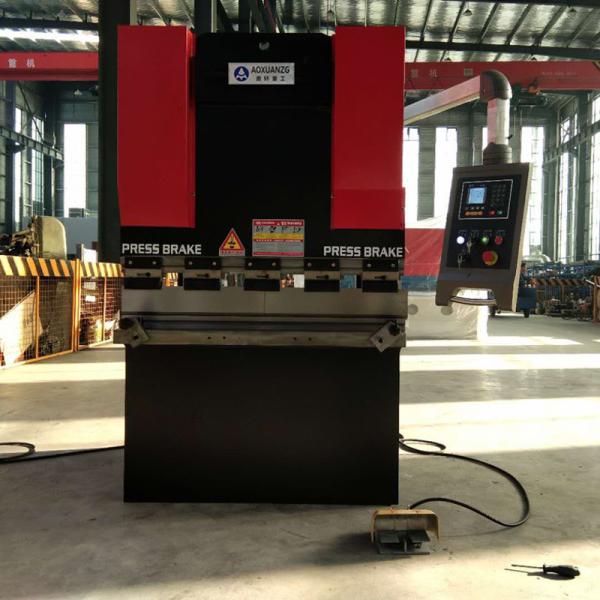

40T 1200MM NC Torsion Bar Small Hydraulic Press Brake With E21 Controller

Hot sale 40T 1200MM NC Torsion Bar Small Hydraulic Press Brake With E21

Press brake is a kind of machine specially in bending plate, mainly used in automotive manufacturing, kitchen appliance manufacturing, electricity poles, lamp posts, ship-building, military industry, steel industry, mechanical manufacturing. Bending dies can be designed and changed according to customers' different needs.

Main types of press brake produced by our company are: manual torsion, CNC torsion press brake, electro-hydraulic press brake, large electro-hydraulic synchronization press brake Currently, our biggest press brake equipment is 1000T/10000, production for many years, and stable performance.

Technical Parameters:

ModelNominal pressure (KN)Worktable Length (mm)Columns Distance (mm)ThroatSliderMaxMainDimension
DepthStrokeOpenmotorL x W x H
(mm)(mm)heightPower(mm)
(mm)(KW)
WC67Y/K-30/1600300160012802008019031700×900×1650
WC67Y/K-30/2000300200012802008019031700×900×1650
WC67Y/K-40/2500400250019002801003205.52600×1100×1900
WC67Y/K-63/2500630250019003501703805.53100×1450×2050
WC67Y/K-80/3200800320027003501703807.53500×1550×2100
WC67Y/K-100/32001000320027004002004207.53500×1580×2400
WC67Y/K-160/3200160032002700400200420113500×1650×2550
WC67Y/K-200/3200200032002700400200420153500×1680×2550
WC67Y/K-250/3200250032002700400200420153500×1700×2600
WC67Y/K-320/3200320032002700400200420223500×1800×2730
WC67Y/K-400/4000400040003500500320600304300×2450×3500
WC67Y/K-500/5000500050003900500320600375400×2810×4300
WC67Y/K-500/6000500060004900500320600376500×2810×4300
WC67Y/K-500/7000500070004900500320600377500×2810×4900
WC67Y/K-600/5000600050003900500320600455500×2910×4900
WC67Y/K-600/6000600060004900500320600456500×2910×5100
WC67Y/K-600/7000600070005900500320600457500×2910×5200
WC67Y/K-800/6000800060004900600400600556500×2750 ×5300
WC67Y/K-800/8000800080006900600400600558500×2750×5900
WC67Y/K-1000/600010000600049006004006002×376500×2800×5600
WC67Y/K-1000/800010000800069006004006002×378500×2800×6100
WC67Y/K-1000/10000100001000080006004006002×3710500×2800×5850
WC67Y/K-1200/600012000600049006004008002×376500×3100×5850
WC67Y/K-1200/800012000800069006004008002×378500×3100×7150

Main Features:


1-- Special numeric-control system is fitted with mainframe of the bending machine.
2-- Multi-work-stop programming function is able to achieve an automatic operation and continues positing of multi-step procedures, as well as an automatic precision adjustment for positions of rear stopper and gliding block.
3-- The machine is provided with bend counting function, for a real-time display of processing quantity and power-failure memory of positions od stopper and gliding block, as well prccedures and paremeters.
4-- Imported ball bearing lead screw and linear guide rail are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.
