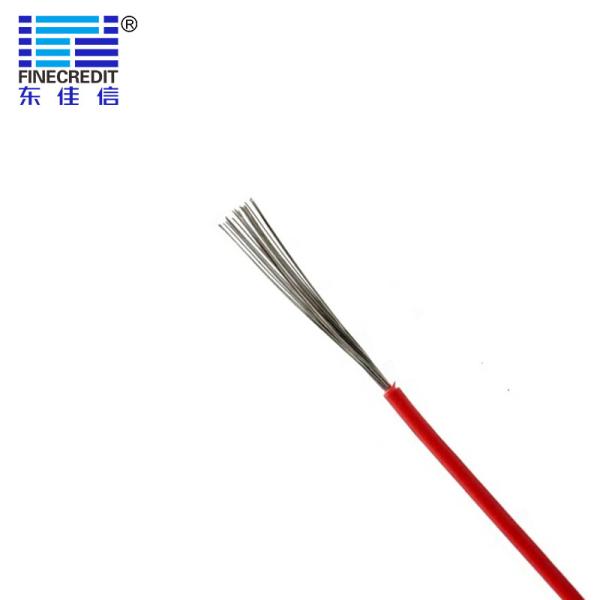

Name: 28 10 AWG Household Electrical Cable Bare Copper Conductor
Brand: JIAXIN
Price: 1 USD

Home > EL Products >

28 - 10 AWG Household Electrical Cable Bare Copper Conductor

Categories	Household Electrical Cable
Brand Name:	JIAXIN
Model Number:	AWM 1015
Certification:	UL/CUL
Place of Origin:	CHINA
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	100KM/Week
Delivery Time:	7-15 working days
Packaging Details:	Steel wooden drum
Approval::	UL/ROSH
Core Conductor：:	Stranded annealed flexible conductor
Insulation:	Flame-retardant PVC
Sizes::	28~4/0
Flame-retardant：:	VW - 1 / FT1
Package Type::	Packed in roll
Rated Votage:	600V

Contact Now

Add to Cart

Company Info.

SHENZHEN DONGJIAXIN WIRE&CABLE CO.,LTD

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

▼ Bare Copper Conductor 28 - 10 AWG PVC UL1015 Hook - up Wire

Packaging	Delivery
305 meters per roll or as customer's requiremen	Port:Shenzhen,Hongkong,Guangzhou

1. Rated temperature: 105 °C

2. Rated voltage: 600V

3. Solid or stranded, tinned or bare copper conductor 30AWG-2000 kcmil

4. PVC insulation

5. Passes VW-1 & FT1 Vertical flame test

6. Uniform insulation thickness of wire to ensure easy stripping and cutting

A. Environmental testing pass RoHS

B. UL/CUL

Application:

Household appliance, Illumination & Lighting & Headlamp, electric machines, temperature sensor, Military Serie

Advantage:

a. Excellent resistance to oil, corrosives, UV etc.

b. Flexible, conviniently to assemble

More Details:

Designation	AWG	No./Wire	Conductor Diameter	DCR @ 20℃	Insulated Thickness	Minimum insulation thickness	Insulation Diameter	Capacity in air @ 25℃
AWM 1015	28	7/0.127	0.38	239	0.76	0.69	2.00±0.10	3
AWM 1015	26	7/0.16	0.46	150	0.76	0.69	2.10±0.10	4
AWM 1015	24	11/0.16	0.61	94.2	0.76	0.69	2.20±0.10	7
AWM 1015	22	17/0.16	0.76	55.4	0.76	0.69	2.35±0.15	9
AWM 1015	20	26/0.16	0.93	34.6	0.76	0.69	2.60±0.15	12
AWM 1015	18	41/0.16	1.18	21.8	0.76	0.69	2.80±0.15	15
AWM 1015	16	26/0.254	1.49	13.7	0.76	0.69	3.10±0.15	21
AWM 1015	14	41/0.254	1.86	8.62	0.76	0.70	3.50±0.15	27
AWM 1015	12	65/0.254	2.34	5.43	0.76	0.71	4.00±0.15	37
AWM 1015	11	83/0.254	2.67	4.3	0.76	0.69	4.30±0.15	43
AWM 1015	10	105/0.254	3.1	3.41	0.76	0.69	4.60±0.20	50
AWM 1015	9	133/0.254	3.81	2.71	0.76	0.69	5.35±0.20	63.0
AWM 1015	8	168/0.254	4.00	2.14	1.14	1.04	6.60±0.25	74.7
AWM 1015	7	133/0.321	4.83	1.7	1.14	1.04	7.20±0.25	85.5
AWM 1015	6	266/0.254	5.43	1.35	1.53	1.37	8.50±0.25	99.0
AWM 1015	5	336/0.254	6.09	1.07	1.53	1.37	9.20±0.25	117.0
AWM 1015	4	420/0.254	6.80	0.85	1.53	1.37	10.00±0.30	135.0
AWM 1015	3	532/0.254	7.10	0.67	1.53	1.37	10.50±0.30	153.0
AWM 1015	2	665/0.254	8.60	0.53	1.53	1.37	11.8±0.30	180.0
AWM 1015	1	836/0.254	9.60	0.42	2.1	1.83	13.50±0.40	207.0
AWM 1015	1/0	1045/0.254	10.85	0.34	2.1	1.83	14.40±0.50	243.0
AWM 1015	2/0	1330/0.254	12.30	0.266	2.1	1.83	16.40±0.50	288.0
AWM 1015	3/0	418/0.51	13.80	0.2194	2.1	1.83	18.00±0.50	333.0
AWM 1015	4/0	525/0.51	15.55	0.1722	2.1	1.83	19.80±0.50	387.0

Testing process

▼ Delivery Port :


Port of Shenzhen	Port of Hongkong	Port of Guangzhou
