Sinotruk Howo 12m3 Used Concrete Mixer Truck 6x4 LHD 336HP

Categories Used Howo Trucks
Brand Name: HOWO
Model Number: ZZ1257N3841W
Certification: CCC, ISO, CE
Place of Origin: CHINA
MOQ: 1 unit
Price: $14000/unit-$18000/unit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30units per month
Delivery Time: 10-15 working days
Packaging Details: Nude, Waxing before delivery
Product Name: Used Concrete Mixer Truck
Drive Type: 6x4
Engine: WD615.69
Dum Mixing Capacity: 12 Cubic Meters
Speed Reducer: Bonfiglioli(Italy brand)
Tyre: 12.00R20
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

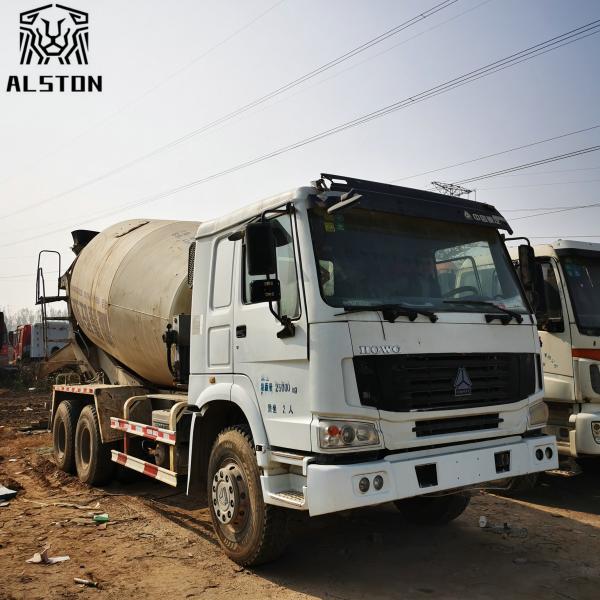

Sinotruk Howo 12m3 Used Concrete Mixer Truck 6x4 LHD 336HP

Sinotruk Howo 6x4 LHD 336hp Used 12 Cubic Meters Concrete Mixer Truck

Used Concrete Mixer Truck Advantages:

Sinotruck howo concrete mixer truck produced by adopting Germany's proprietary technology.


Used concrete mixer truck material requirements, production process, acceptance criteria, all adopt the technology provided by the German standards.


Howo concrete mixer trucks use the imported reducer, motor and hydraulic pump. Dynamic force output by the second class chassis full power take off through the shaft power to the hydraulic pump, hydraulic pump produces hydraulic energy through tubing to the hydraulic motor, hydraulic motor to convert hydraulic energy into kinetic energy and through reducer then reduce and increase twist to the mixing tank, by adjusting the (double acting variable) servo controller of hydraulic pump angle so as to realize controlling turning and speed of mixing drum, then to realize the concrete charging, stir and discharging operation.

USED HOWO TRUCKS PARAMETERS

Chassis modelZZ1257N3841W (Overall dimension: 8560x2496x3800mm)
EngineWD615.47, 371hp, Euro II, In-line, six cylinders, two valves, supercharging inter-cooling, rear supercharger Displacement is 9.726L. Diesel fuel type, Max. Torque is 1350/1300-1600Nm/rpm.
CabinHW76, one sleeper, two seats with air-conditioner, safety belts with double locking mechanism, new face, exterior sun visor, equipped with high position metal bumper.
Clutch∮430 diaphragm spring clutch, hydraulic control air power assisted.
TransmissionHW19710, 10 F and 2 R, manual type. Max.torque: 1390N.m
Drive AxleHC16, double reduction (central reduction+hub reduction), speed ratio:standard 5.73, optional 4.8.
Front AxleHF9, 9ton, drum brake
ChassisFrame: U-profile parallel ladder frame with section of 300x80x8mm and reinforced sub-frame, all cold riveted cross member, Equipped with HW50 PTO
Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorber and stabilizer
Rear suspension: semi-elliptic leaf springs and bogie springs, spare wheel
Fuel tank: 300 L capacity, with locking fuel cap
SteeringZF8118, hydraulic steering with power assistance, LHD
Brake systemService brake: dual circuit pneumatic brake, Parking brake:energy storage spring cutoff brake.Optional ABS and automatic slack adjust.
Tyre12.00R20 Radial plus one spare tyre (11 units)
Mixing TankEffective tank volume is 10m3, speed of mixing barrel is 0-16r/min, mixing obliquity is 10°,capacity of water tank is 400L, Max. Dimension of hopper is 980mm
Other SpecificationWith Italian brand Bonfiglioli reduction gears, America brand Eton oil pump and motor

Flat Rack Container Bulk Ship Ro-Ro Ship



After Refurbishment
