60T 100T 4 Axle Gooseneck Lowboy Trailer

Categories Lowbed Semi Trailer
Brand Name: ALSTON
Model Number: ATM3316LBT
Certification: CCC, ISO, CE
Place of Origin: CHINA
MOQ: 1 unit
Price: $12000/unit-$18000/unit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 units per month
Delivery Time: 15-30 working days
Packaging Details: Nude, Waxing before delivery
Product Name: Lowbed Semi Trailer
Type: Truck Trailer
Landing Gear: JOST brand Two Speed
Tyre: 12R22.5
Dimension: 13000x3000x1650mm
Loading Weight: 60-100 Tons
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

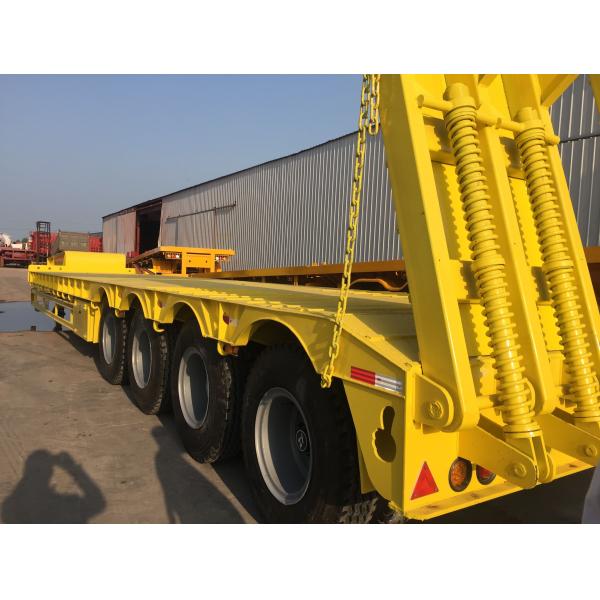

60T 100T 4 Axle Gooseneck Lowboy Trailer

Low Platform 60-100 Tons 3 4 Axles Gooseneck Lowboy Lowbed Semi Trailer

Lowbed Semi Trailer Features:

4 axle lowbed semi trailer is usually used to transport heavy tractors, buses, special vehicles, rail vehicles,

mining machinery, forestry machinery, engineering machinery, such as excavators, bulldozers, loaders,

cranes, etc. and other heavy goods. The center of gravity is lower, there will be more stability and safety.

When loading mechanical equipment onto a lowbed trailer, it is usually loaded from the rear end of the

semi trailer, by moving the mechanical equipment from the rear wheel shelf or by removing the wheels,

and then fixing the mechanical equipment to the lowbed trailer.


Our 4 axle lowbed semi trailer is made of high quality steel, advanced technology and strict production process.

The structure of lowbed trailer is reasonable, the performance is reliable, the operation is simple and the

appearance is beautiful. We design thicken gooseneck to ensure the trailer long life service for your transport business.


4 axle lowbed semi trailer can load 40-100tons heavy duty. Customized loading deck dimension depends on

your transport demand. Heavy axles, thicken suspension and durable tires suit for rough road conditions in Africa.


LOWBED SEMI TRAILER SPECIFICATIONS

Dimension and Weight
Overall Dimension(mm)13000x3000x1650mm
Working Deck Dimension(mm)9000x3000x1350mm
Platform thickness(mm)4mm Diamond Plate
Main Beam“H”main beam design,Q345B carbon steel,
the height of the beam is 500 mm,
upper plate is 16mm,down plate is 18mm, middle plate is 10 mm.
Wheelbase7,650mm+1,310mm+1,310mm+1,310mm
Payload60,000kg
Tare weight9,000kg
G.V.W.R.69,000kg
FunctionTo transport bulk goods or heavy equipment like loader or excavator
Running System
Axle13Ton, ZY brand optional FUWA brand,
one hundred fifty thousand Kilometers no need maintenance
Axle NumberFour
Tire11.00R20, 16 pcs Taitong brand
Rim8.0*22.5 steel disc wheel, 10 holes ISO, 16 pcs
Suspension systemCommon Mechanical Suspension
Steel Spring10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Electrical SystemChinese standard 24V lighting system
Brake system:Dual line pneumatic brake, SAE hose and connector,optional ABS
Brake air chamber8 units T30/30 spring brake chambers
Emergency relay valveWabco relay valve
Traction/King Pin2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster
Landing GearZhenhua brand 28ton external two speed telescopic manual operation. 2,500mm behind the kingpin location

Container

Ro-Ro Ship

Bulk Ship



PRODUCTION
