| Categories | Solar Battery Storage System |
|---|---|
| Brand Name: | CTS |
| Model Number: | CTS-24200 |
| Certification: | CE |
| Place of Origin: | Hunan,China |
| MOQ: | 5 unit |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 units per month |
| Delivery Time: | 15-20 working days |
| Packaging Details: | Wooden case and Carton case |
| Dimension: | 515*434.5*199mm |
| Weight: | 24kg |
| Peak output power: | 4000 Watt |
| Continuous output power: | 2000 Watt |
| Output voltage: | AC pure sine wave 220V/50HZ or 110V60HZ |
| Battery capacity: | 25.6V 200Ah (5120Wh) |
| Charging time: | About 5 hours |
| Charging current: | 0.5C |
| Company Info. |
| Hunan CTS Technology Co,.ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Solar Battery 24V 200Ah, 24V 200AH 250AH 500AH Lifepo4 Battery, 24V 50AH 100AH Lithium Battery
Features:
1. Big storage power bank with long stand-by time.
2. Provide 24V/48V DC output.
3. Provide 110V/220VAC output.
4. Delicate portable housing.
5. Short circuit/ Over current/Over voltage/Over temperature
protection.
6. Multiple charging methods.
Specifications:
| 25.2V 200Ah lithium NMC battery pack | ||
| Mechanical | Cell & Method | NMC/ Li(NiCoMn)O2, 7S5P |
| Dimension(L*W*H) | 300 x 245 x 200 mm | |
| Weight | 30KG | |
| Electrical Characteristics | Rated Capacity | 200Ah |
| Min Capacity | 200Ah | |
| High Rate Discharge Capacity | ＞ 90% Rated Capacity | |
| Discharge Capacity @ -20℃(-4℉) | ＞ 70% Rated Capacity | |
| Norminal Voltage | 25.2V | |
| Energy | 5040Wh | |
| Internal Impedance(@ 1000Hz.) | ≤25 mΩ | |
| Cycle Life | ＞8000 Cycles @ 0.5C 80% DOD | |
| Months Self Discharge | ≤ 5% @ 25℃(77℉) | |
| Efficiency of Charge | 100% @ 1/3C | |
| Efficiency of Disharge | 95% @1C | |
| Standard Charge | Max Charge Voltage | 29.4V |
| Charge Current | 1/2C, 100A | |
| Max Charge Current | 200A | |
| Standard Discharge | Standard discharge Current | 200A |
| Max Discharge Current | 3C, 600A | |
| Discharge Cut-off Voltage | 19.25V | |
| Environmental | Charge Temperature | 0 ℃ to 45℃(32℉ to 113℉) @ 65±20%Relative Humidity |
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @ 65±20%Relative Humidity | |
| Storage Temperature | ≤ 1 Month, -20℃ to 60℃(-4℉ to 140℉) @ 65±20%Relative Humidity | |
| ≤ 6 Month, -20℃ to 30℃(-4℉ to 80℉) @ 65±20%Relative Humidity | ||

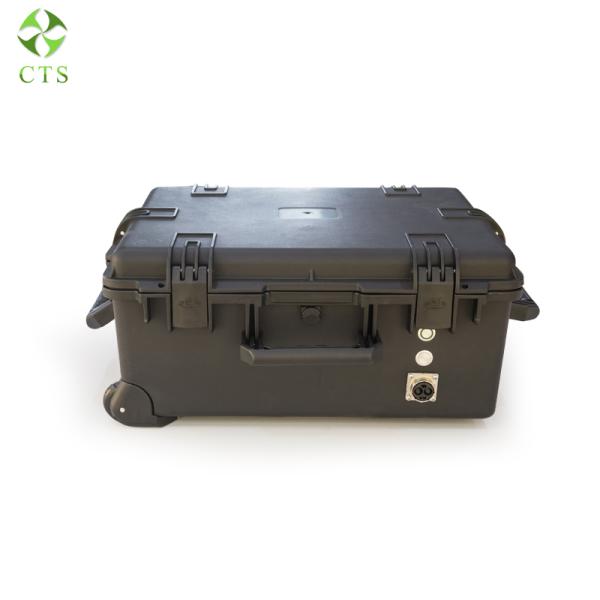

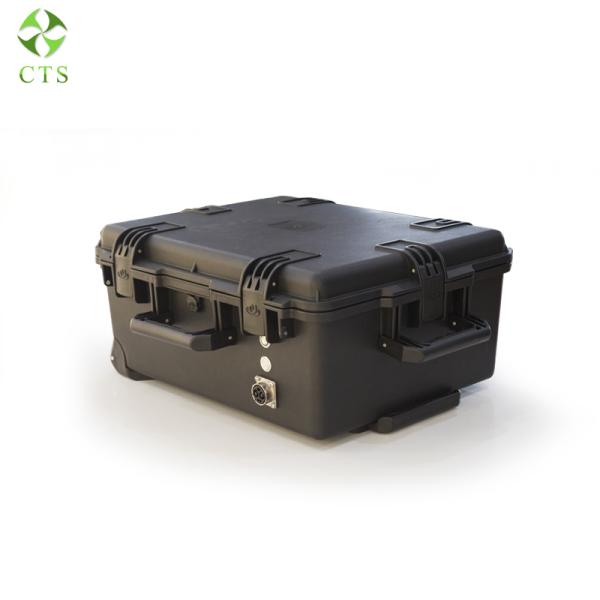

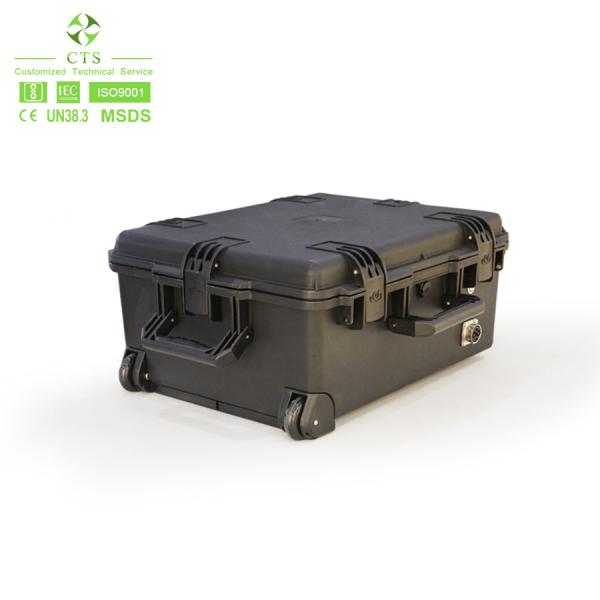

Pictures:
FAQ:
1): Are you manufacturer or simply trading company?
Re: We are manufacturer, and we sincerely welcome you to visit our
factory!
2): Can I get a lower price if I order large quantities?
Re: Yes, cheaper prices with more bigger size orders.
3): Do you offer charger for battery?
Re: Yes, we do. If you also need charger, please mention it when
sending inquiry, kindly note that our charger cost is not included
in the battery cost.
4): How about your company intelligence?
Re: ISO9001 certification, China Hi-tech company, 10 million
battery assurance, 8 patents, Almost all products are MSDS, UN38.3,
IEC62133, CB,etc certificated.
5): When you ship my order?
Re: Normally 5-10days after receiving your payment, but it can be
negotiated based on order qty and production schedule.
6): How about the quality guarantee period?
Re: Two year!
|
