| Categories | Metal Pall Ring |
|---|---|
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 0.01 cubic meters |
| Price: | negociation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 99 cubic meters per month |
| Delivery Time: | 5-9 days |
| Packaging Details: | carton, bag, pallet |

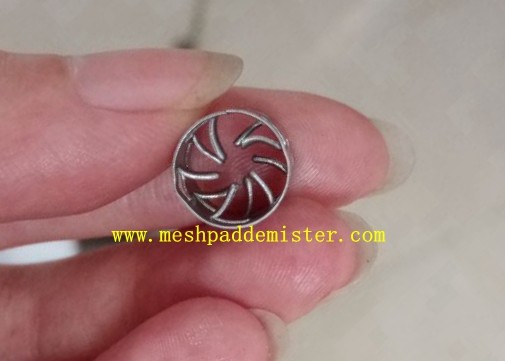

| Product name: | metal pall ring |
| Material: | SS316L stainless steel |
| equal inch type: | 1in, 2in, 3in, other |
| wall thickness: | 0.5mm |
| Model number: | HL20211012-10 |
| Material certificate: | Yes |
| data sheet: | available |
| OEM: | Yes |
| Usage: | Tower packing Absorption |
| Application: | Industry,absorption |
| Company Info. |
| Beijing Silk Road Enterprise Management Services Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
| 1 | Metal pall packing is made of carbon steel,stainless steel, aluminum or other materials. |
| 2 | The product has features such as thin wall, heat resistant,high free volume, high capacity, low resistance, high separation efficiency and so on. |
| 3 | It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc. |
50mm (2 inch) size pall ring specifications:
| 50mm Pall Rings | ||
| Free Space (%) | 96 |  |
| Specific Surface Area (m2/m3) 100 | ||
| No. Per Unit Volume (m3 ) | 6,000 | |
| Packing Factor (m-1) | 107 | |
Specific Weight (kg/m3) 196 – 354 Stainless Steel | ||
| Dimensions (mm) | 50 x 50 | |
| Thickness (mm) | 0.5 – 0.9 | |
| Normal Material stainless steel 304, 316L | ||
Technical Data of smaller sizes of metal pall rings:
| 16mm Pall Rings | ||
| Free Space (%) | 93 | |
| Specific Surface Area (m2/m3) 316 | ||
| No. Per Unit Volume (m3 ) | 210,000 | |
| Packing Factor (m-1) | 315 | |
Specific Weight (kg/m3) 400 – 535 Stainless Steel | ||
| Dimensions (mm) | 16 x 16 | |
| Thickness (mm) | 0.3 – 0.4 | |
| Normal Material stainless steel 304, 316L | ||
| 25mm Pall Rings | ||
| Free Space (%) | 94 | |
| Specific Surface Area (m2/m3) 209 | ||
| No. Per Unit Volume (m3 ) | 49,500 | |
| Packing Factor (m-1) | 176 | |
Specific Weight (kg/m3) 322 – 644 Stainless Steel | ||
| Dimensions (mm) | 25 x 25 | |
| Thickness (mm) | 0.4 – 0.8 | |
| 38mm Pall Rings | ||
| Free Space (%) | 95 | |
| Specific Surface Area (m2/m3) 122 | ||
| No. Per Unit Volume (m3 ) | 13,450 | |
| Packing Factor (m-1) | 107 | |
Specific Weight (kg/m3) 200 – 400 Stainless Steel | ||
| Dimensions (mm) | 38 x 38 | |
| Thickness (mm) | 0.4 – 0.8 | |
| Normal Material stainless steel 304, 316L | ||
Easily wettable
High resistance to fouling
High temperature endurable
High temperature applications
HIGH MECHANICAL STRENGTH
High capacity with low pressure drop
Mechanically robust, lesser probability of breakage
Good liquid/gas distribution and high mass transfer efficiency
| Packing and Shipment |
| Plastic bag, Jumbo Bag, Wooden Case, Carton Box, On Pallet With PP Film Wrapped |
|
