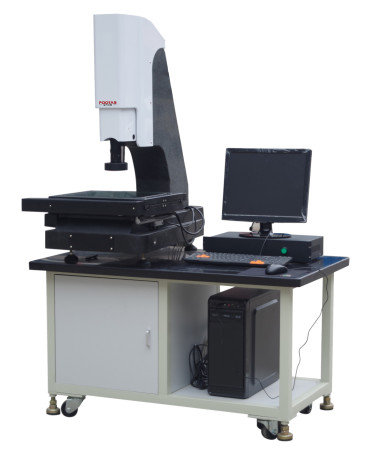

X 300mm Y 200mm PT-MC3020 Automatic Image Testing Machine

The automatic image testing machine is an artificial intelligence modern optical non-contact measuring instrument developed on the basis of the digital image measuring instrument. It inherits the excellent motion accuracy and motion control performance of digital instruments, combines the design flexibility of machine software, and belongs to today's cutting-edge optical size inspection equipment.

Specification:

Application software part:

• basic skills:

1. Measurement and evaluation of geometric elements:

1) Flexible positioning: alignment, rotation, zero setting, translation and storage and retrieval of the coordinate system.

2) Geometric element measurement and evaluation: point, straight line, plane, circle, ellipse, intersection, distance, symmetry, vertical, included angle.

3) Evaluation of form and position errors: straightness, flatness, and roundness.

4) Evaluation of position errors: parallelism, perpendicularity, inclination, concentricity (concentricity), symmetry, position degree, end face beating, full beating.

2. It can automatically program and measure to improve work efficiency.

3. Save and print measurement results and measurement reports. The output format of the measurement report is DXF, Word, Excel, TX, etc.

4. Window operating system, Chinese operation interface; mutual conversion between Chinese and English.

5. Optional Renishaw or TESA contact probe to achieve three-dimensional size measurement; and laser non-contact probe, instant measurement, fast and accurate measurement of flatness, size measurement, thickness, warpage, blind hole and counterbore measurement.

(2) Macro measurement function

The macro measurement function is to associate some measurement and construction commands to a button. Click the button to start the macro measurement function. The macro measurement function will automatically complete the construction action, reducing the number of times the user operates the mouse and improving work efficiency.

It should be noted that: Macro measurement is different from the user program function. Macro measurement does not record the measurement status of light source, coordinate position, etc. When running the macro measurement function, the workbench will not be moved, lighting, etc. The software provides 16 groups of macro measurement functions, and users can edit the icons of the macro measurement function buttons by themselves. The interface of the macro measurement function is as follows:
