EN Standard Z Type Steel Sheet Piles for Quaywalls

Z-type Sheet Piles

Z-shaped sheet piles are called Zs because the single piles are shaped roughly like a horizontally stretched Z. The interlocks are located as far away from the neutral axis as possible to ensure good shear transmission and increase the strength-to-weight ratio. Z piles are the most common type of sheet pile and can be used in a wide variety of applications.

Features and advantages

*Extremely competitive section modulus/mass relation,
*Lighter than U-piles when comparing sections with equivalent properties,
*Increased inertia and thus reduced deflection allowing the choice of high yield strength steels for the most economical solution,
*Large width resulting in high installation performance and enhanced watertightness.

Steel Grade: S275,S355,S390,S430,SY295,SY390, etc.

Standard : EN10248, ASTM A-328,JIS A 5523 , JIS A 5528

Width: 580mm,630mm,675mm,700mm,750mm,770mm,800mm,850mm or customized

Height: 250mm, 300mm,,350,400mm, 420mm,460mm,500mm,540mm,580mm or customized

Thickness: 5mm,6mm,7mm,8mm,8.5mm,9mm,9.5mm,10mm,10.5mm,11mm,11.5mm,12mm,12.5mm,

13mm,13.5mm,14mm,15mm,16mm or customized

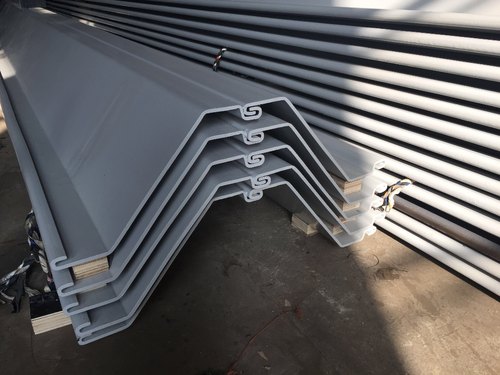

Detailed Product Images

Applications

Z-type steel sheet piles applications include (but not limited to) port and harbour structures, river revetments, retaining walls, cutoff walls, slope protection, cofferdams,barrier walls and bulkhead walls for ports.
