Steel Tape Armoured Hybrid Optical Fiber Cable / Pipeline Fiber Optic Cable 2km/roll

Hybrid Optical And Electrical Fiber Optic Cable With Corrugated Steel Tape Armour​

Hybrid Fiber optic cable with Power wires, that means in a single cable fiber cable and power wire in one bundle. It not only supply fiber optic data transmission, also same time can achive the goal for power supply. Hybrid cable, a single cable, therefore reducing the overall cost and lead time for installation.

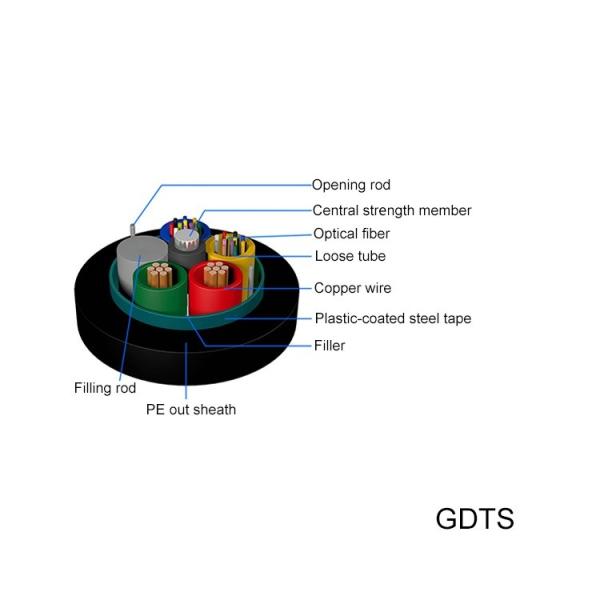

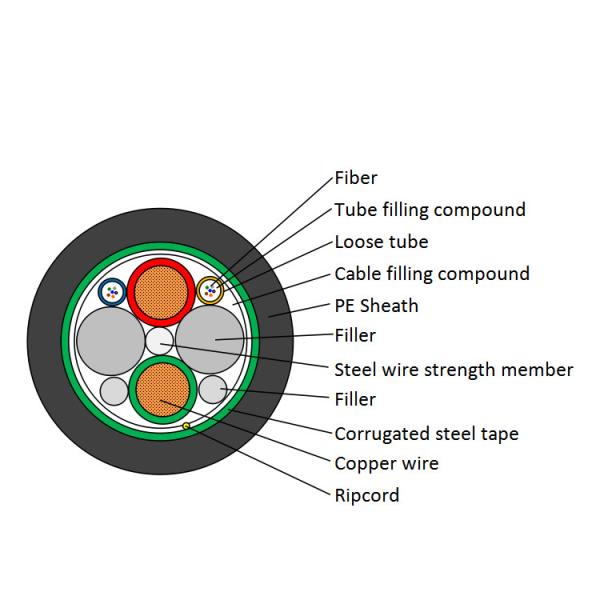

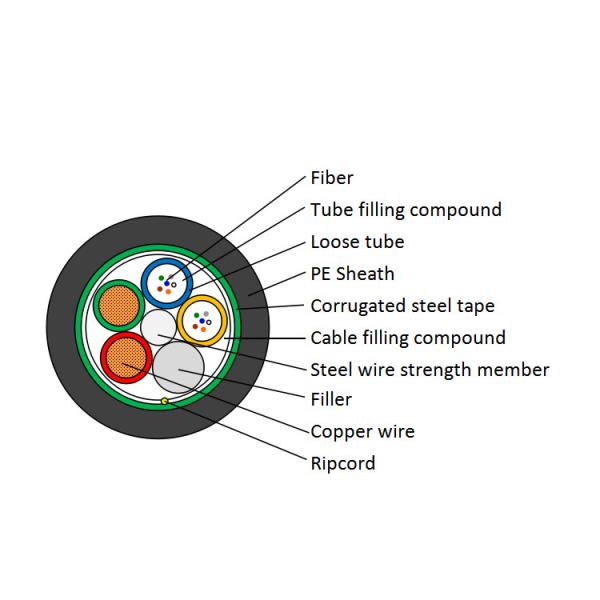

Cable Structure:
The optical fibres are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. In the center of cable is a metallic strength member. The tubes and copper wires (of required specifications) are stranded around the central strength member to form a cable core. The core is filled with cable filling compound and armored with corrugated steel tape. Then, a PE sheath is extruded.

Fiber core number and fiber type:
The number of fiber cores can be selected from 2 to 144.
There are the following optical fiber options:
1, Single mode optical fiber G.652.D(or G.652.B) ,G.655;
2, Multi mode optical fiber 50/125μm or 62.5/125μm,OM1 OM2 OM3 OM4 optional.
You can choose to use hybrid fiber according to the actual situation, such as the hybrid use of G.652.D and G.655 fiber.

Application:
1: Security Camereas
2: Optical Network Terminals
3: Emergency Phones
4: Wi-Fi Access Points
5: Base stateion

Notes:

1.2*1.5/2*2.5/2*4.0/2*6.0 is the number of specification of the conductor.
2.Different conductor specification can be make as required.
3.Different Fiber specification can be make as required.
