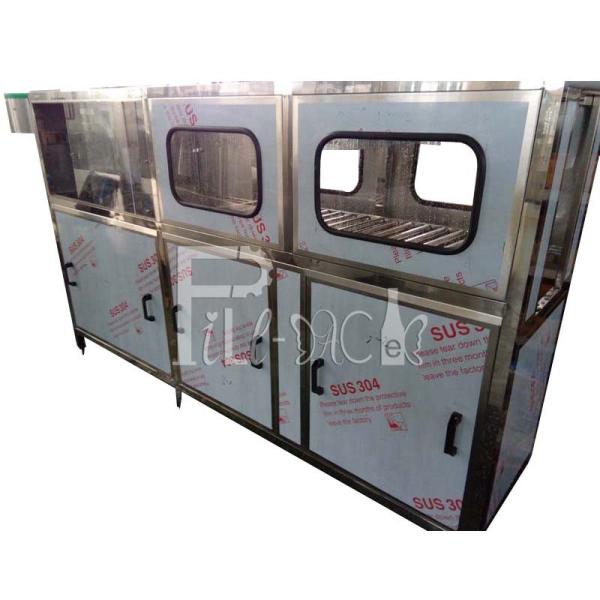

Stainless Steel 304 Gallon Filling Machine CE ISO9001

Monoblock rinser-filler-capper with full SUS304

Principle:

This machine is integrated with jar washing-filling-capping functions together;

Worker loads empty jar on jar holder manually, the jar holder with jar will be transferred in advance for jar washing, the transmission force is by gear cylinder;

Washing will be devided into 3 parts, 1st process is by disinfectant fluid, 2nd process is by recycle water washing, 3rd process is by pure water;After washing, the jars will be falling down on angle plate from jar holder by transmission chain with gravity force; Then the jars will be pushed by pushing cylinder to under filling head, then filling start; Filling volume can be controlled by filling time set up. The filled jars will be pushed to under capping head by empty jars afterwards. Worker put lot of disordered caps into cap loader, cap loader will sort cap automatically to load down into cap rail. When filled bottles passing under capping head, cap will fall down onto jar neck, then capping cylinder will do the capping automatically by cap pressing cylinder.

Characters:

1, The whole machine is controlled by PID system, all cylinder travel is calculated in advance for driven distance;

2, The machine can work under automatic model, manual model is for machine checking;

PID microcomputer system control

ZhangJiaGang City FILL-PACK Machinery Co.,Ltd. is located in Jiangsu Zhangjiagang,which dedicated to technology research,manufacture and sales.Since the establishment,we always keep engaging in gallon filling field. Mainly provide the gallon bottles whole factory planning, from preform design to bottle blowing and filling,packing.

Fill-pack manufactures & provides full range of equipment for gallon water filling line.
· Water Treatment System - 250LPH to 30000LPH
· 5 gallon Full-automatic & semi-automatic blow molding machine
· Preform Injection Molding
· 5 Gallon Bottle Washer up to 2000BPH
· Filling machine - 100BPH to 2000BPH for 5 gallon
· Gallon Barrel Adhesive Labeling
· Gallon bottle cap shrink labeling machine
· Gallon Water Plant Consumables

We are committed to provide high-quality machine and best service for the gallon bottle water factories in the world, to help customers create the most value. Fill-pack request more precision to every parts, so that 100% meet the process requirements, make sure 100% customer satisfaction.

We own 3800 square meters modern factory in accordance with ISO9001: 2000 certification system standards with all kinds of advanced processing equipment and testing equipment, experienced technicians, scientific and strict management, all constitute FILLPACK excellence in product manufacturing system, which provides the strongest protection for FILLPACK product quality.

We believe in FILLPACK’ s future while you choose us!
