| Categories | Circular Waterproof Connector |
|---|---|
| Brand Name: | RAYMO |
| Model Number: | PHG.2KC.319.CLLD52Z |
| Certification: | CE/ROHS/SGS/ISO:9001-2015 |
| Place of Origin: | SHENZHEN,CHINA |
| MOQ: | 1 Piece/Pieces |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, D/A, D/P,L/C, MoneyGram |
| Supply Ability: | 5000Pieces/ Week |
| Delivery Time: | 5-7working days |
| Packaging Details: | Plastic Bag & Carton |
| Prct Name: | IP68 Waterproof push pull connector |
| Model: | PHG cable mount socket |
| Contact no.: | 2-32 pins |
| Shell size: | 0K,1K,2K,3K |
| Shell Color: | Natural or Black shell |
| Insulator: | PPS, PEEK |
| Gender: | Male, Female |
| Contact type: | Solder/PCB/90° PCB contacts |
| IP ranking: | IP68 |
| Cable assembled or not: | Yes |
| Company Info. |
| Shenzhen Raymo Electronics Technology Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

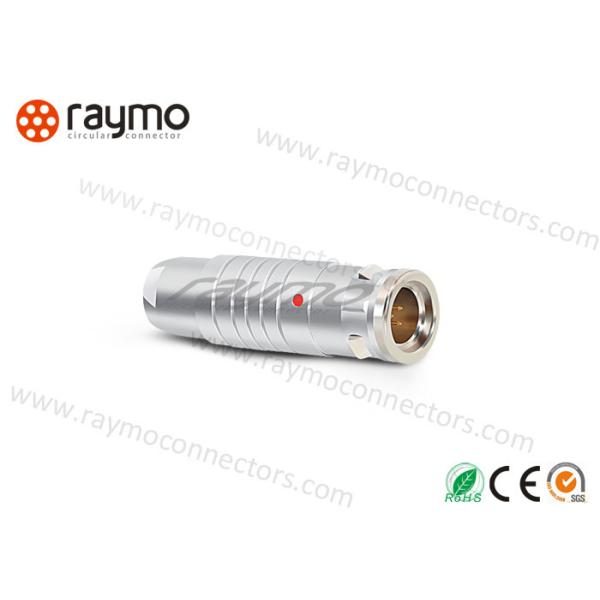

High Tensile Compact IP68 Circular Waterproof Connector Silicone Sealing
Compact Waterproof Cable Connector Silicone Sealing High Tensile Compressive Strength
Waterproof Cable Connector Description
| Technical Characteristics | |||
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | Brass with chrome plated | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144hr |
| Climatical Category | 55/175/21 | Shielding (min) | > 95dB [ at 10 MHz], > 80 dB [ at 1 GHz] |
| IP Rating | IP 68 | Endurance(shell) | ≥5000 mating cycles |
RM-K Series 0K 1K 2K 3K series PHG cable mount sokcet
Part No.: | PHG.2K.319.CLLD52Z/ RM-PHG-2KC-319KS52Z |
Prct Description: | 2K size connector, PHG cable mount socket, 19pin female contact, 52 cable collet, nut for a bend relief, natural chrome plated shell in brass |
K series Push pull locking metal connector, cable to cable connector, free socket, inline connector
Main Futures | |
1 | Waterproof Secure high performance push-pull Self-locking system |
2 | 100% compatible with original Lemo K series connector |
3 | can plated with white or black chrome |
4 | 2-32pin available |
5 | Available solder and PCB or right angle PCB contact. |
6 | 360° EMC shield |
7 | Certificate:ISO:9001-2015, CE ,RoHS2.0, SGS, Reach |
Shell size | Contacts no. ( Both with Solder & PCB type ) | |||||||||||
0K | 2 | 3 | 4 | 5 | 6 | 7 | 9 |
|
|
|
|
|
1K | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 |
|
2K | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 |
3K | 3 | 4 | 6 | 8 | 9 | 10 | 12 | 14 | 14 | 16 | 18 | 21 |
26 | 30 | 32 |
|
|
|
|
|
|
|
|
| |
