| Categories | Electric Copper Wire |
|---|---|
| Brand Name: | YUANTONG |
| Model Number: | BVVB |
| Certification: | ISO,ANATEL,ROSH,TLC，CCC |
| Place of Origin: | china |
| MOQ: | 50km |
| Price: | usd 0.28/m |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000km per day |
| Delivery Time: | within 7 working days |
| Packaging Details: | rolls in carton box |
| Product name: | Bvvb Flat Soft Type Copper Conductor Parallel Wire Twin And Earth Electric Copper Wire |
| Conductor: | Copper Core |
| cross section: | 1.5/2.5/4/6/10 |
| sheath: | PVC |
| Color: | yellow/red/black/blue |
| packing: | in roll |
| Length: | 100m/roll |
| Use: | 300/300V 300/500V 450/750V |
| Company Info. |
| Sichuan Yuantong Communication Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

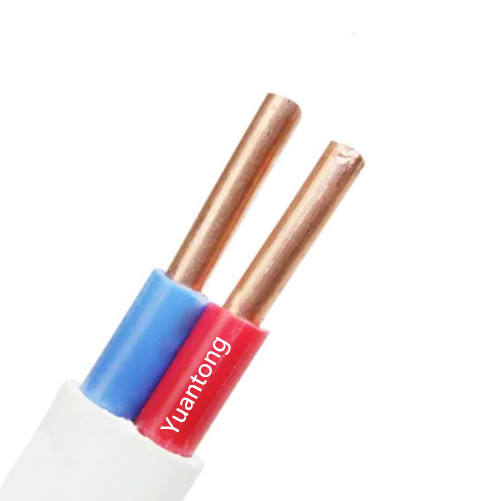

Bvvb 10mm Shielded Or Unshielded Pvc Sheath Parallel Copper Core Power Cable Electric Copper Wire
Description
The cable has the advantage high mechanical strength,good ambient
stress resistance,good electrical properties and anti-chemical
corrosion. It applies to electrical power transmission and
distribution lines with AC rated Voltage up to 450/750V. The cable
is for general purpose, as building wire for power, lighting and
control wire to electrical appliances, suitable for use in conduit
and for fixed, protected installation.General purpose single core
hard without sheathed cable conductor,is fit for AC voltage 450 /
750V and below power plant, household appliances, instruments and
telecommunications equipment, cable and wires. With anti-acid-base,
oil resistance, moisture, mildew and other characteristics.
Specifications
1.The national certification of qualified manufacturers
2.CE, RoHS, ISO ,SGS Certificate
3.Meet European standards and can be customized according to
customer requirements
4.OEM, ODM cooperation
| Copper conductor PVC insulated PVC sheathed flat cable | |||||
| Number and nominal cross-sectional area(mm2) | Insulation thickness (mm) | Sheath thickness (mm) | Reference overall Diameter (mm) | Reference weight(kg/km) | Reference current rating in air at 25°C (A) |
| 3×0.75 | 0.6 | 0.9 | 4.06×8.46 | 57.2 | 9 |
| 3×1.0 | 0.6 | 0.9 | 4.22×8.94 | 67.1 | 11 |
| 3×1.5 | 0.7 | 0.9 | 4.66×10.26 | 89.3 | 14 |
| 3×2.5 | 0.8 | 1.0 | 5.46×12.26 | 133.8 | 20 |
| 3×4 | 0.8 | 1.0 | 5.92×13.64 | 182.2 | 26 |
| 3×4(B) | 0.8 | 1.0 | 6.25×14.63 | 192.2 | 26 |
| 3×6 | 0.8 | 1.1 | 6.61×15.31 | 248.8 | 32 |
| 3×6(B) | 0.8 | 1.1 | 7.02×16.54 | 262.9 | 32 |
| 3×10(B) | 1.0 | 1.2 | 8.48×20.48 | 406.9 | 52 |
| Item Spec. | Nominal cross section | No./Diameter of conductor (mm) | No./Diameter of Earth core (mm) | Insulation thicknsee (mm) | sheath thicknsee (mm) | Max.outer diameter (mm) | Ref .Weight (km/kg) | Conductor resistance at 20°C≤(Ω/km) |
| (mm2) | ||||||||
| Flat Cable 2Cores+E ( BVVB ) | 2×1.0+E | 2×1/1.13 | 1/0.85 | 0.6 | 0.9 | 4.5×8.2 | 64.16 | 18.1 |
| 2×1.5+E | 2×1/1.38 | 1/1.13 | 0.7 | 0.9 | 5.1×9.2 | 89.52 | 12.1 | |
| 2×1.5+E | 2x7/0.52 | 7/0.43 | 0.7 | 0.9 | 5.3×9.4 | 91.52 | 12.1 | |
| Flat Cable 2Cores+E ( BVVB ) | 2×2.5+E | 2×1/1.78 | 1/1.38 | 0.8 | 1 | 5.4×10.1 | 128.36 | 7.41 |
| 2×2.5+E | 2×7/0.68 | 7/0.52 | 0.8 | 1 | 5.6×10.3 | 130.36 | 7.41 | |
| Flat Cable 2Cores+E ( BVVB ) | 2×4+E | 2×1/2.25 | 1/1.78 | 0.8 | 1 | 5.9x11.8 | 180.56 | 4.61 |
| 2×4+E | 2×7/0.85 | 7/0.68 | 0.8 | 1 | 6.1x12.1 | 202.66 | 4.61 | |
| Flat Cable 2Cores+E ( BVVB ) | 2×6+E | 2×1/2.76 | 1/2.25 | 0.8 | 1.1 | 6.7×12.8 | 247.18 | 3.08 |
| 2×6+E | 2×7/1.04 | 7/0.85 | 0.8 | 1.1 | 6.9×13.3 | 267.18 | 3.08 | |
| Flat Cable 2Cores+E ( BVVB ) | 2×10+E | 2×7/1.35 | 7/1.04 | 1 | 1.2 | 7.8×14.5 | 435.05 | 1.83 |
Certifiacte
Exhibition home and abroad
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
|
