Environmental Test Chambers Climatic Chamber Salt Spray Test Chamber DIN50021

Environmental Test Chambers Climatic Chamber Salt Spray Test Chamber DIN50021

Environmental Test Chambers Climatic Chamber Salt Spray Test Chamber DIN50021
Environmental Test Chambers Climatic Chamber Salt Spray Test Chamber DIN50021
Categories Environmental Test Chambers
Brand Name: BOTO
Model Number: BTCY-3168
Certification: CE certificate
Place of Origin: China
MOQ: 1 Set
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 set/ Month
Delivery Time: 5-15 days
Packaging Details: Plastic+wooden case
Price: Discussible
Model: B-SST-90
Internal: 120x100x50
External Dim: 178x120x149
Low Temp Range: -10℃--60℃
Test Temp Rang: -40℃-150℃
HighTemp Rang: ＋80℃～200℃
Interior: SUS#304Stainless steel plate
PH value: Saline test method:6.5-7.2/Corrosion test method:3.0-3.2
Contact Now
Company Info.
BOTO GROUP LTD
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

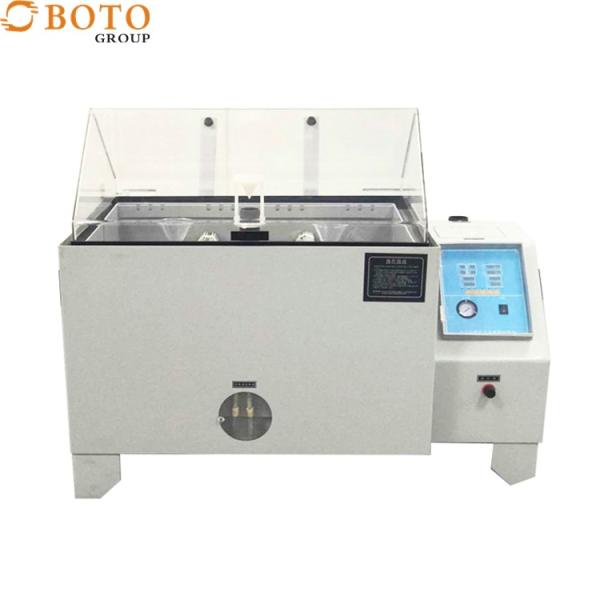

Environmental Test Chambers Climatic Chamber Salt Spray Test Chamber DIN50021

Environmental Test Chambers Climatic Chamber Salt Spray Test Chamber DIN50021


Application

Salt Spray Test Chamber is applicable to test salt spray corrosion resistance of products,such as parts, electronic components, protective layer of metallic material and industrial products.
The salt spray test chamber is a climate simulation device that tests the corrosion of electronic equipment, metallic material, as well as some surface treatment--coating, galvanizing, organic/inorganic coating, anodizing treatment, rust-proof oil coating, etc. Performance indicators in line with requirements of GB / T5170.8 Electrical and Electronic Products, Environmental Testing Equipment, the Basic Parameters of the Test Method. The salt spray corrosion test chamber according to GB / T2423.17 Electronic and Electrical Products Basic Environmental Test Procedures Test: Salt Spray Test Method for neutral salt spray test can also be used for acetic acid salt test.

Features

1. Durable hard 8mm PVC construction, anti-corrosion and easy to clean.
2. Reservoirs with mixing system on stand.
3. Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4. Exposure zone lined with corrosion-resistant PVC sheets.
5. Clear cover allows viewing of test conditions.
6. Peaked cover prevents dripping of condensation onto samples.
7. Water seal and water level protection system.
8. Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9. Automatic DI water fills to humidifying tower.
10. Digital temperature control.
11. Integral over-protection on heaters.
12. Low water cut-off protection on humidifying tower.

product description:



Model		B-SST-60B-SST-90B-SST-120B-SST-160B-SST-200

Internal Dim(W*H*D)		60x45x4090x60x50120x100x50160x100x50200x100x50

External Dim(W*H*D)		108x63x119140x80x139178x120x149230x130x149270x130x159

Cabinet Material
Corrosion-resistant polymer material

Laboratory temperature (℃)		A:25℃~70℃ B:0℃-70℃ C:-20℃-70℃ D:-40℃-70℃

Saturated air barrel temperature(℃)		35±1℃50±1℃
Saline test method:35±1℃/Corrosion test method:50±1℃

Saturated air pressure (kg/c㎡)		0.8-2.0±0.01
(ml／80c㎡.h)
Salt spray sedimentation rate (ml/80c㎡.h)		1-2ml/80 cm2.h(Controllable)

PH value		Salt water test method:6.5～7.2／Test method for corrosion resistance:3.0-3.2
Saline test method:6.5-7.2/Corrosion test method:3.0-3.2

Power Source		AC:220V 50Hz/AC:380V 60Hz

Our company:

FAQ

Customer: What about the transportation?

Answer: It depends on your requirement. We can delivery by air to your airport, or by sea to your seaport, and we can also delivery to your office address by express courier, and we also accept to co-operate with your ship agent or forwarder.


Customer: What about the after-sale service?

Answer: Guarantee period is 12 months, after the warranty, we also provide life-long paid repair or service. Response within 24 hours for any problems. Overseas training, installation is available.


Customer: What about the delivery date?

Answer: Usually we offer 15workdays after order confirmed and payment received, and we can also accept urgent order for prompt shipment.

Our Services

All machine quality guarantee for one year and lift-time technical support for customer. On line response to customers technical problems.and life-time technical support for customer.
