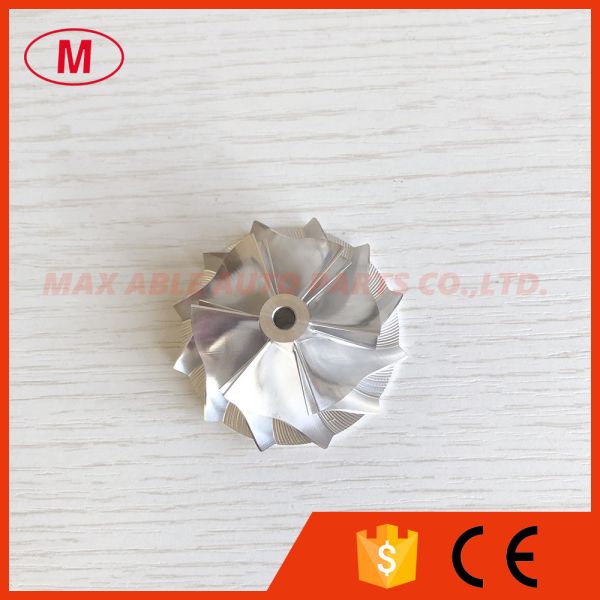

KP39 35.57/46.00mm 6+6blades high performance Turbo milling/aluminum 2618/billet compressor wheel super back:0.00

1. MODEL:KP39 FORWARD

2.KP39 35.57/46.00mm 6+6blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:9.13mm

Inducer:35.57mm

Exducer:46.00mm

Tapered tip exducer:49.58mm

Tip height:4.10mm

Superback:0.00mm

Overall height:20.81mm

Trailing angle:60

blade height:18.79mm

bore size :4.10mm

bore type:through

Cutback:0.0

SP height angle:0.00

Splitter height:12.95mm

6+6 Blades

Forward rotation

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced

we can also produce as your requirement.
