| Brand Name: | LNF-Clear fence |
| Model Number: | 3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire |
| Certification: | ISO |
| Place of Origin: | South African Design China Made |
| MOQ: | 500 liner meter |
| Price: | 16.66$ per liner meter |
| Payment Terms: | TT30% deposit balance 70% at sight of finished products |
| Supply Ability: | 10000 liner meters |
| Delivery Time: | 7 work days |
| Packaging Details: | All metal Pallets |
| Material: | Stainless Steel Wire,316L stainless steel,304L |
| Application: | Protecting Mesh,Woven Wire Mesh,decorative cable mesh |
| Type: | Rope Mesh,Weave Wire Mesh,Reinforced Mesh,knotted mesh and ferrule mesh,stainless steel decorative wire mesh |
| Weave style: | Plain Weave,Twill,handmade |
| Technique: | Woven |
| Feature: | Corrosion Resistance,Flexible,durable,high-strength,Rust-Resistance |
| Wire diameter: | Requirement,1x7 7x7 7x19 or customized,1/16" |
| Usage: | Protection,decorative wire mesh,aviary mesh |
| Hole shape: | Diamond,Square Hole,Rectangular,as per requirement,round hole |
| Color: | Silver,Red/yellow/green/blue;customized |
| Product name: | SS 304 decorative wire mesh,304 316 316L stainless steel bird cage wire rope/aviary mesh,Stainless Steel Wire Rope Net/Stainless Steel Cable Mesh for Bird |
| Width: | 2-4m,0.914m~1.83m |
| Length: | 2-4m |
| Surface treatment: | polishing |
| Sample: | Available,Free |
| Mesh size: | as your requirement |
| Size: | 3"*3",4"*4",1"*1",1.5"*1.5",Customized |
| Advantage: | Superior wire,corrosion resistance,High strength,Wear-resisting |
| Aperture: | 1" 2"x2" 3"x3" 4 or customized |
| Company Info. |
| Top Fencing Co.Limited |
| View Contact Details |
| Product List |

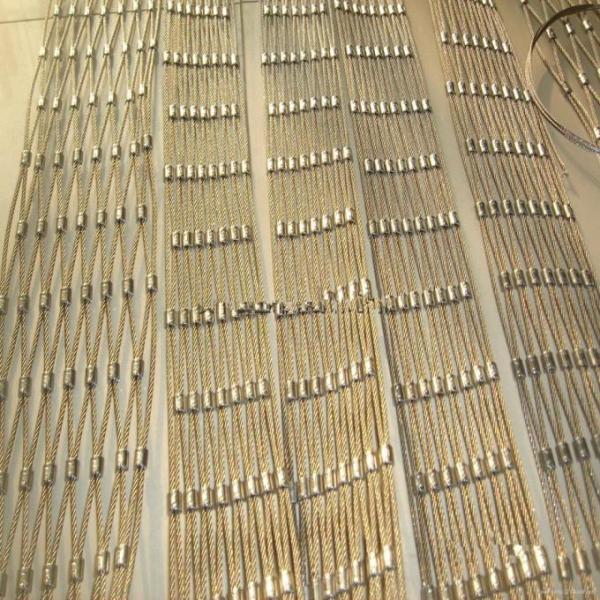

X Tend Stainless Steel Wire Rope Mesh
X Tend Mesh also called stainless steel ferruled rope mesh, is almost similar to stainless steel knotted rope mesh in physical properties. And the only difference is that the two neighboring ropes of stainless steel ferrule rope mesh are combined by ferrules to form diamond openings. And ferrules are made of the same material as the rope wire. The standard angle is 60°, but other angles are also available, such as 10° and 90°. Stainless steel ferruled rope mesh is very flexible, and its width and length can be modified. Therefore, it is widely used in various fields of our daily life, such as stainless steel rope mesh green wall and stainless steel balustrade mesh.
Ferrules combine the stainless steel ropes together, making the mesh solid and firm.
Stainless steel ferrule rope mesh is fixed on a fixture, making it resistant to impact.
Features:
Ferrule rope mesh with high flexibility can be used in many conditions.
Ferrules can fasten stainless steel ropes together tightly and firmly.
Galvanized ferrule rope mesh with uniform mesh holes features grand appearance.

Packaging details:
| Code | Rope Construction | Rope Diameter | Aperture | Breaking Force | |
|---|---|---|---|---|---|
| Inch | mm | mm | kN | ||
| SFRM-01 | 7 × 19 | 1/8 | 3.2 | 120 × 208 | 7.38 |
| SFRM-02 | 7 × 19 | 1/8 | 3.2 | 100 × 173 | 7.38 |
| SFRM-03 | 7 × 19 | 1/8 | 3.2 | 90 × 156 | 7.38 |
| SFRM-04 | 7 × 7 | 3/32 | 2.4 | 100 × 173 | 4.18 |
| SFRM-05 | 7 × 7 | 3/32 | 2.4 | 90 × 156 | 4.18 |
| SFRM-06 | 7 × 7 | 3/32 | 2.4 | 80 × 139 | 4.18 |
| SFRM-07 | 7 × 7 | 3/32 | 2.4 | 70 × 121 | 4.18 |
| SFRM-08 | 7 × 7 | 5/64 | 2.0 | 100 × 173 | 3.17 |
| SFRM-09 | 7 × 7 | 5/64 | 2.0 | 90 × 156 | 3.17 |
| SFRM-10 | 7 × 7 | 5/64 | 2.0 | 80 × 139 | 3.17 |
| SFRM-11 | 7 × 7 | 5/64 | 2.0 | 70 × 121 | 3.17 |
| SFRM-12 | 7 × 7 | 1/16 | 1.6 | 80 × 139 | 2.17 |
| SFRM-13 | 7 × 7 | 1/16 | 1.6 | 70 × 121 | 2.17 |
| SFRM-14 | 7 × 7 | 1/16 | 1.6 | 60 × 104 | 2.17 |
| SFRM-15 | 7 × 7 | 1/16 | 1.6 | 51 × 87 | 2.17 |
| SFRM-16 | 7 × 7 | 3/64 | 1.2 | 80 × 139 | 1.22 |
| SFRM-17 | 7 × 7 | 3/64 | 1.2 | 60 × 104 | 1.22 |
| SFRM-18 | 7 × 7 | 3/64 | 1.2 | 50 × 87 | 1.22 |
| SFRM-19 | 7 × 7 | 3/64 | 1.2 | 40 × 69 | 1.22 |
|
