30mm Insulation Panels Steel Aluminum Washers Used For Screw Fixed

Description detail of 30mm insulation panel aluminum washers

30mm insulation panel aluminum washers for installing insulation panels, roof membranes, polythene, vapour barriers, etc. Washers ensure a strong insulation hold without damaging panel.

Fastener & Washer Recommended for use will all types of ROCK WOOL stone wool insulation boards Fastener should be appropriate type for the substrate.

Specification details of 30mm insulation panel aluminum washers

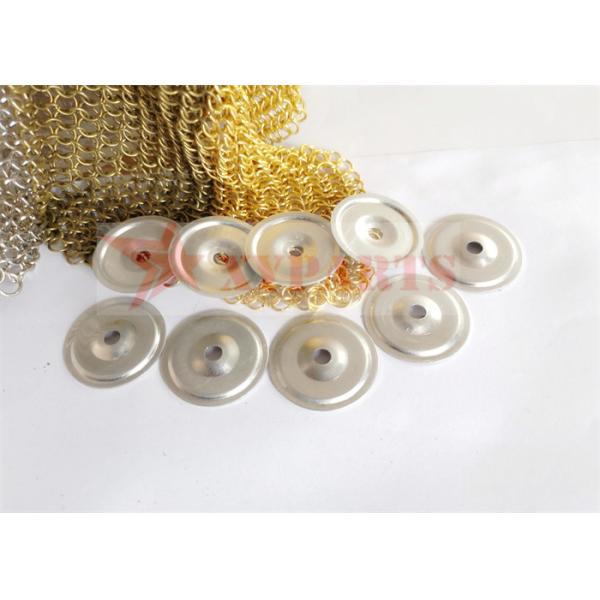

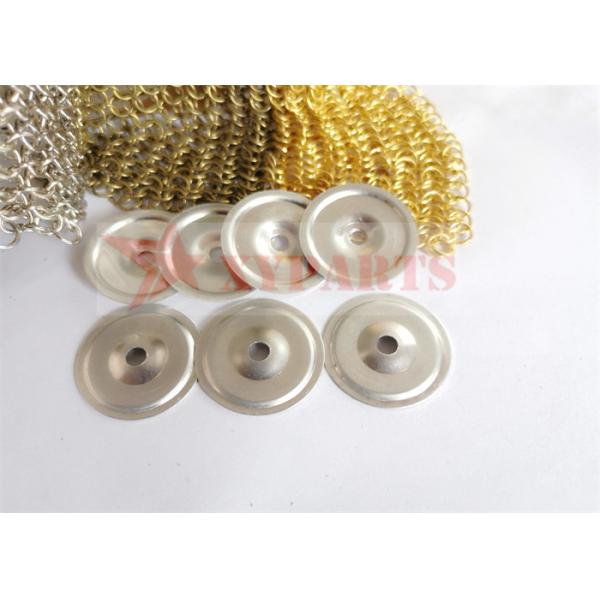

Images of 30mm insulation panel aluminum washers

Installation guids for aluminum washers and insulation fasteners

• Fasteners should be: a) appropriate type for the substrate: b) capable of withstanding applied pull-out and shear-loads.
• Required length, number, spacing and embedded depth of fasteners will depend on the type of fastener, the applied loads, the substrate and the thickness of the insulation, strapping and any sheathing.
• Anti-unwinding fasteners (or alternative precautions) should be used for metal frame construction.
• Embedded fastener depth will vary based on framing medium. As a general rule: 1.5” deep in wood studs and concrete, extend at least 3 full threads past the inside face of steel studs.
• Designers can vary the type, number and embedded depth of fasteners to meet specific requirements

Related products- self locking washers

HEBEI XIANGYI METAL PRODUCT CO., LTD

Metal Stamping Services

XIANGYI Products is a metal stamping manufacturer with equipment and expertise optimized for high-volume custom metal stamping production meeting ISO 9001 quality standards. Our custom metal stamping service uses a combination of high-speed presses, progressive dies, 4 slide, and multi-slide presses to provide the most cost-effective solution for high volume manufacturing. When appropriate we design & build specialized manufacturing cells utilizing automation for high volume, low cost production.

Stampings Equipment Overview

XIANGYI operates 24 presses ranging up to 600 ton SSDC. Press bed sizes are up to 168″ x 54″. Press stroke ranges up to 12″ for stamping. Our physical plant is 165,000 square feet under one roof & arranged for the most efficient material handling possible. Occasionally, customers like to ‘peek behind the curtain’ at our high speed stamping equipment.
