| Categories | Self Stick Pins |
|---|---|
| Brand Name: | HUIHAOCUSTOM |
| Model Number: | XY-50-T/W |
| Certification: | ISO9001-2015 |
| Place of Origin: | CHINA |
| MOQ: | 10000 sets |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 400000 sets per month |
| Delivery Time: | within 15 days |
| Packaging Details: | 100 sets per carton/ 500 sets per carton+ wooden /plastic pallet |

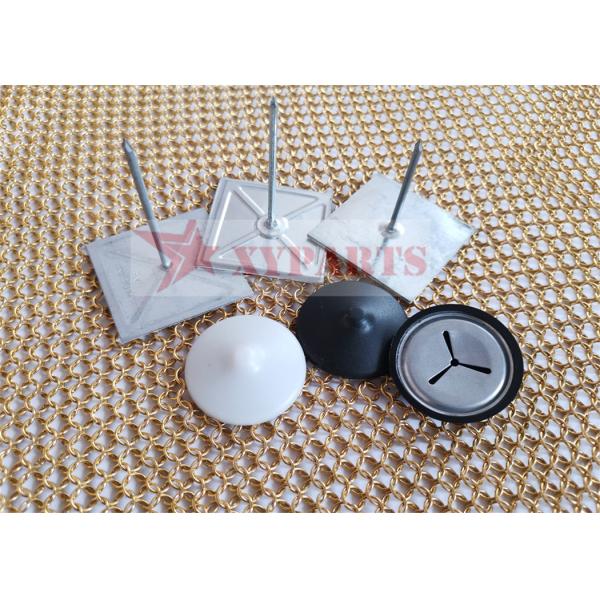

| Product name: | self stick pins |
| Fixing parts: | self locking washers |
| base size: | 50mmx50mm |
| pin thickness: | 2.7mm, 3mm |
| pin length: | 38mm-203mm |
| pin material: | anneaded metal wire |
| Application: | Fixing insulation material on wall |
| Company name: | Xiangyi |
| base | material | galvanized steel, stainless steel |
| dimensions | 2" x 2" ( 50mm x 50mm ) | |
| thinkness | 28 GA ( 0.04 MM ) | |
| Shank | material | anneaded steel wire, anneaded stianless steel wire, aluminum 1011 grade |
| pin diameter | 12 ga ( 2.7 mm ) 3 mm | |
| length | 38 mm -280 mm | |
| Adhesive tape | Base | double-side foma E with white color |
| Coating | modifiled acrylate adhesive on both sides | |
| thickness | 1mm | |
| power ( FINAT -TM 1, On stainless steel , one side covered with 50 microns polyester film ) | ||
| 1 minute | > 18 N / 25 mm | |
| 20 minutes | tear | |
| 24 hours | tear | |
| shear strength ( FINAT -TM 1, On stainless steel , one side covered with 50 microns polyester film ) | ||
| 23℃ | > 150 hours | |
| 70℃ | > 1 hour | |
| fixing parts | material | galvanized steel, stainless steel, aluminum alloy |
| self locking washers | washer size | 30mm is standard, 15mm, 20mm, 25mm, 32mm, 38mm, 50mm, 65mm in popular |
| thickness | 0.4 mm / 0.7mm | |
| edge | bevelled | |
| ODM/OEM | xiangyi parts is can be your request to make finished, choose material and size | |
Self Stick Insulation Hanger easily install any type of insulation up to 3.5" thick to air ducts, metal buildings, concrete foundations - even to the underside of wooden roofs. Insulation Hangers are perfect for installing fiberglass or rubber insulation blankets or polystyrene board. Insulation Hangers have a sticker backing to make placing easier. They also have a unique Easy-Peel adhesive backing design so that there isn't any fumbling with the release paper.
|
1, clean the surface 2,Peel off backing 3, stick pin in place 4 ,pressure the pin 5, wait 15-20 minutes 6, Install insulation and secure with self locking washer |
|
Application: The average of 1-10 layers is 6pcs/m2, and the average of 11-20 layers is 7pcs/m2, 21-26, and 9pcs/m2. Any single block with an area greater than 0.1m2 must be anchored, depending on the shape and site conditions; the density of the anchor should be increased around the insulation pins of the sun, under the mouth, and around the edge of the hole. The distance is not more than 300mm, from the edge of the base. Not less than 60mm |
Inner is plastics bag/box and outer is carton. It can depends on client's requirements.
Delivery Details:
Normally in 5-30 days and it is according to the quantity. We will make the delivery as soon as possible with the guarantee quality.
Q: Are you a factory or trading company?
A: We are the specialized supplier of insulation pins fastener, can provide the best price.
Q: Where is your factory?
A: Our factory is located in RAOYANG city HEBEI province.
Q: How can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q:Can you make OEM or ODM service?
A: Yes. We can accept OEM service.
Q:How to ensure that every process's quality?
A: Every process will be checked by our quality inspection department which insures every product's quality.
Q: Can you provide some sample before placing orders?
A: Samples are free,Please feel free to contact us.
Q: What is your payment term?
A: T/T,Western Union,L/C,and Paypal.This is negotiable.
Q:What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX etc).Please confirm with us before placing orders.
Q:What is your lead time?
A: It depends on the order quantity and the season you place the order.Usually we can ship within 3-7 days for small quantity,and about 20-30 days for large quantity.
|
