| Brand Name: | |
| Model Number: | CYCLONEpro,RIVAL-22S-full, alloy wheel |
| Certification: | ISO9004 CE REACH ROHS |
| Place of Origin: | CHINA |
| MOQ: | 50PCS |
| Payment Terms: | L/C, T/T, D/A, D/P, T/T, Western Union, MoneyGram,AliPay |
| Supply Ability: | 30000pcs |
| Delivery Time: | 7-15Days |
| Packaging Details: | Carton Size:140CM*75CM*20CM and Container Quantity:20GP-120pcs-125pcs;40HQ-290pcs-296pcs |
| Price: | Negotiable |
| Product Name: | Carbon road bike |
| Frame: | CYCLONEpro(disc&thru-axle) |
| Derailleur Handle: | SRAM RIVAL-22S |
| Front Derailleur: | SRAM RIVAL |
| Rear Derailleur: | SRAM RIVAL |
| Cranksets: | SRAM PG1130-11S, 11-32T |
| Cassettes: | SRAM PC1110-11S |
| Brake: | SRAM RIVAL flat-mount Hydr+PRO float disc |

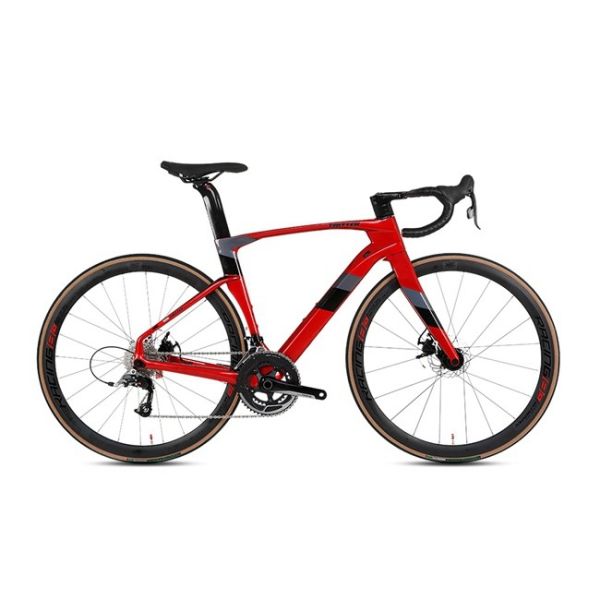

CYCLONEpro Carbon Fiber Road Bike Disc Brake Sram Rival 22 Speed Alloy Wheel
The Features of the Frame:
1. The frame of CYCLONEpro is made of high modulus Carbon Fiber (Carbon T900)
The strong carbon fiber shell durable frame, strong and light weight
2. Full Inner-Cables makes the complete bike to be more concise and professional.
3. Aero-design reduces air resistance and makes your riding faster
4. Gloss or Matte with UV embossing decals.
The Mian Components of CYCLONEpro:
| Frame | CYCLONEpro(disc&thru-axle), high modulus Carbon Fiber,EPS,Racing,full Inner-Cables,Gloss or Matte,UV embossing decals |
| Handelbar Sets | TW, high modulus Carbon Fiber, Integrated Handlebar&Stem(420*90mm),UV embossing water decals, inner-Cables |
| Seat Post | High modulus Carbon Fiber, UV decals |
| Clamps | Hidden Screw Fit to Frame |
| Fork | CYCLONEpro, high modulus Carbon Fiber,700C,UV embossing decals, Disc&thru-axle 12×100mm |
| Head Sets | TW, Alu alloy CNC with sealed-Bearings 52*52mm |
| Washer | Carbon 3K, 3×28.6×10mm |
| Derailleur Handle | SRAM RIVAL-22S (hydr disc Handle) |
| Front Derailleur | SRAM RIVAL |
| Rear Derailleur | SRAM RIVAL |
| Cranksets | SRAM RIVAL, Hollow,34-50T |
| Cassettes | SRAM PG1130-11S, 11-32T |
| Chain | SRAM PC1110-11S |
| BB | BB86×46×24mm, pressed, Alu alloy CNC&Hollow, with sealed bearings |
| Brake | SRAM RIVAL flat-mount Hydr+PRO float disc |
| Hubs | RS, Alu alloy,4-sealed Bearings,Slotted,F20*R24 holes,Disc&thru-axle F12×100_R12×142mm |
| Rim | RS, Alu alloy AL7005,Double wall,Matte,W19×H36mm×700C, UV decals |
| Spoke | SHUNJIU, Flat 14G,bend head |
| Tyre | INNOVA-PRO, Smoothie, 120PSI, 700*25C, Skin-color edge |

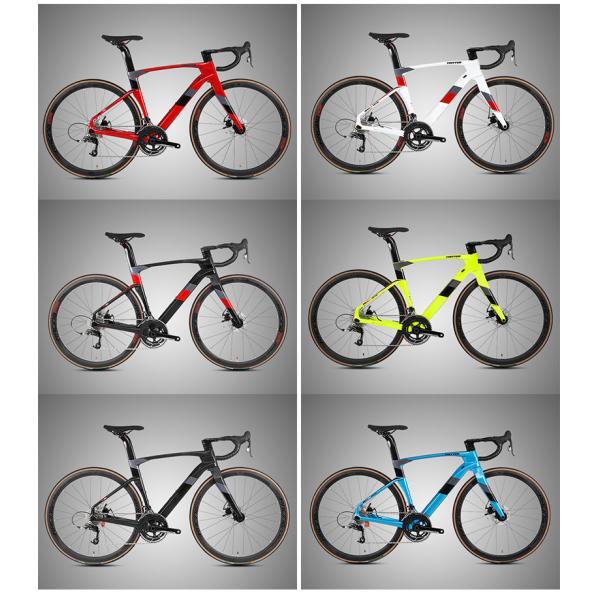

A Variety of Colors: BlackRed / Red / WhiteRed / Black / TiGray / CementGray / Silver /
Blue / Yellow / Orange/ OEM
Size:700C*45cm / 48cm / 51cm / 54cm

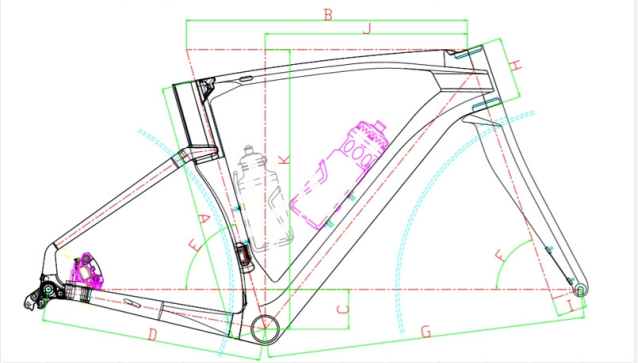

| size | A | B | C | D | E | F | G | H | I | J | K |
| BB Center to Top of Seat Tube | Effective Top Tube Horizontal | BB offset | Chainstay Length | Seat angle | Head Angle | Front Center | Head Tube Length | Fork Offset | Reach | Stack | |
| mm | mm | mm | mm | ° | ° | mm | mm | mm | mm | mm | |
| XS - 45cm | 450 | 505 | -74 | 408 | 74.3 | 71.2 | 570 | 100 | 55 | 363 | 506 |
| S - 48cm | 480 | 520 | -74 | 408 | 74.3 | 71.2 | 588 | 114 | 55 | 374 | 518 |
| M - 51cm | 510 | 538 | -74 | 408 | 74.3 | 71.2 | 607 | 130 | 55 | 388 | 534 |
| L - 54cm | 540 | 550 | -74 | 408 | 74.3 | 71.2 | 620 | 150 | 55 | 394 | 553 |
| FRAME SIZE WITH RIDER HEIGHT | |||||||||||||
| Frame size | XS - 45cm | S - 48cm | M - 51cm | L-54CM | |||||||||
| Rider height | 155-170cm | 165-175cm | 175-185CM | 185-195CM | |||||||||
Details of CYCONEpro:

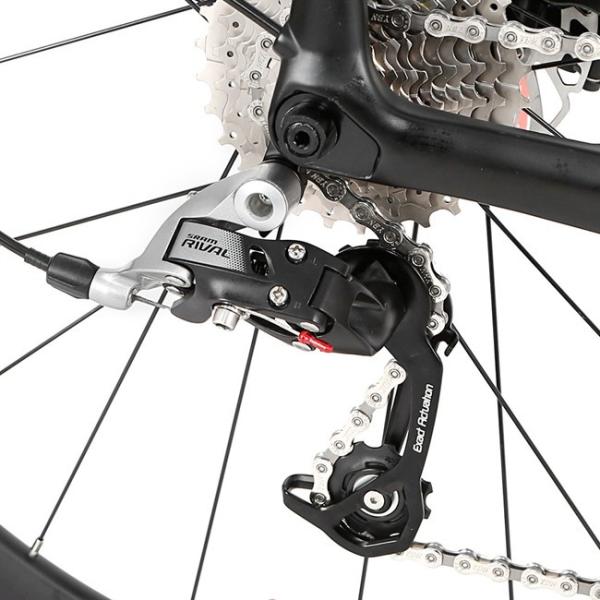

Derailleur / Brake System:
Shift lever: SRAM RIVAL-22S
Front Derailleur: SRAM RIVAL
Rear Derailleur: SRAM RIVAL
Brakes: ZOOM, flat-mount&cable pull Hydr(metal radiator)+PRO float disc



SAMPLE SERVICES
> You can pick the bike that you intersted and let us know, we will offere you the sample price to support you to check the our quality.
> Sample fee will be refund if order bulk.
CUSTOMIZED SERVICES
> Customized logo can be accepted.
> Color combination is available
Why Chose Us
- Factory price
- Logo customized
- Customized packages
- A lots of color for your choice
- OEM manufactured and popular design
- CE, SGS, and other certificates
- Stable supply and fast delivery
|
