| Categories | Gasoline Hydraulic Power Unit |
|---|---|
| Brand Name: | Zondar |
| Model Number: | ZD35-80Twin |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | USD 2300~9990 / set |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sets/year |
| Delivery Time: | 7~15 workdays |
| Packaging Details: | standard wooden case |

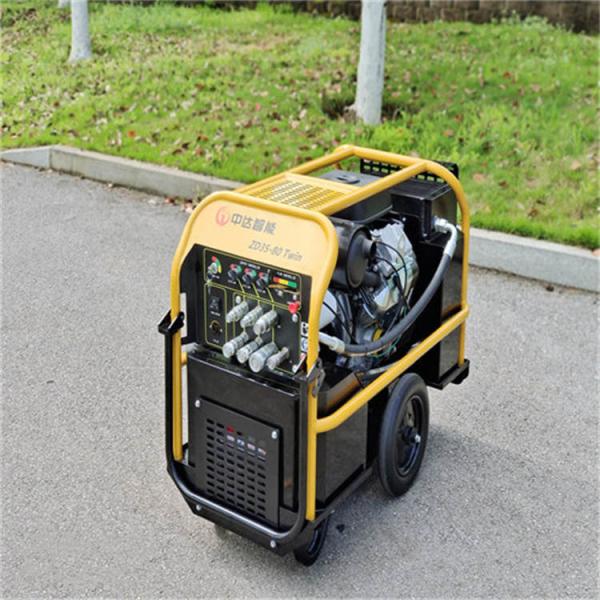

| Name: | Hydraulic power unit,Hydraulic power station |
| Model: | ZD35-80Twin |
| Weight: | 188kg |
| Application: | Emergency Rescue，Municipal maintenance，Drainage and emergency repair |
| Flow: | 2×30/2×40/1×80lpm |
| Starting mode: | Electrical starting |
1.One-station multi-purpose:2 hydraulic tools can be driven at the same timeor 1 large-flow water pump can be driven.
2.Stable and reliable performance:Imported engine, completely designed independently and strict reliability test to ensure the performance stability of the machine.
3.Compact structure:Compact structure, light weight, clever centroid design, effort-saving mobility and easy transportation.
4.One-key on-off electrically controlled design:Whole series of electrically controlled and integrated main valve block design and one key to achieve hydraulic oil on off and operation is simple and fast.
5.New aseismic design:Eliminate the high-frequency vibration of gasoline engine at the source and greatly reduce the cracking risk of the oil tanker and framework.
6.Internal confluence function:Internal confluence function. 80Lpm can be reached after confluence and drive large flow water pump.
| Model | ZD35-80 Twin |
| Gasoline engine | Briggs&Stratton 35HP |
| Diesel engine | none |
| Maximum presure of the hydraulic system/Mpa | 16 |
| Hydraulic folw/Lpm | 2×30/2×40/1×80 |
| Dimension/mm | 1130×630×850 |
| Bare machine weight(kg) | 188 |
| Hydraulic tank capacity(L) | 21 |
| Fuel tank volume(L) | 26 |
| Real-time monitoring system | Optional |
| Starting mode | Electrical starting |
| Hydraulic circuit and controller mode | Double circuit/Electrical starting |
|
