| Categories | Hydraulic Ring Saw |
|---|---|
| Brand Name: | Zondar |
| Model Number: | ZDRS40 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1sets |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sets/years |
| Delivery Time: | 7-15workday |
| Packaging Details: | standard wooden case |

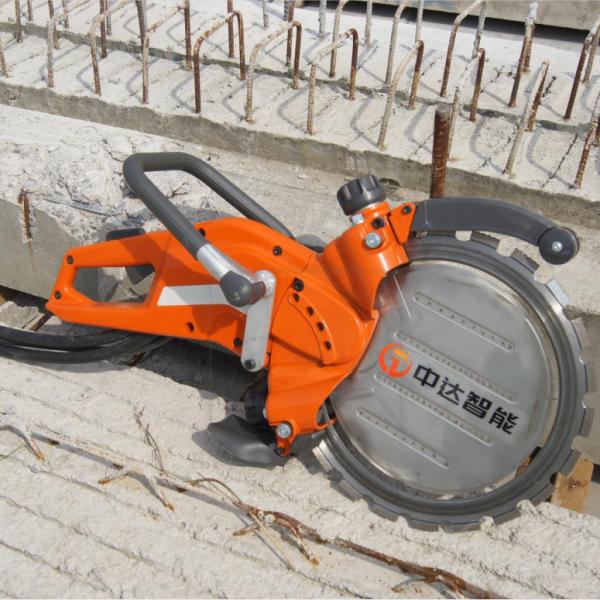

| Name: | Zondar 300 Mm Hydraulic Circle Saw For Comcrete |
| Model: | ZDRS40 |
| Brand: | ZONDAR |
| Saw blade diameter: | 400mm |
| Maximum cutting depth: | 300mm |
| Flow: | 20-40Lpm |
Product description:
Zondar hydraulic ring cutter saw of metal is well suited to a wide range of applications, including both brick and reinforced concrete. The combination of large cutting depth and high capacity without set-up time make the zondar hydraulic ring cutter saw of metal one of the most productive tools in the business.ost.
Product features:
1. The cutting depth is large, the size is the same and the cutting depth is much greater than that cutoff saw;
2. Low wear and long life. The parts are lubricated and immersed in hydraulic oil or water, with little wear and long life.
Performance Technology Parameter Configuration
| Model | ZDRS40 |
| Bare machine weight/kg | 10.2 |
| Flow/Lpm | 20-40 |
| Working pressure /Mpa | 16 |
| Maximum pressure/Mpa | 17.5 |
| Maximum cutting depth/mm | 300 |
| Saw blade diameter/mm | 400 |
| Rotating speed/Rpm | 1750-2350 |
| Vibrating strength(m/s²) | <2.5 |

|
