| Categories | Fuel Tanker Trailer |
|---|---|
| Brand Name: | SUNSKY |
| Certification: | BV/CCC/CE/DOT/SGS |
| Place of Origin: | CHINA |
| MOQ: | 1 unit |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Units Per Month |
| Delivery Time: | 30 Working Days |
| Material: | Aluminum Alloy |
| Thickness: | 6mm |
| Weight: | 13 Tons |
| Volume: | 30kl To 50kl |
| Tires: | 12R22.5 |
| Compartments: | 5 |
| Company Info. |
| XIAMEN SUNSKY VEHICLE CO.,LTD |
| View Contact Details |
| Product List |
Usage

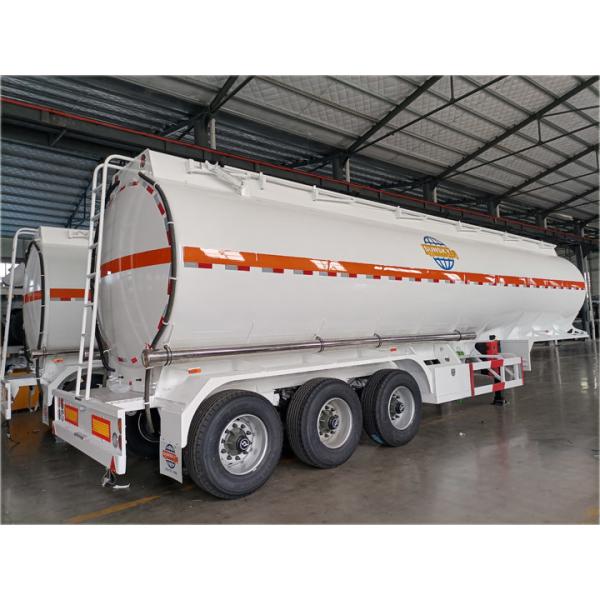

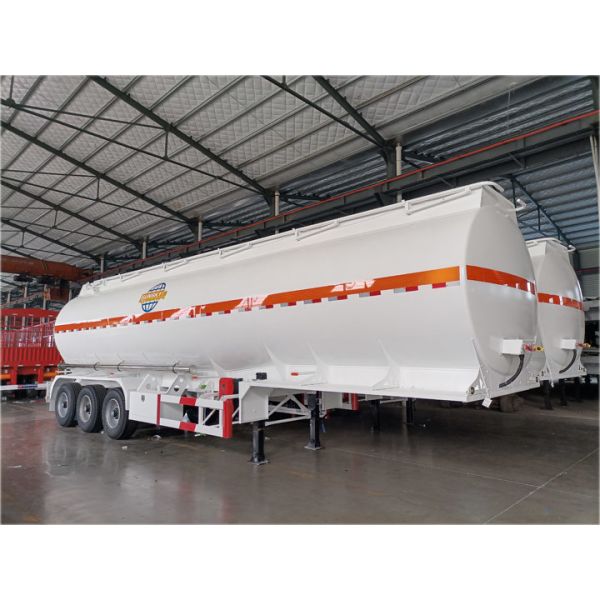

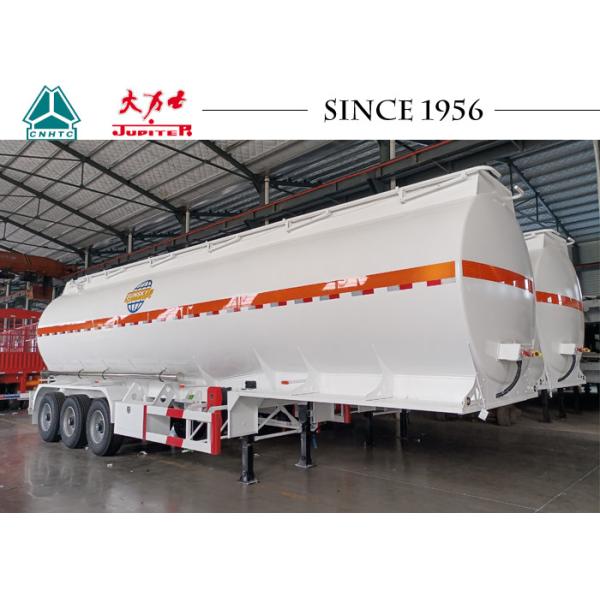

Aluminum Alloy fuel tanker trailer is suitable for carrying fuel oil, cooking oil.
Advantages
1. Aluminum tanker trailer have a longer life span than carbon steel tank,it can save energy and lighter in tare weight.
2. The tank body of aluminum tanker trailer is made of high-strength and wear-resistant high-level aluminum alloy.
3. Advanced TIG welding robot, 100% x-ray inspection pass rate
4. Bulk heads and anti-surfers with rise structure,high strength.
5. European standard loading and unloading system.safe and environmental friendly.
6. Tank section with international standard small arc,improve tank strength more uniform intensity.
Specification
| Dimension(mm): | 11700*2500*3850mm |
| Tare weight: | 7200kg |
| Volume: | 46000 liters |
| Tank body: | 6mm aluminum alloy 5182 |
| End plate : | 6mm aluminum alloy 5182 |
| Baffles plate: | 5mm aluminum alloy 5182 |
| Medium: | Diesel Oil,Petrol |
| Compartment: | 6 |
| Main frame: | Heavy duty and extra durability designed;high tensile steel,coupled by automatic welding process, |
| Manholes cover: | DN500 API aluminum manhole cover* 5sets. |
| Discharge valve: | 4” valve *6sets,With product display indicator,4”-3”gravity drop coupling. |
| Discharge pipe: | 4〞rubber hose, 2pcs |
| Bottom valve: | 4” API aluminum pneumatic bottom valve *5sets |
| Vapor recovery: | without |
| Overflow detection: | without |
| Fuel loading: | Top filling |
| Walkway: | Ladder on the back.On top of tank, 3mm thick steel perforated, anti-slip walk away will be provided within the manual operating guardrail. |
| Anti-static devices: | Including ground towing,static line plate,copper.Winder equipped with A Ø6 mm² power cable .Anti-static metallic braid connect trailer’s chassis to tanker body |
| Axle : | FUWA Brand 13Ton *3axles |
| Suspension : | Airbag suspension with front axle lifting |
| Tire : | 315/80R22.5*13units |
| Wheel rim: | 9.00*22.5 *13pcs |
| Kingpin : | 2” or 3.5’’bolt-in king pin |
| Landing gear : | two-speed, manual operating ,heavy duty landing gear |
| Braking system: | WABCO RE6 relay valve.T30/30 spring brake chamber.40L air tanks . |
| ABS: | Without ABS |
| Electrical: | Voltage 24V, Receptacle 7 ways (7 wire harness), Side marker lamp LED type |
| Painting : | Complete chassis sand blasting to clean rust ,2coat of anti-corrosive prime,2coats of final paint. Wax spray. Color as clients order |
| Accessories: | Two spare tire carrier,One tool box,One crank, One shaft head wrench.2sets ABC Dry Power fire extinguisher. |
|
