| Categories | Fire Brigade Truck |
|---|---|
| Brand Name: | CLW |
| Model Number: | CLW5142 |
| Certification: | CCC,SGS,BV |
| Place of Origin: | SUIZHOU,CHINA |
| MOQ: | 1 Unit |
| Price: | US $34,098-45,540 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 UNITS/MONTH |
| Delivery Time: | 30 days after receiving deposit |
| Packaging Details: | naked,waxed,bulk ship,ro-ro |
| Truck Chassis: | Dongfeng,Howo,ISUZU,Shacman,CAMC,Foton |
| Capacity: | 2tons,3ton,5ton,6tons,8ton,10tons,12ton,15ton,16ton |
| Type: | water tank fire truck,foam,dry powder fire truck,rescue fire truck |
| Fire Pump: | Chinese brand |
| Fire monitor range: | ≥50M |
| Flow rate of monitor: | 48L/s |
| Flow rate of pump: | 60L/s |
| Steering: | LHD or RHD |
| Company Info. |
| HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

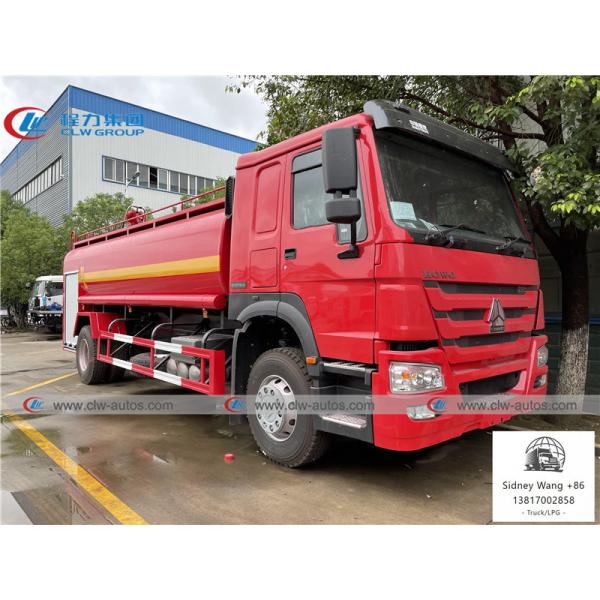

Sinotruk Howo 4x2 15CBM 15000Liters Fire Fighting Truck water tank
spraying truck
Product Description
1) HOWO 4X2 fire fighting truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.
2) To ensure good performance of fire trucks,howo fire truck is equipped with middle and low pressure fire pump CB20.10/30.6o with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).
3) Fire trucks are widely used in factory, terminal, oil&gas depot to insure emergency fire cases.
Specifications
| SINOTRUK HOWO 4x2 15CBM 15000Liters fire fighting spraying truck | ||||
| Truck Model | ZZ1167 | |||
| Truck Brand | SINOTRUK-HOWO | |||
| Steering Type | Left hand drive or Right hand drive | |||
| Approaching angle/Departure angle(°) | 16/9 | |||
| Overhang(front/rear) (mm) | 1500/2070 | |||
| Wheel base (mm) | 5000 | |||
| Max speed(km/h) | 75 | |||
| Curb weight(kg) | 9500 | |||
| Gross Vehicle Weight(kg) | 19000 | |||
| Overall dimensions (mm) | 9000x2500x3500 | |||
| Water Tank | Tank volume:15m3 Carbon steel material, Tank body 4mm,End plate 5mm | |||
| Equipment | Fire monitor:PL24-48,water output 24-48L/s, water range 50m; Fire pump:CB10/40,water output 40L/s; PTO,equipment locker with curtain exterior door | |||
Engine | Model | WD615,water-cooled,four strokes, 6 cylinders in line with water cooling, turbocharged and intercooling, directly injection | ||
| Fuel type | Diesel | |||
| Horse Power | 266HP | |||
| Emission | EURO 2 | |||
| Fuel tanker capacity(L) | 300 | |||
Brake system | Service brake | Dual circuit compressed air brake | ||
| Parking brake | spring energy, compressed air operating on rear wheels | |||
| Auxiliary brake | Engine exhaust brake | |||
| Steering system | Model | ZF8098,hydraulic steering with power assistance | ||
| Front axle | HF7 | |||
| Rear axle | ST16 | |||
| Color | As per customer’s requests | |||
| Tyre | 12R22.5,(one spare tyre).7units | |||
Electrical system | Battery | 2X12V/165Ah | ||
| Alternator | 28V-1500kw | |||
| Starter | 7.5Kw/24V | |||
| Cab | HW76 cab, one sleeper, with air-conditioner. all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | |||
Reference photos
Fire fighting truck accessories
Successful cases
Factory overview
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of fire fighting truck I can order from your company?
A: There are various sizes and types of fire fighting trucks with
different functions,you can contact us and tell your request.We
will recommend you suitable product.
Q2: Have you supplied fire fighting trucks to any overseas companies?
A: Yes,with need of government project,we offered fire fighting
trucks to many Africa and south-east Asian,south-American
countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the
equipment is applied successfully into operation, or 13 months from
the date on which the equipment has been delivered, whichever comes
first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our
overseas marketing office is in Wuhan city,Hubei Province.Wuhan is
about two hours' plane and four hours' high speed train from
Beijing,Shanghai or Guangzhou city,welcome to visit us for factory
inspection.
Warranty
1. One year free warranty for major 3 components of our trucks:
engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's
country to assist the installation and operation when quantity
reaches 20 units.
3. Transportation warranty: our company offers transportation
insurance for customer to ensure the products arriving at
destination safely.
More details please contact with
Mr. Sidney Wang
Sales Director
Hubei Chengli Special Automobile Co., Ltd
Hubei Weiyu Special Vehicles.,Ltd
Factory: Chengli Automobile Industry Park,Suizhou, Hubei, China
Office: Room 2614-2615, Block B,Longyang Time Square,Hanyang district,Wuhan, China
Tel&Fax: +86-27-8476 6488
Mobile/WhatsApp/WeChat: +86-13817002858
Email: sidney@clw-autos.com
