10Gbps 24AWG Direct Attach Copper Cable 7m QSFP DAC Cable

Categories	Fiber Optic Transceiver
Brand Name:	UNIFIBER-OEM
Model Number:	40G QSFP+ DAC Cable
Certification:	ROHS
Place of Origin:	CHINA
MOQ:	10pcs
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	500pcs/day
Delivery Time:	3~5 business days
Packaging Details:	Carton box
Product:	40G QSFP DAC Cable
Wire AWG:	24/28/30AWG
Connector:	QSFP+ to 4*SFP+
Data Rate:	10Gbps
Transmission distance:	up to 7m
Application:	Data Center

Contact Now

Add to Cart

Company Info.

Shenzhen Unifiber Technology Co.,Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

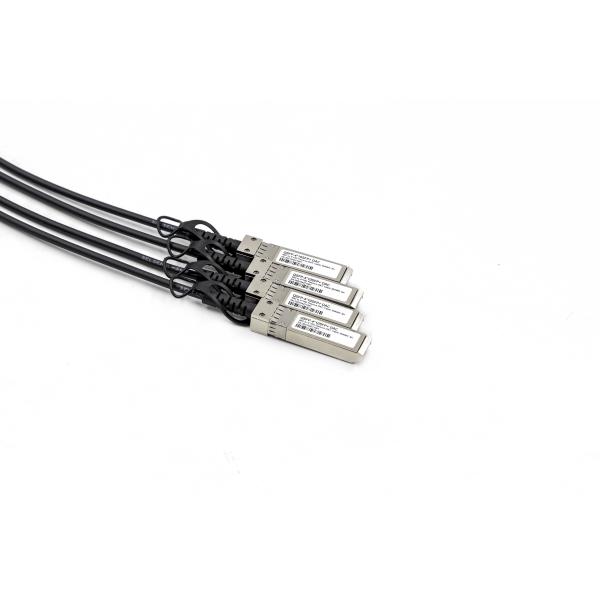

10Gbps 24AWG Direct Attach Copper Cable 7m QSFP DAC Cable

High Speed 40G QSFP+ to 4×10G SFP+ Direct Attach Cable copper cable
assemblies are a low cost alternative for short reach 4X
applications. They are designed to be fully compatible in form
factor and optical/electrical connections according to the QSFP
Multi-Source Agreement.QSFP+ connectors provide four channels of
data in one pluggable interface. Each channel is capable of
transferring data at 10Gbps and supports a total of aggregate
40Gbps as specified for QSFP+. These interconnects have three times
the density of SFP+ interconnects (MSA) and have been designed to
meet the harshest external operating conditions including
temperature, humidity and EMI interference.

Application

10G/40G Ethernet
InfiniBand, Fiber Channel 4G/8G/10G
Sonet Multiplatform support
High Performance Computing Clusters
High End Servers
Metro Network Switch/Cross Connect

Features

* 4-Channel Full Passive Copper Cable Transceiver
* QSFP+ conforms to the Small Form Factor SFF-8436and SFF-8431
* Support for multi-gigabit data rates up to 10.5Gbps
* Data rates backward compatible to 1Gbps
* Maximum aggregate data rate: 40 Gbps (4 x 10Gbps)
* Hot-DensityQSFP 38-PIN footprint
* I/O Connector designed for high speed differential signal
applications
* Improved Pluggable Form Factor(IPF) compliant for enhanced
EMI/EMC performance
* Compatible with industry standard SFP cages +Switches
* Temperature Range: 0~ 70 °C
* RoHS-6 Compliant

Compliant

Compliant with electrical standards IEEE 802.3ba
Compliant with mechanical standard SFF-8436 and SFF-8431
Compliant with EEPROM standard SFF-8472
RoHS Compliant

SeriesProduct Description
40G DAC
QSFP+ to 4SFP+
QSFP+ to 4SFP+, 40Gb/s, DAC, 0.5M, AWG30
QSFP+ to 4SFP+, 40Gb/s, DAC, 1M, AWG30
QSFP+ to 4SFP+, 40Gb/s, DAC, 2M, AWG30
QSFP+ to 4SFP+, 40Gb/s, DAC, 3M, AWG30
QSFP+ to 4SFP+, 40Gb/s, DAC, 4M, AWG26
QSFP+ to 4SFP+, 40Gb/s, DAC, 5M, AWG26
