Home > Mining Machinery >

CAMC 8900x3400x4050mm 6x4 90T Mine Dump Truck Export To Botswana Mining

Categories Tipper Dump Truck
Brand Name: Genron
Model Number: GVC0005
Certification: ISO CCC
Place of Origin: China
MOQ: 1
Price: USD 40000-USD 50000
Payment Terms: T/T
Supply Ability: 500PCS per month
Delivery Time: 15 workdays
Packaging Details: Bulk
Dimension: 8900x3400x4050mm
Loading capacity: 60 T
Curb weight: 90 T
Emission level: Euro III
Displacement: 11.8 L
Gear box: 8 forward gears, 1 climbing gear& 1 reverse ,synchronized
Brake System: Full air brake system, split pneumatic circuit ; exhaust brake; parking spring brake acting on rear axles
Full air brake system, split pneumatic circuit ; exhaust brake; parking spring brake acting on rear: 14.00-25,36
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

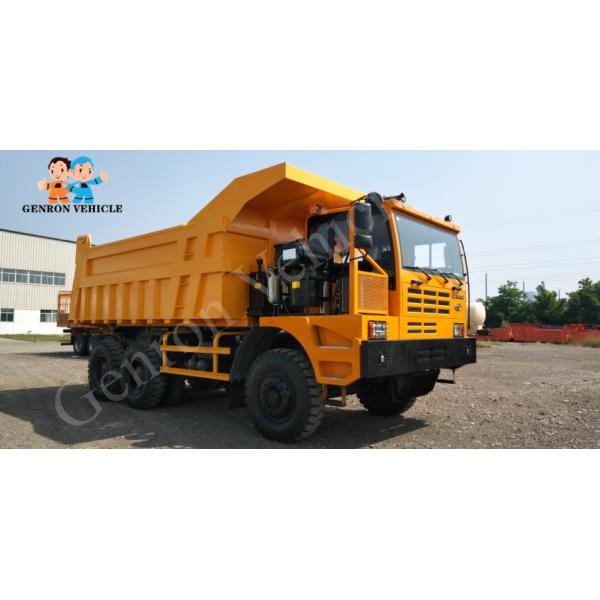

CAMC 8900x3400x4050mm 6x4 90T Mine Dump Truck Export To Botswana Mining

As a factory manufacturing semi trailer trucks for more than 20 years, Genron Vehicle manufactures more than 7200 semi trailer trucks for one year including container semi trailers, low bed semi trailers, bulk cement semi trailers, petroleum tankers, fence semi trailers, dump semi trailers, drop side semi trailers ans other special trucks.Our market is around the world for example Australia, Malaysia, Ghana, Jamaica, Chad, Tanzania, Zambia and other countries. Please trust us.Welcome to visit our factory in Shandong, China. And we accept video phone calls to see our factory and workshop because of the COVID-19.


CAMC mining card, as one of the top three early products in China, is favored by customers after decades of market tests.


By absorbing the technical essence of Valin heavy truck and introducing the design concept of advanced hydraulic system of domestic and foreign engineering vehicles, the product is constantly improved. With solid and durable chassis, accurate and portable control and safe and efficient operation efficiency, we are well received by customers at home and abroad.


In the power transmission system, the hamma diamond supply chain is adopted, the low-speed and high-torque engine is combined with the multi-gear box, which makes the vehicle run easily under various working conditions.


The in-cylinder braking of hamma engine combined with eddy current retarder has established obvious advantages of vehicle safety, reliability, energy saving and low consumption. This product is suitable for the harsh working conditions such as open-pit coal mine, port and stone yard, the products completely cover the load mass tonnage of 50, 70, left and right drive series, can be customized according to the special needs of customers personalized configuration, and has an annual output of 3000 vehicles automatic production line.


Details:

CAMC 90 T Mining Dumper Technical Specification
Chassis Dimensions(mm)
Overall chassis length8900
Cab width3400
Cab height (unladen) )4050
Wheel base3800+1500
Maximum velocity (Km/h)50
vehicle weights(kg)
G.V.W90,000
Curb weight(chassis)30 T
60 T
EngineTypeCM6D28G.353 30
Emission levelEuroIII
Maximum power353kw (480HP) at 1900 rpm
Maximum torque2250 Nm at 1400rpm
Number of cylinders6
Displacement (lit)11.8
Cylinder bore (mm)128
Stroke (mm)153
SystemWater cooled,turbocharged,after cooled ,direct injection ,cold start. Taking full power device, ECU
ClutchTypeSACHS
Plate's diameter¢430mm
operating systemHydraulic control with air booster, pulling
Gear boxType9SDB2051A
Number of gears8 forward gears, 1 climbing gear& 1 reverse ,synchronized
RatiosForward: 12.07;8.35;5.67;4.07;2.96;2.05;1.39;1.00 Reverse:131.24;
Brake SystemFull air brake system, split pneumatic circuit ; exhaust brake; parking spring brake acting on rear axles;
Cabcab,forward control type,low roof,new face, all welded steel cab of tilt type, machanical cab tilting, rear mechanical cab suspension, adjustable driver’s seat, air conditioning system, manual windows, manual door lock.
AxleFrontElliot type, I beam section
Load capacity(ton)25T
RearHub reduction ,35T*2 ; speed ratio 11.8
Load capacity(ton)70T
Tyres14.00-25,36
SuspensionFront13-Leaf spring
13
Rear15-leaf spring 15
BatteryVoltage (V)24
Battery capacity (A.h)165X2
FuelTypeSteel fuel tank, with lockable cap
Capacity500 lit
Dumper DeckFront Cylinder,Thickness(mm):bottome 16, side 12, dimension(m): 5.6*3.2*1.65,volume:29.5cbm

Qingdao Genron International Trade Co.,Ltd Main Business is Exporting all kinds of trailers ,trailer parts and Man-hand Welding Machinery ,Automatic Welding machinery,Trailer Production Line Etc. We have our own factory which produce trailers for more than 15 years,we can help you exporting other machinery and trucks.


FAQ:


1. who are we?
We are based in Shandong, China, start from 2019,sell to Africa(60.00%),Southeast Asia(10.00%),Oceania(10.00%),Mid East(10.00%),North America(5.00%),South America(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Truck Trailer,Trailer Spare Parts,Dry Ice Make Machine,Construction Machine,Diesel Tricycle

4. why should you buy from us not from other suppliers?
We have more than five factory partners which are at least TOP 3 factory in China suppliers ,we have our own technical team ,two of them are up to Engineer , two of them are graduated from University ,have got own patented design ,use auto CADsolid figur

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,French,Russian
