| Brand Name: | Imported Half Price Fence Panels |
| Model Number: | Imported Fence-1200mm-1500mm-1800mm-2100mm-2400mm |
| Certification: | AS/NZS1163& AS/NZS4506-1998 |
| Place of Origin: | New Zealand And Australia Design |
| MOQ: | 150 |
| Price: | 38.88$ |
| Payment Terms: | TT 30% deposit balance 70% at sight of done cargo |
| Supply Ability: | 8888 |
| Delivery Time: | 7 days |
| Packaging Details: | Metal Pallet With Plastic Jacket |
| Materials: | Q235 |
| Color: | Black and Grey or other |
| Dimensions: | 1800mm x 2400mm ,2100mm x 2400mm or Customized |
| Salt Spray Testing: | Pass |
| Treatment: | Powder Coated ,Hot Dipped Galvanized |
| Technical: | Punch Pipes and Welding etc |
| Nick Name: | Steel Fence ,Steel Tubular Fence ,Steel Spear Fence,Garrison Fence,ornamental steel fence |
| Upright Pipes: | 25mm x 25mm x 1.20mm |
| Rails: | 40mm x 40mm x 1.60mm |
| Post: | 65mm x 65mm x 2.00mm x 3000mm |
| Popular: | Powder Coated Stain Black |
| Apllication: | Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence |
| Company Info. |
| Top Fencing Co.Limited |
| View Contact Details |
| Product List |

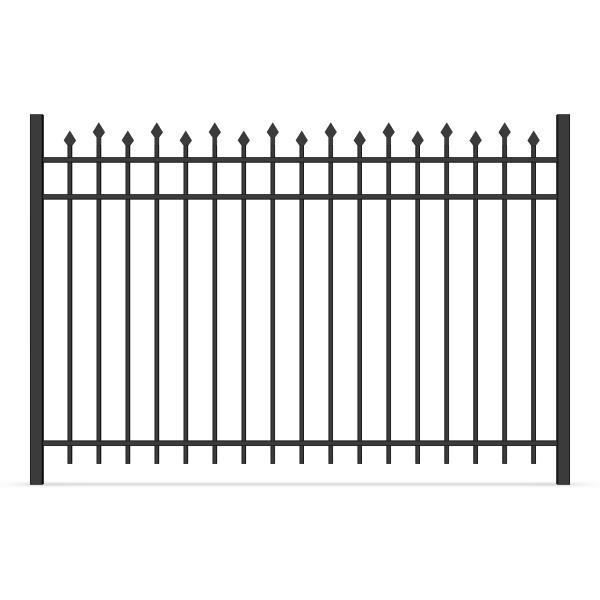

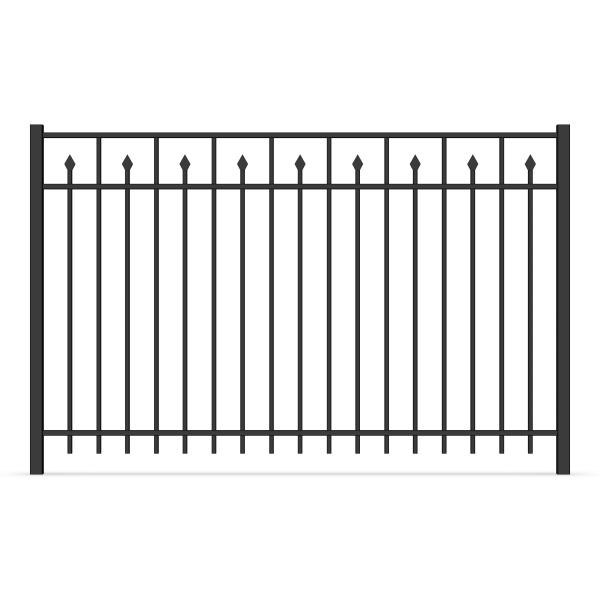

Three-rail design with the added touch of elegant spears. Available
in Residential Series, Residential Series Premium, Commercial
Series, and Commercial Series Premium. Premium grades have a
reinforced double-wall rail with hidden fasteners.
Standard sections are 6' wide x 3', 3-1/2’, 4', 4-1/2’, 5' or 6’ high. Sections come fully assembled. Custom width or height sections are available.
Pickets: Residential 5/8'' square x .050; Commercial 3/4” square x .055
The spacing between Pickets: Residential standard 3 13/16'' and optional 1-5/8”; Commercial standard 3-5/8” and optional 1-1/2”
Fasteners: Stainless steel
Horizontal Rails: Residential 1 1/8'' x 1'' with .080 side walls and .062 top walls; Commercial 1-1/4” x 1-3/8” with .088 side walls and .065 top walls
Posts: Residential 2'' square x .060, .080, or .125; 2-1/2” square
x .100; Commercial 2'' square x .080, or .125; 2-1/2” square x
.100; and 3” square x .125
All posts include standard caps
Alloy: High-strength Ultrum™ 6005-T5 alloy, min. strength 35,000 PSI
Finish: Powercoat™. When applied, Powdercoat is twice the thickness and hardness of a typical acrylic, baked enamel or “wet paint” finish, making it more durable, fade-resistant and scratch-resistant than other coatings.
Colours: Black, Satin Black, Bronze, Satin Bronze, Beige, Satin Khaki, White, Satin White, Forest Green



If you want one of these products you should give us the following information.or
we can recommend you the most popular products. our products lifetime is more
than 20 years.

Material | high quality galvanized steel tube; aluminium tube |
Panel size(height*length) | 1.2m*2.4m; 1.5m*2.0m;1.6m*2.0m;1.8m*2.4m as you request |
Rail | 38mm*25mm; 30mm*40mm; 40mm*40mm |
Picket | 16mm*16mm; 20mm*20mm; 25mm*25mm |

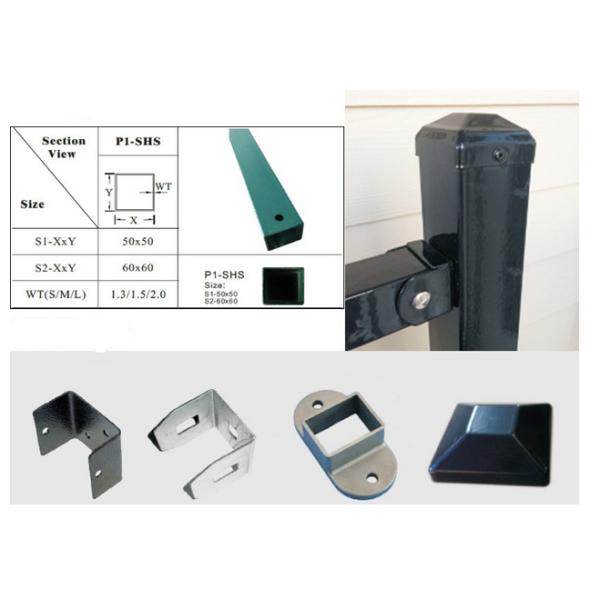

Post | 50mm*50mm; 50mm*50mm |
Center distance | 80mm; 90mm; 100mm |
Top style | flat top; spear top, aluminum spear top |
clip | metal clip(metal clip is more stronger) |
Surface treatment | Vinyl coated black, white (any Rall color) |
Installation | embeded into ground; surface mounting installationwith flange foot |

Wrought Iron Fence Packing
It is packed with plastic film and a wooden box.
Fences, posts and spares are packed separately.
|
