| Categories | Diplomat Fence |
|---|---|
| Brand Name: | Diplomat Fence |
| Model Number: | Diplomat-1200mm-1500mm-1800mm-2100mm-2400mm |
| Certification: | AS/NZS1163& AS/NZS4506-1998 |
| Place of Origin: | New Zealand And Australia Design |
| MOQ: | 100 |
| Price: | 58.88$ |
| Payment Terms: | TT 30% deposit balance 70% at sight of done cargo |
| Supply Ability: | 3000 |
| Delivery Time: | 7 days |
| Packaging Details: | Metal Pallet With Plastic Jacket |
| Materials: | Q235 |
| Color: | Black and Grey or other |
| Dimensions: | 1800mm x 2400mm ,2100mm x 2400mm or Customized |
| Salt Spray Testing: | Pass |
| Treatment: | Powder Coated ,Hot Dipped Galvanized |
| Technical: | Punch Pipes and Welding etc |
| Nick Name: | Steel Fence ,Steel Tubular Fence ,Steel Spear Fence,Garrison Fence,ornamental steel fence |
| Upright Pipes: | 25mm x 25mm x 1.20mm |
| Rails: | 40mm x 40mm x 1.60mm |
| Post: | 65mm x 65mm x 2.00mm x 3000mm |
| Popular: | Powder Coated Stain Black |
| Apllication: | Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence |
| Weld point: | Technology: verticals passing through top and bottom rails and welded to the rails by silicon bronze welding, 4 welds per vertical. |
| Company Info. |
| Top Fencing Co.Limited |
| View Contact Details |
| Product List |
1. Material: Hot Dipped Galvanized steel pipe; aluminium alloy T5 6063 T6 can be choose
2. Dimension: Our aluminium fence will be depended on customers
requirement, the following size is standard size, we can change
according to your draft.
2400mm width and 1800/2100 mm height.
* Horizontal pipe: 40x40mm,25x25mm ,38x25x1.5mm
* Vertical pipe:16x16x1.0mm ;19x19x1.2mm
* Space: 86/87/90/100/105/110mm
* Panel Size:1.2x2.4m,1.5mX3.0m, 1.7mX3.0m, 1.8mX2.4m
3. Finishing: powder coated
4. Colour available: natural aluminium colour, black, white, grey,
green, etc.
5. Advantage: quality first, strong, durable, easy to be assembled
and stylish. Usually used in Villa, Swim Centres, Gardens, Schools,
Warehouses, Industrial Properties.
Metal Fence common specification:
Material | Rail tube | Vertical tube | Steel column | Height |
galvanized pipe | 45*45*1.2mm | 25*25*1.0mm | 50*50*1.5mm | 1.2m / 1.5m / 1.8m / 2.0m |
40*40*1.2mm | 19*19*1.0mm | 60*60*1.5mm | 1.2m / 1.5m / 1.8m / 2.0m | |
32*32*1.2mm | 16*16*1.0mm | 75*75*1.8mm | 1.2m / 1.5m / 1.8m / 2.0m |

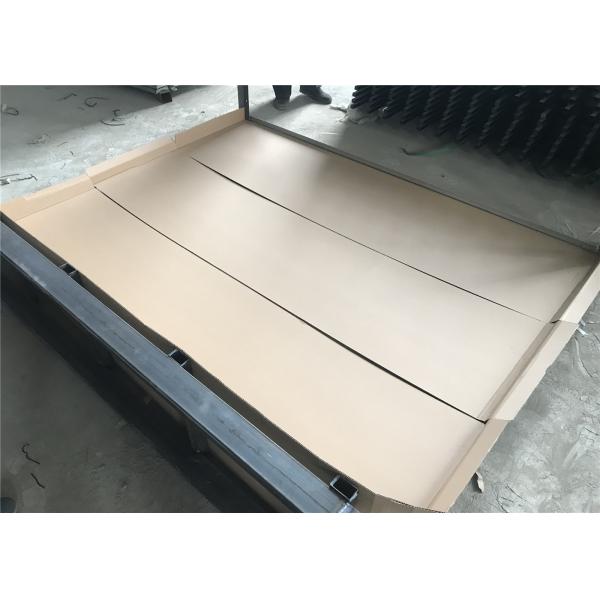

Normally standard packing details:
For each aluminium fence panel, we use one foam wrapped first,
then, 5 aluminium fences
panels will be one group, then one group use one plastic bag.



|
