Home > Iron Wire Mesh >

garrison Fencing Panels

Categories Garrison Fencing Panels
Brand Name: Garrison Fencing
Model Number: Garrison-1200mm-1500mm-1800mm-2100mm-2400mm
Certification: AS/NZS1163& AS/NZS4506-1998
Place of Origin: New Zealand And Australia Design
MOQ: 100
Price: 38.88$
Payment Terms: TT 30% deposit balance 70% at sight of done cargo
Supply Ability: 5000
Delivery Time: 7 days
Packaging Details: Metal Pallet With Plastic Jacket
Materials: Q235
Color: Black and Grey or other
Dimensions: 1800mm x 2400mm ,2100mm x 2400mm or Customized
Salt Spray Testing: Pass
Treatment: Powder Coated ,Hot Dipped Galvanized
Technical: Punch Pipes and Welding etc
Nick Name: Steel Fence ,Steel Tubular Fence ,Steel Spear Fence,Garrison Fence,ornamental steel fence
Upright Pipes: 25mm x 25mm x 1.20mm
Rails: 40mm x 40mm x 1.60mm
Post: 65mm x 65mm x 2.00mm x 3000mm
Popular: Powder Coated Stain Black
Apllication: Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence
Weld point: Technology: verticals passing through top and bottom rails and welded to the rails by silicon bronze welding, 4 welds per vertical.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

garrison Fencing Panels

Garrison Fencing Panels


Garrison Fencing, Heavy Duty Security Fence with pressed spear top, the premium boundary solution for industrial and commercial properties, constructed from quality pre-galvanised steel tubes, punch through or face welded, all welds silicon bronze for rust-proof, multi-layer protection powder coated realize exceptional anti-corrosion and weather resistant performance. Aluminum version also available for 2/3 lighter weight and easier carring.
Punch through type
Face welded type
Panel Width
Panel Height
SQ Rail
SQ Picket
SQ Post
2400mm (8')
1800mm (6')
40x40mm (1-1/2")
25x25mm (1")
65x65mm (2-1/2")
2400mm (8')
2100mm (7')
40x40mm (1-1/2")
25x25mm (1")
65x65mm (2-1/2")
2400mm (8')
2400mm (8')
40x40mm (1-1/2")
25x25mm (1")
65x65mm (2-1/2")
Manufacturing Technique
Manufactured from strong struture pre-galvanised steel tubes, rails and pickets punched through or face welded.
Zinc-rich Phosphating Pre-treatment ensure superior adhesion between the coating and base material.
Epoxy Primer Powder Coating cover all welds and cut edges for long-term anti-corrosion and anti-impact performance.
AkzoNobel Polyester Finish Powder Coating realize exceptional weather resistance with various colours available.
20 Year Limited Manufacturer Warranty.
Satin Black(most popular)
Gloss Black
Black Sand
Production Process
1.Automated Cutting, Punching & Drilling with high precision
2.Zinc-rich Phosphating Pre-treatment enhance the adhesion
3.All Welds Silicon Bronze for anti-rust protection
4.Zinc-rich Epoxy Primer Coating for long-term anti-corrosion
5.AkzoNobel Top Coating realize exceptional weather resistance
6.Pallet Packing ensure the integrity of the products delivered

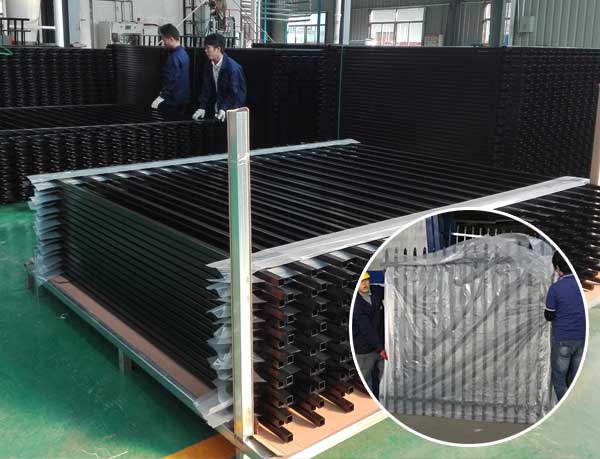

Product packaging
Consistent spears with the same shape and height
Pressed spears without cracks
Fantastic coating effect with smooth surface
Plastic cushion or plastic bag packing for protection
Various colors available, powder by AkzoNobel
Palletized packing and loading for transportation safety
Company Introduction
LNF manufacturer specialized in metal fence & railing products in China, both steel and aluminium supported. With 12 years focus in the industry, We has owned two manufacture bases and more than 400 employees, equipped with up-to-date fabrication machines and powder coating lines, especially we have set up our own laboratory for R&D testing.
Why Choose Us
LNF has got very good reputations in the American and Australian markets. Our delivered fencing can surround the earth one circle. We treasure every chance to cooperate with our existed and new clients by ensuring our quality and service, and further more We Provide Consistent Quality. We look forward to working with professional clients to develop and expand the global market according to local styles and specifications.
FAQ
What's the MOQ ?
One site supported, welcome to send us inquiries.
Loading Quantity?
33-35pcs/Pallet, 300-350pcs/40' HC.
What's the Best Price ?
The quotation is base on the fence styles and specifications you choose and the quantity you need, which consists of panels, posts, gates and accessories.
