Firestone Air Spring W01-M58-6128 Triple Convoluted Air Bags Suspension Goodyear 3B12-320

Firestone Air Spring W01-M58-6128 Triple Convoluted Air Bags Suspension Goodyear 3B12-320

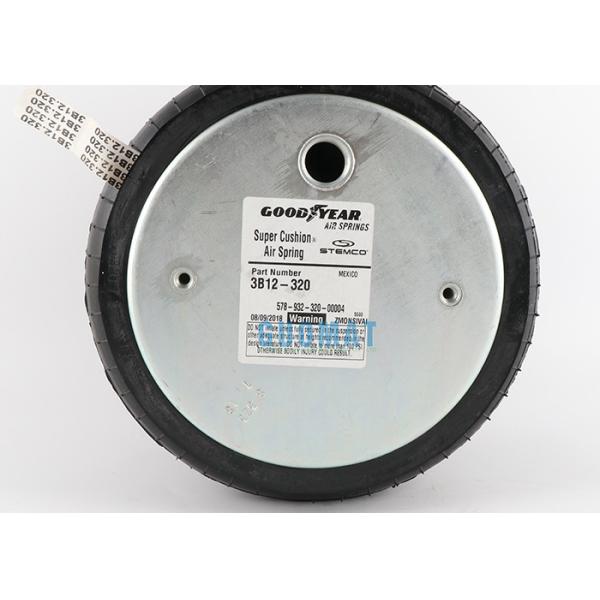

Goodyear 3B12-320 Cross others OEM

GUOMAT NO. :3B6128

Firestone Part NO.: W01-M58-6128;

Firestone Part NO.:W01 M58 6128;

Firestone Part NO.:W01M586128

Firestone Part NO.: WO1-M58-6128;

Firestone Part NO.:WO1 M58 6128;

Firestone Part NO.:WO1M586128

Goodyear Part NO.: 3B12-320;

Goodyear Part NO.:3B12 320;

Goodyear Part NO.:3B12320

Goodyear Bellows NO.:578-93-3-100

Goodyear Bellows NO.:578 93 3 100

Goodyear Bellows NO.: 578933100

Goodyear Flexmember 578-93-3-100

Goodyear Flexmember 578 93 3 100

Goodyear Flexmember 578933100

Firestone Part NO.: W01-M58-6129;

Firestone Part NO.:W01 M58 6129;

Firestone Part NO.:W01M586129

Firestone Part NO.: WO1-M58-6129;

Firestone Part NO.:WO1 M58 6129;

Firestone Part NO.:WO1M586129

Technical Parameters of Goodyear 3B12-320

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2pcsXM-8 x 1.25 BLIND NUTS 15 mm DEEP

Screw Center Distance of Top Cover Plate : 157mm

Bottom Cover Plate Screw (Nut) Tooth : 2pcsXM-8 x 1.25 BLIND NUTS 15 mm DEEP

Screw Center Distance of Bottom Cover Plate : 157mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

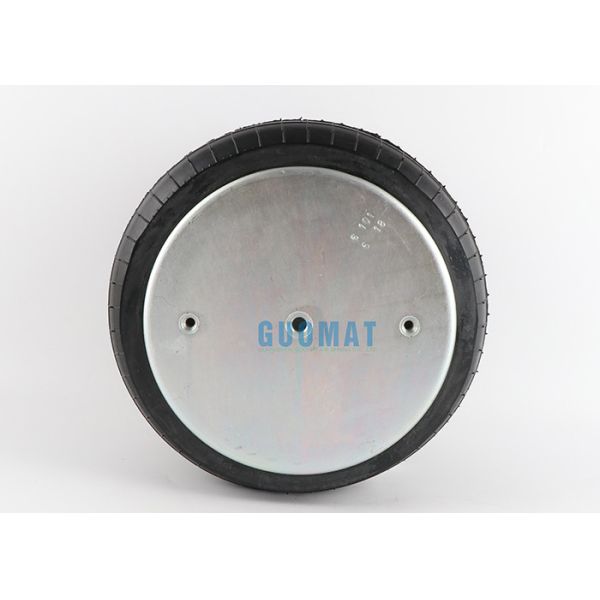

❸ Cover Plate

Top Cover Plate Diameter: 264 mm

Bottom Cover Plate Diameter: 264 mm

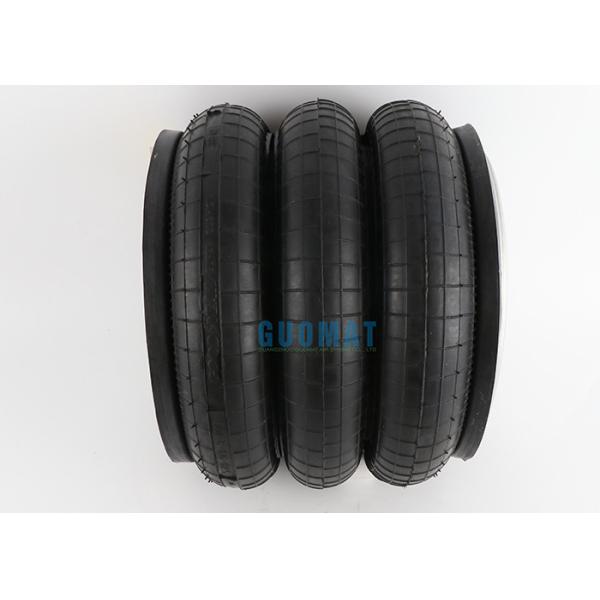

❹Rubber Bellows

Rubber Bellows MAX Diameter: 333 mm

Rubber Bellows Natural Diameter :300 mm

The Working Stroke : MAX 470 mm to MIN 115 mm

Maximum Height : 470 mm

Minimum Height :115mm

Compression Height : 330 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop

Style 352
Blind nuts, 1/4 BSP
W01-M58-6129
Blind nuts, 3/4 BSP
W01-M58-6128
Two Ply Bellows
Assembly weight.........................................................8.84 kg.
Force to collapse to minimum height (@ 0 BAR) 900 N.
