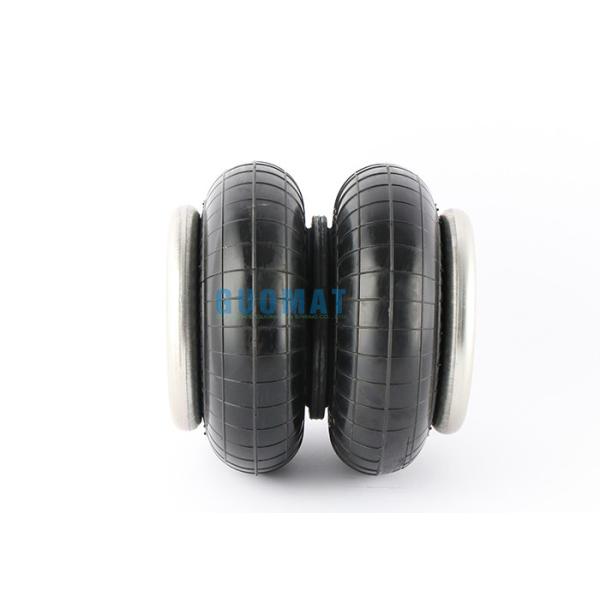

2B188168 Industrial Air Springs With 4 Screw On One Plate

AIRSUSTECH 2B188168 Industrial Air Springs With 4 Screw On One Plate​

AIRSUSTECH 2B188168 Specifications and Detail Technical Parameters

❶ Nut/blind nut

Top plate screw (nut) teeth: 4XM8X1.5
The screw center distance of the top cover plate: 70 mm
Screw (nut) teeth of the bottom cover plate: 4XM8X1.5
The screw center distance of the bottom cover plate: 70 mm

❷ Air hole/air inlet/air fittings
Air hole/air inlet: 1/ 4
Screw center distance between air hole and nut: 35mm

❸ Cover plate
Top plate diameter: 135 mm
Diameter of the bottom cover:135 mm

Bell rubber bellows
Maximum diameter of rubber bellows: 215 mm
Natural diameter of rubber bellows: 190 mm
Working stroke: minimum 75 mm to maximum 230 mm
Maximum height: 230mm
Minimum height: 75mm
Stroke height: 155mm

❺ Bumper block/bumper block
No bumper block

❻ Belt loop/Belt loop
There is a belt hoop: a belt hoop

AIRSUSTECH 2B188168 Cross OEM Original Equipment Manufacturer:

AIRSUSTECH 2B188168

AIRSUSTECH rubber bellows 2B120

T2086660
ContiTech: 603 N
ContiTech:FD 120-17 1/4
ContiTech:FD120-17 1/4
ContiTech:FD12017 1/4

Goodyear:2B7-540
Goodyear:2B7540
Goodyear:2B7 540
Goodyear:578-92-3-202
Goodyear:578 92 3 202
Goodyear:578923202
Firestone: 0142
Firestone:W01-358-0142
Firestone:W01 358 0142
Firestone:W013580142

AIRSUSTECH 2B188168 product description:

The air spring shock absorber AIRSUSTECH 2B188168 can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 2B188168 to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 2B188168 must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 2B188168 , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 2B188168 shall not be in contact with other parts
