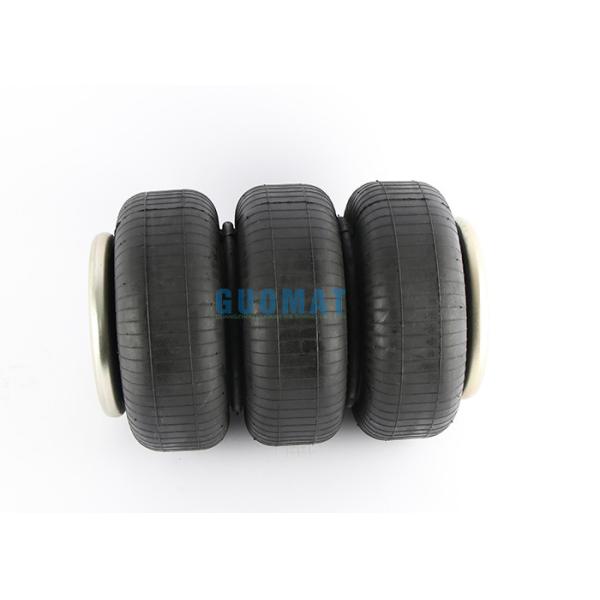

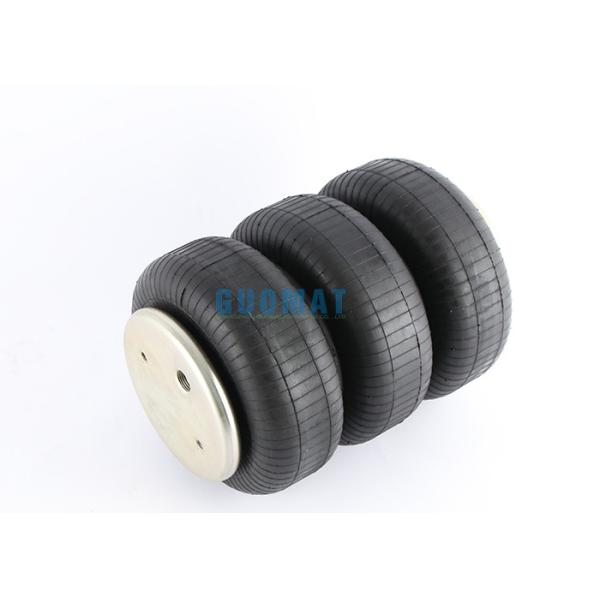

TS16949 Suspension Air Springs 3B20F-2P03 Height Stroke Small DIA. 223MM

Suspension Air Springs AIRSUSTECH 3B20F-2P03 Height Stroke Lifte and Small DIA. 223MM

AIRSUSTECH 3B20F-2P03 Air Bags product description:

The air spring shock absorber AIRSUSTECH 3B20F-2P03 Air Bags can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 3B20F-2P03 Air Bags to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 3B20F-2P03 Air Bags must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 3B20F-2P03 Air Bags , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 3B20F-2P03 Air Bags shall not be in contact with other parts

AIRSUSTECH 2B6910 Cross OEM Original Equipment Manufacturer:

AIRSUSTECH 3B20F-2P03

AIRSUSTECH rubber bellows 20F-2P03

3B20F-2P03 Specifications and Detail Technical Parameters

❶Nut/blind nut

Top plate screw (nut) teeth: 2X3/8-16UNC
The screw center distance of the top cover plate: 89 mm
Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC
The screw center distance of the bottom cover plate: 89 mm

❷Air hole/air inlet/air fittings
Air hole/air inlet: 1/2NPTF
Screw center distance between air hole and nut: 44.5 mm

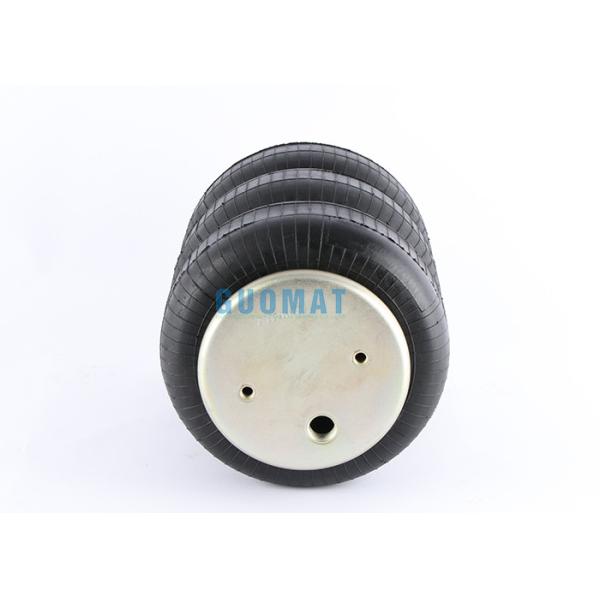

❸Cover plate
Top plate diameter: 160 mm
Diameter of the bottom cover: 160 mm

Bell rubber bellows
Maximum diameter of rubber bellows: 251 mm
Natural diameter of rubber bellows: 223 mm
Working stroke: minimum 200 mm to maximum 400 mm
Maximum height: 400 mm
Minimum height: 200mm
Stroke height: 200mm

❺Bumper block/bumper block
No bumper block

❻Belt loop/Belt loop
There is a belt hoop: a belt hoop
