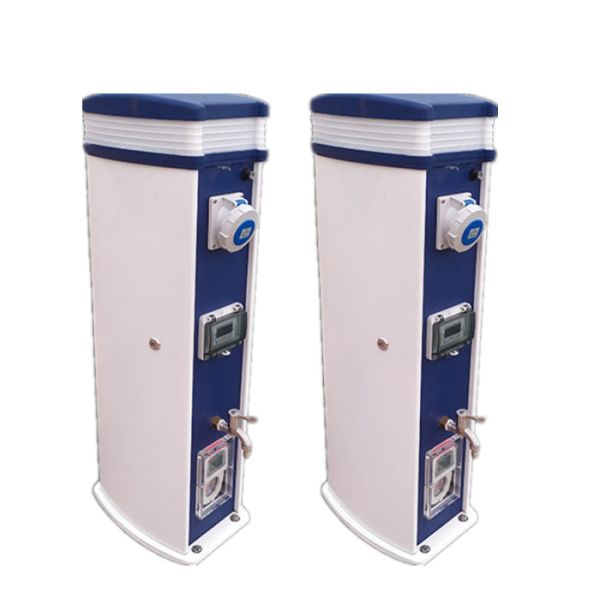

IP67 Marine Pontoon Dock Water And Power Pedestal Anti Impact

IP56 IP67 Marine Marina Pontoon Dock Water And Power Pedestal LED Light

Specification

The initiative to control water and electricity by intelligent plug-in card: real-time billing and metering, time, stored value, recharge, remote control, etc.
Perfect solution to outdoor installation and using socket without fixed wall.

Pontoon (boat or floating box instead of bridge, bridge floating in the water)

Pontoon, refers to the bridge of the bridge, floating on the water, or floating box. The army adopts the military pontoon of the formulation equipment, which is called the boat bridge. The historical record of the pontoon is early in China. "Book of Songs, Da Ya Daming" records: "Welcome to the Yuxi, Zhou Zhan is Liang", record Zhou Wen Wang Jichang in the Weihe frame pontoon in 1184 BC. In foreign countries, the Persi Dynasty Russian Emperor built a pontoon in Mesopia in May 537 BC.

Fender

The fender, also known as the ship's handguard, is an elastic buffer device used on the pier or the edge of the ship, which is made of wood or rubber.

It is mainly used to slow down the impact force between the ship and the dock or the ship in the process of docking or mooring, and reduce or eliminate the damage to the ship and the dock.

Feature:

1.High impact resistance

2.UV and salt water resistance

3.Zero corrosion

4.UV proof

Technical Specifications:

Material : 304 stainless steel

Size : 300*250*1200mm

IP- Class: IP56

Temperature : -30°C ～ 70°C

Impact resistance class: IK10

Sockets : 2 pcs, (200V～250V 2P+T) 16A/32A/63A

Socket IP-class: IP67

Safety : 16A/32A/63A RCBO RCD id = 30mA. Each socket is protected by an automatic circuit breaker.

Lighting : 10W 220V LED light

Water taps: 2pcs,1/2’ waterpipe

Intelligent lighting device : Intelligent optical receiving inductor

Electricity meter: Advanced electronic watt-hour meter

Water meter: Liquid seal, high sensitive meter

Material : Aluminium alloy

Size : 250*250*1200mm

IP- Class: IP56

Temperature : -30°C ～ 70°C

Impact resistance class: IK10

Sockets : 4pcs, (200V～250V 2P+T) 16A/32A/63A

Socket IP-class: IP67

Safety : 16A/32A/63A RCBO RCD id = 30mA. Each socket is protected by an automatic circuit breaker.

Lighting : 10W 220V LED light

Water taps: 2pcs,1/2’ waterpipe

Intelligent lighting device : Intelligent optical receiving inductor

Electricity meter: Advanced electronic watt-hour meter

Water meter: Liquid seal, high sensitive meter

Technical Specifications:

Matterial : Plastic

Size : 380*380*1000mm

IP- Class: IP56

Temperature : -30°C ～ 70°C

Impact resistance class: IK10

Sockets : 2 pcs, (200V～250V 2P+T) 16A/32A/63A

Socket IP-class: IP67

Safety : 16A/32A/63A RCBO RCD id = 30mA. Each socket is protected by an automatic circuit breaker.

Lighting : 10W 220V LED light

Water taps: 2pcs,1/2’ waterpipe

Intelligent lighting device : Intelligent optical receiving inductor

Electricity meter: Advanced electronic watt-hour meter

Water meter: Liquid seal, high sensitive meter

Intelligent system: for intelligent card pay electricity supply device
