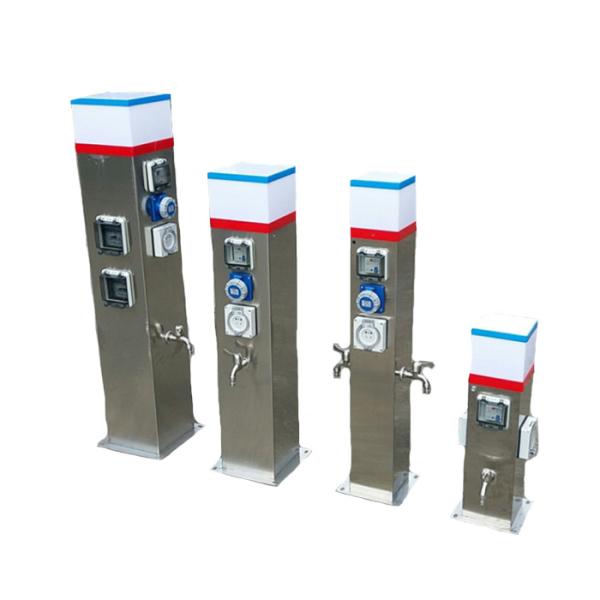

304 Stainless Steel Marine Power Pedestal Anti Impact

Marine Marina Pontoon Port Stainless Steel Aluminum Alloy Polyethylene Water And Power Pedestal

Specification

Feature:

1.High impact resistance

2.UV and salt water resistance

3.Zero corrosion

4.UV proof

Technical Specifications:

Material : 304 stainless steel

Size : 300*250*1200mm

IP- Class: IP56

Temperature : -30°C ～ 70°C

Impact resistance class: IK10

Sockets : 2 pcs, (200V～250V 2P+T) 16A/32A/63A

Socket IP-class: IP67

Safety : 16A/32A/63A RCBO RCD id = 30mA. Each socket is protected by an automatic circuit breaker.

Lighting : 10W 220V LED light

Water taps: 2pcs,1/2’ waterpipe

Intelligent lighting device : Intelligent optical receiving inductor

Electricity meter: Advanced electronic watt-hour meter

Water meter: Liquid seal, high sensitive meter

Technical Specifications:

Matterial : Plastic

Size : 380*380*1000mm

IP- Class: IP56

Temperature : -30°C ～ 70°C

Impact resistance class: IK10

Sockets : 2 pcs, (200V～250V 2P+T) 16A/32A/63A

Socket IP-class: IP67

Safety : 16A/32A/63A RCBO RCD id = 30mA. Each socket is protected by an automatic circuit breaker.

Lighting : 10W 220V LED light

Water taps: 2pcs,1/2’ waterpipe

Intelligent lighting device : Intelligent optical receiving inductor

Electricity meter: Advanced electronic watt-hour meter

Water meter: Liquid seal, high sensitive meter

Intelligent system: for intelligent card pay electricity supply device

Material : Aluminium alloy

Size : 250*250*1200mm

IP- Class: IP56

Temperature : -30°C ～ 70°C

Impact resistance class: IK10

Sockets : 4pcs, (200V～250V 2P+T) 16A/32A/63A

Socket IP-class: IP67

Safety : 16A/32A/63A RCBO RCD id = 30mA. Each socket is protected by an automatic circuit breaker.

Lighting : 10W 220V LED light

Water taps: 2pcs,1/2’ waterpipe

Intelligent lighting device : Intelligent optical receiving inductor

Electricity meter: Advanced electronic watt-hour meter

Water meter: Liquid seal, high sensitive meter
