| Categories | Perkins Diesel Generator Set |
|---|---|
| Brand Name: | Ai Power Perkins 15kva |
| Model Number: | A15 |
| Certification: | CE, ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 Unit |
| Price: | USD 4200 to 5100 Per Unit Negotiable |
| Payment Terms: | Western Union, L/C, T/T, MoneyGram |
| Supply Ability: | 200 Units Per Month |
| Delivery Time: | 30 Days |
| Packaging Details: | plywood or plastic film |
| Prime Power: | 12Kw/15Kva |
| Standby Power: | 13.2Kw/16.5Kva |
| Wuxi UK Perkins Engine Model: | 403A-15G2 |
| Cylinder: | 3 |
| Marathon Alternator Model: | GM-12-4 |
| Fuel Tank Capacity: | 28L |
| Silent Canopy Color: | Depand On customer Request |
| Controller: | Comap AMF 25 |

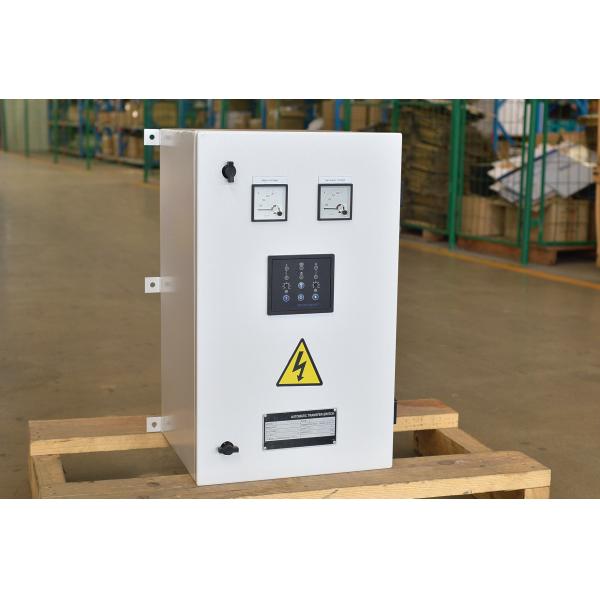

| ATS: | Depand on Customer Need |
| Spare parts: | All available |
GENERAL ENGINE DATA
| Generator set model | Voltage | Hz | Phase | P.F. | Prime Power | Standby Power | ||
| (V) | KVA | KW | KVA | KW | ||||
| AP17 | 230/400 | 50 | 3 | 0.8 | 15 | 12 | 17 | 13 |
| •220/380V, 240/415V, 254/440V is avaliable | ||||||||
GENERAL ENGINE DATA
| Engine manufacture | Perkins Engines Company Limited | |||||||||||
| Engine brand | Perkins | |||||||||||
| Engine model | 403A-15G2 | |||||||||||
| Engine speed (rpm) | 1500 | |||||||||||
| Prime power | Standby power | |||||||||||
| Gross engine power (kWb) | 14 | 15.4 | ||||||||||
| Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW) | 12 | 13.26 | ||||||||||
| Cylinders | 3-cylinder, vertical in line | |||||||||||
| Cycle | 4 stroke | |||||||||||
| Induction system | Naturally Aspirated | |||||||||||
| Compression ratio | 22.5:1 | |||||||||||
| Bore * Stroke (mm) | 84*90 | |||||||||||
| Cubic capacity (Litre) | 1.496 | |||||||||||
ALTERNATOR Specification
| Alternator manufacturer | Leroy-somer Electro-technique (Fuzhou) Company Ltd. | |||||||||||
| Alternator brand | Leroysomer | |||||||||||
| Alternator model | TAL-A40-D | |||||||||||
| Control system | SHUNT | |||||||||||
| A.V.R. | Included | |||||||||||
| Voltage regulation | ±1.0% | |||||||||||
| Insulation system | Class H | |||||||||||
| Protection | IP23 | |||||||||||
| Rated power factor | 0.8 | |||||||||||
| Winding pitch | Two thirds | |||||||||||
| Winding leads | 6 | |||||||||||
| Frequency (Hz) | 50 | |||||||||||
| Voltage (V) | 400 | |||||||||||
| Phase | 3 | |||||||||||
| Output ratings (kVA/kW) | ||||||||||||
| ----------------Cont.H-40°C | 15/12 | |||||||||||
| ----------------Standby-27°C | 16.5/13.2 | |||||||||||
| THF | <2% | |||||||||||
| TIF | <50 | |||||||||||
| Max. overspeed (Rev/Min) | 2250 | |||||||||||
| Bearing | Single | |||||||||||

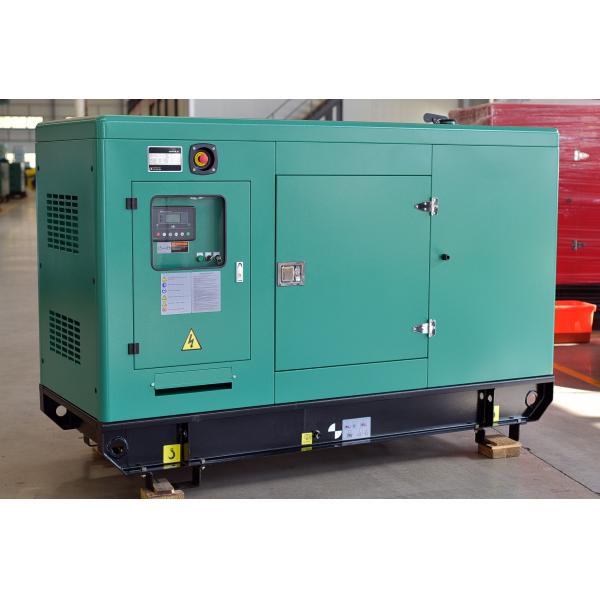

Pernkins Generator 12KW/15KVA 403A-15G2 Photo



FAQ:
Q1:What is your power range of your diesel generator?
Answer: We can provide 6KVA to 3000KVA.
Q2:What is the different between prime power and standby power?
Answer: Prime power is 12 hours continuous power, Standby Power is
1 Hour peak power.
Q3:How to choose the power?
Answer: Collect all power of your equipments, take the surge
current into your consideration.
Q4:What is your payment term?
Answer: We accept T/T, L/C, Western Union.
Q5:What is your warranty?
Answer: We will warrant our diesel generator for 1000 hours or one
year which comes first.
Q6:What is your MOQ?
Answer: MOQ is 1 set.
Q7:Do you offer OEM service?
Answer: OYes!
Q8:What is your lead time?
Answer:15-20days after receive your deposit.
|
