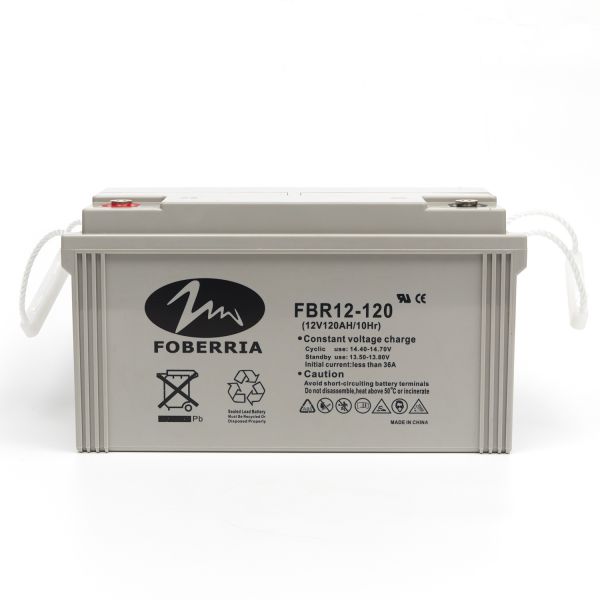

Factory rechargeable sealed lead acid battery 12v 120ah for solar energy systems

Factory rechargeable sealed lead acid battery 12v 120ah for solar energy systems

> Product parameters

Battery Model No.		FBR12V120Ah
Nominal Voltage		12V
Capacity@25°C	20HR(5.25V)	120Ah
	10HR(5.25V)	105Ah
	1HR(4.80V)	74Ah
Dimensions	Length	281±2mm
	Width	267±2mm
	Height	207±2mm
	Total height	210±2mm
Approx Weight		37.5kg±4%
Terminal Type		F13
Internal resistance(Fully charaged @25°C)		Approx 4Ω
Capacity affected by temperature (20HR)	40°C	102%
	25°C	100%
	0°C	85%
	-15°C	65%
Self-discharge@25°C	3 months	Remaining capacity:91%
	6 months	Remaining capacity:82%
	12months	Remaining capacity:65%
Nominal operating temperature		25°C±3°C(77°F±5°F)
Operating temperature range	Discharge	-15°C~50°C(5°F~122°F)
	Charge	-10°C~50°C(14°F~122°F)
	Storage	-20°C~50°C(-4°F~122°F)
Float charging voltage @25°C		13.5V to 13.8V Temperature compensation:-18mV/°C
Cyclic charging voltage @25°C		14.5V to 15V Temperature compernsation:-30mV/°C
Max charging current		36A
Max discharging current		960A(5 sec.)
Desigined floating life(20°C)		10 years

> Overview

FOBERRIA rechargeable sealed lead acid battery provide high performance and brilliant reliability in long period cycling use. Special lead

calcium alloy plate and high purify additive formulation of the deep cycle battery series provides constant power for longer length of time without

shortening the life of the battery.The deep cycle AGM battery series offer an exceptionally long cycle life compared to standard AGM, Mainly

applied for electric systems, security systems, medical equipment, shipping systems, telecommunications equipment, various testing machines,

radio transceiver, the banking uninterruptible power supply system, railway locomotives, railway communications, emergency lighting systems,

small lamps, large UPS and computer backup power, fire extinguishing systems, electronic equipment ,solar power system (off-grid solar power

system, solar street light system, solar garden light system) and wind power system, etc.

> Main Features

1. Maintenance free sealed lead acid battery

As it is valve-regulated sealed lead acid battery.sealed and glass mat is used .acid is trapped inside. so refilling is not needed and is

leak proof.

2. No memory effect

Some Sealed Lead Acid batteries .say nickel –cadmium batteries will become conditioned to provide less power offer repetitious short

usage /discharge.

3. Low self discharge

The self –discharge rate for FOBERRIA Sealed Lead Acid Battery is about 2-3% per month at room .temperature compared with 20-30%

for other common battery systems.

4. Longer service life

Used thick and massive calcium grate ensure that FOBERRIA battery has a longer service life over 10years.

5. High discharge rate

Since the internal resistance is low .the battery can provide high rate of discharge.

6.Wide operation temperature range

VRLA Sealed Lead Acid Battery capacity is rated at 25°C, and will operate from 15°C +50°C when it is fly charged Ambient temperature

is 25°C.Service life will be more efficient under 15’C to 25”C .

> Structure and composition

Component	Pos. plate	Neg. plate	Container	Cover	Separator	Electrolyte	Safety valve	Terminal
Raw material	Lead dioxide	Lead	ABS	ABS	AGM	Sulfuric acid	Rubber	Copper

> Application

1. Solar power system(off-grid solar power system, solar street light system, solar garden light system);

2. Wind Power System;

3. UPS and computer backup power;

4. Telecommunication system;

5. Power station System;

6. Railway System;

7. Emergency lighting system;

8. Automatic control system;

9. Alarm system for fire protection, security.

>Constant Current Discharge Characteristics(A,25ºC)

F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
9.6V	82.8	63.8	38.2	23.5	13.9	9.88	7.98	6.82	4.69	3.87	2.05
9.9V	80.4	62.3	37.4	23.1	13.8	9.83	7.94	6.78	4.66	3.86	2.05
10.2V	77	60	36.3	22.5	13.7	9.76	7.88	6.73	4.63	3.85	2.04
10.5V	73.7	58	35.4	22.1	13.5	9.69	7.83	6.69	4.6	3.83	2.03
10.8V	69.6	54.9	34.1	21.4	13.1	9.4	7.59	6.49	4.46	3.8	2.01

>Constant Power Discharge Characteristics(Watt,25ºC)

F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
9.60V	895	701	428	268	161	116	93.9	80.6	55.7	46.2	24.6
9.90V	868	684	420	264	160	116	93.3	80.2	55.4	46.1	24.6
10.2V	832	659	407	257	158	115	92.7	79.6	55	46	24.5
10.5V	796	636	397	252	156	114	92.1	79.1	54.6	45.7	24.3
10.8V	752	603	383	244	152	111	89.3	76.7	53	45.4	24.2

>Discharge diagram

>Assembling

SUZHOU FOBERRIA NEW ENERGY TECHNOLOGY CO.,LTD.

"Established in 2012 ,but we start from 2009 ,So we have 10+years experience in lead acid battery.

At the beginning we build the big professional team in the battery production ,So we know everything in the battery production

and we can supply the self -service based on customer requirements. We reorganized from Jiangsu Storage Battery Factory,

professional in the researching, manufacturing and developing of VRLA battery.

Producing products include:

• AGM Batteries

• GEL Batteries

• OPzV Battery

• Flooded Acid Batteries

• Off Grid Solar Batteries

• Solar GEL Batteries

• Telecom Batteries

• Car/Auto Batteries

• Front Terminal Battery

• Lithium batteries and so on.

we have advanced plate casting and pasting machine with the fully automatic assembly lines. And we are going to keep advanced

level in the world.With years of production experience and strong production force, stable and reliable product quality, has won the

confidence of domestic and foreign merchants.

Our products are widely used in UPS,Motorcycle,Automobile ,Electric vehicle,Tourist car,Marine Equipment,Electric Power System,

Solar Power System,Wind Power System,etc. They have a good reputation in domestic and foreign markets.

Our batteries are hot saled in many countries,like as Russia,Turkey,Morocco,Vietnam,Iran,Venezuela and other south America countries.

Even then our products occupied 75% in Russian market.
