12v 24v 36v 48v 60v 1000w 1 kw brushless dc motor 2000rpm 110mm Textile Machine

Categories Brushless DC Motor
Brand Name: JSS
Model Number: 110BL165-620
Certification: CE,ROHS,ISO
Place of Origin: China
MOQ: 10
Price: Negotiable
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs/day
Delivery Time: 25days
Packaging Details: Cartoon box
Name: 110mm Brushless Dc Motor
Rated Voltage: 310VDC
Rated Current(A): 5.4
Rated power(W): 1255W
Rated torque(N.M): 6N.M
Peak torque(N.M): 18N.M
Rated Speed(rpm): 2000rpm
Motor Length(mm): 165MM
Motor Weight(kg): 9.5Kg
Application: Textile Machine Field
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

12v 24v 36v 48v 60v 1000w 1 kw brushless dc motor 2000rpm 110mm Textile Machine

Textile Machine Field 110mm Brushless Dc Motor 1000W Power
Product Description

On the way of development, the principle of "efficiency is the life, quality is the fundamental" is always insisted by JSS people. We take the market as guidance, provide high quality products and good service to customers. We are expecting the cooperation with more friends from home and abroad in the near future.

Our main products includes stepper motors, closed loop system, gear reducer stepper motor, linear stepper motor, brake stepper motor, stepper drivers, controller board, spindles, power supplys, and other accessories.


our main products:

hybrid stepper motor and drives

Brushless DC motor and drives

planetary gearbox

AC servo motor

Spindle motor

Linear guide and its pairs

Ball screw and its pairs


General specification:

ItemSpecification
Widing typeStar/Delta
Hall effect angle120 degree electrice angle
Shaft runout0.025mm
Radial play0.02mm/450g
End play0.08mm/450g
Max radial force600N/20mm from the flange
Max axial force180N
Insulation classClass B
IP classIP 40
Dielectric strength1500VDC for one minute
Insulation Resistance100MΩmin 500VDC

Electrical Specification:

ModelPhase No.Rated Voltage (VDC)Rated Speed (RPM)

Rated

Current

(A)

Rated Torque (N.m)Peak Torque
(N.M)
Rated Power (W)Mass (Kg)Body Length (mm)
110BL140-620331020003.64128367.5140
110BL165-620331020005.461812559.5165
110BL180-620331020007.2824167310.5180


Electrical Connection:


Lead No.Lead ColorLead GaugeFunctionDescription
1RedUL3266/28AWGVCC+5VDCSUPPLY VOLTAGE FOR HALL SENSORS
2BlackGNDGROUND FOR HALL SENSORS
3YellowHALL ASIGNAL OF HALL A
4GreenHALL BSIGNAL OF HALL B
5BlueUL3266/20AWGHALL CSIGNAL OF HALL C
1YellowPHASE UMOTOR PHASE U
2GreenPHASE VMOTOR PHASE V
3BluePHASE WMOTOR PHASE W

Wiring diagram:

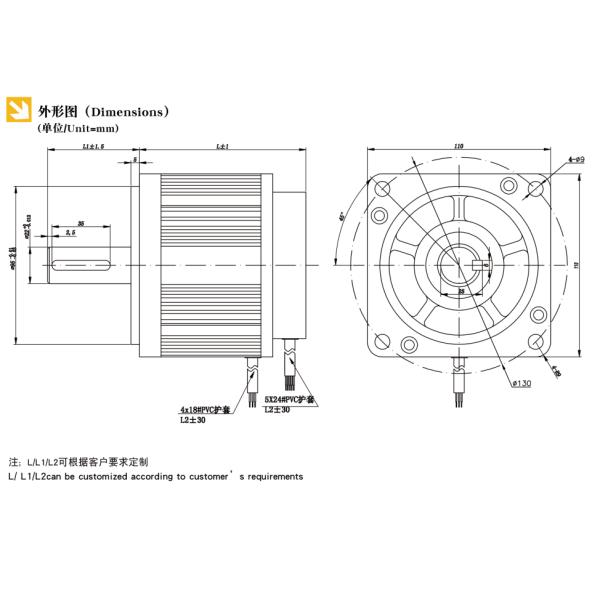

Dimensions:

(Unit=mm)
