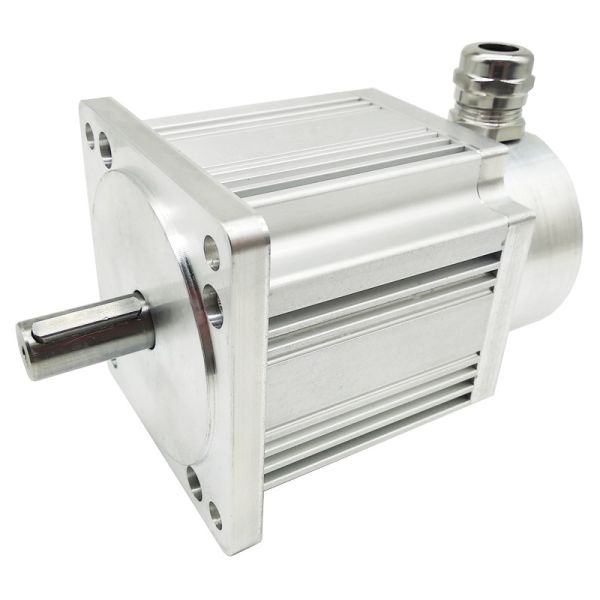

| Name: | Brushless Dc Motor |
| Rated Voltage: | 48VDC |
| Rated Current: | 14 |
| Rated power: | 502W |
| Rated torque: | 1.6N.M |
| Peak torque: | 34.8N.M |
| Rated Speed: | 3000rpm |
| Motor Length: | 145MM |
| Motor Weight: | 2.5Kg |
| Type: | Brushless DC Motor |
| Application: | Home application |
General specification:
| Item | Specification |
| Widing type | Star/Delta |
| Hall effect angle | 120 degree electrice angle |
| Shaft runout | 0.025mm |
| Radial play | 0.02mm/50g |
| End play | 0.08mm/50g |
| Max radial force | 220N/20mm from the flange |
| Max axial force | 60N |
| Insulation class | Class B |
| IP class | IP 40 |
| Dielectric strength | 500VDC for one minute |
| Insulation Resistance | 100MΩmin 500VDC |
Electrical Specification:
| Model | Phase No. | Rated Voltage (VDC) | Rated Speed (RPM) | Rated Current (A) | Rated Torque (N.m) | Rated Power (W) | Mass (Kg) | Body Length (mm) |
| 80BL100-430 | 3 | 48 | 3000 | 7 | 0.8 | 251 | 1.6 | 105 |
| 80BL120-430 | 3 | 48 | 3000 | 10.5 | 1.2 | 377 | 2.5 | 125 |
| 80BL145-430 | 3 | 48 | 3000 | 14 | 1.6 | 502 | 3.0 | 145 |
Electrical Connection:
| Lead No. | Lead Color | Lead Gauge | Function | Description |
| 1 | Red | UL3266/28AWG | VCC+5VDC | SUPPLY VOLTAGE FOR HALL SENSORS |
| 2 | Black | GND | GROUND FOR HALL SENSORS | |
| 3 | Yellow | HALL A | SIGNAL OF HALL A | |
| 4 | Green | HALL B | SIGNAL OF HALL B | |
| 5 | Blue | UL3266/20AWG | HALL C | SIGNAL OF HALL C |
| 1 | Yellow | PHASE U | MOTOR PHASE U | |
| 2 | Green | PHASE V | MOTOR PHASE V | |
| 3 | Blue | PHASE W | MOTOR PHASE W |
