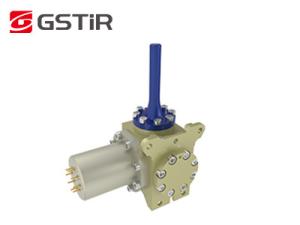

400mW RS046 Integral Rotary Stirling Cryocooler for Cooled Infrared Detectors
RS046 is a self-developed integral rotary stirling cryocooler by Global Sensor Technology (GST). It has a cryogenic working environment to cool sensors, scientific instruments and optics etc.
With compact mechanical structure, and advanced c-rings sealing, RS046 detector dewar cooler (ddc) was specially developed to fit the applications where low input power, volume and weight are the most important parameters.
It has highly efficient, dependable, proven performance solutions that meet customer’s specific performance requirements.
- MTTF＞10000hrs
- Cooling Power: (@77K@20℃)＞400mW
- Cooling Time: <4.5mins(150J@77K@20℃)
- Small Size
- Low Noise
- Low Consumption
| Model | RS046 |
| Type | Integral Rotary Stirling Cryocooler |
| MTTF | ＞10000hrs |
| Size (mm) | 95.6×81×46 |
| Weight | ＜260g |
| Cooling Power | (@77K@20°C)＞400mW |
| Working Temperature | -45°C~ +85°C |
| Storage Temperature | -56°C~ +85°C |
| Environmental Specification | MIL-STD-810 |
| Input Voltage | 24-32VDC/9-12VDC |
| Max Power Consumption | <12W |
| Steady Power Consumption | <3.2W (130mW@100K@20°C) |
| Cooling Time | <4.5min (150J@77K@20°C) |
| Cold Finger Dimension | Φ6.4mm |
| Electronics | External |
| Integration Method | IDDCA |
The RS046 integrated dewar cooler assembly is used for provide cryogenic environment for the cooled infrared detectors.
1.What is infrared thermography?
Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.
2. What can the infrared thermography be used for?
The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.
3.What are the advantages of infrared thermography?
For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.
For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
|
