| Categories | Microwave Fixed Attenuator |
|---|---|
| Model Number: | ZSJxx-10RN-18T |
| Place of Origin: | Chengdu,China |
| power handling: | 10W |
| attenuaiton: | 1-60dB |
| VSWR: | 1.45:1 Max |
| Connector: | N-Male/Female,Stainless Steel |
| Housing: | Aluminum |
| Temperature Range: | -55ºC ~ +125ºC |
| Frequency Range: | DC-18GHz |
| Brand Name: | Zysen |
| MOQ: | 1pc |
| Delivery Time: | 2-4 Weeks |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C,D/A |
| Certification: | ISO9001 |

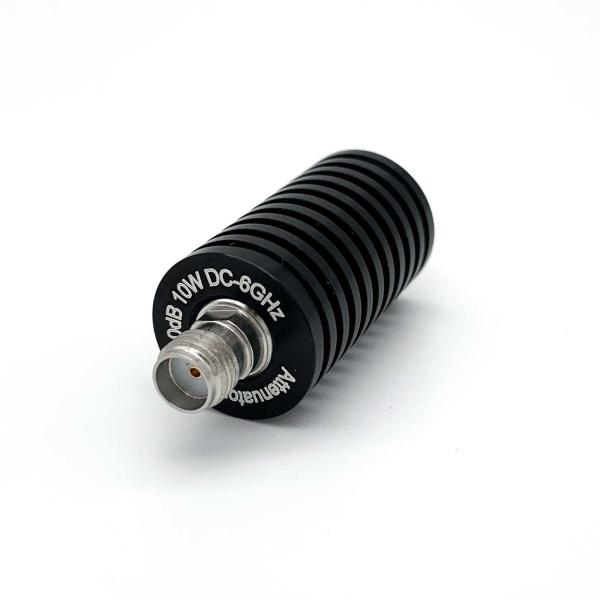

Zysen's 10W attenuators available with DC-4GHz, DC-8GHz, DC-12.4GHz, DC-18GHz, 50 impedance & SMA, N Female/Male connectors. Available with 1, 3, 6, 9, 10, 20, 30dB, 40dB, 50dB, 60dB attenutation.
| ||||||
| Frequency Range | DC – 18GHz | |||||
| Power | 10W CW @ 25ºC | |||||
| Attenuation | 1~10dB | 11~20dB | 21~30dB | 31~40dB | 41~50dB | 51~60dB |
| Attenuation Accuracy | ±0.6dB max | ±0.8dB max | ±1.0dB max | ±1.2dB max | ±1.3dB max | ±1.5dB max |
| VSWR | 1.45 max | |||||
| Impedance | 50ohm | |||||
| Input Connector | N-Male | |||||
| Output Connector | N-Female | |||||
| Temperature Range | -55ºC ~ +125ºC | |||||
| ||||||
| Connector Material | Cu | |||||
| Housing | Aluminum, Black Anodize | |||||
|
