| Categories | Oil Plug |
|---|---|
| Place of Origin: | China |
| MOQ: | According to the request of the guest |
| Price: | USD |
| Packaging Details: | carton packing |
| Delivery Time: | 30-35days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000pcs per month |
| Product name: | China Manufacture 316 Stainless Steel Hexagon Socket DIN Tube Fittings |
| Material: | StainlessSteel.Carbon Steel ,.Aluminum |
| Quality: | high quality |
| Certification: | ISO9001 IATF16949 |
| Appearance: | Bright neat body, without any burrs |
| Finish: | Black Oxide, white zinc plated, yellow zinc, HDG,Dacromet |
| TRADE TERM: | FOB/ CIF |
| Service: | OEM /ODM |
| Company Info. |
| Jiaxing Dexun Co.,Ltd. |
| View Contact Details |
| Product List |

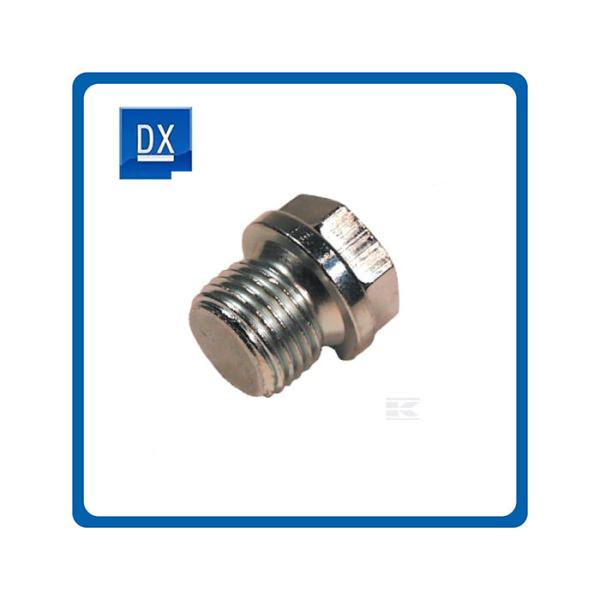

China Manufacture 316 Stainless Steel Hexagon Socket Oil Plug DIN Tube Fittings
Description
We are specialized in the production of all kinds of automotive plug,DIN/ASME/SAE-USA/STANDARDS screw plug.
See table information
| Material | 1. Stainless Steel: SUS302, SUS304, SUS316,SUS201,etc |
| 2. Carbon Steel: 1018, 1022 etc | |
| 3. Alloy Steel : Titanium Alloy, 10B21, 435, 402Cr etc | |
| 4. Aluminum or Aluminum Alloy | |
| 5. Brass | |
| Surface Treatment | Zinc plated, Nickle plated, Chrome plated, Passivation, Oxidation, Anodization, Black Oxide, Phosphatizing, Power Coating and Eletrophoresis, etc |
| Processing Equipment | cold heading machine, threading machine, CNC machining center, CNC lathe, automatic lathe machine, conventional lathe machine, milling machine, drilling machine, grinding machine, etc |
| MOQ | Depending on the situation, please send inquiry. |
| Standard | DIN, GB, ISO, ANSI, BS, JIS etc |
| Non-standard: | OEM is available, but you should give us samples or drawing. |
| Sample | We could provide samples for free, if we have the stock. Buyers pay freight, and could choose which one you want. We will send Deppon Express for no express delivery. |
| Terms of Trade | FOB, CIF |
| Lead Time | 15-25 days after order confirmed or as you request |
| Packing | Single poly bag, bubble bags, wooden case, carton box, or as you request |
| Logo | We will print our logo and brand, of course, without additional requirements. |
| If you want, we could print your logo or your brand. | |
| After-sales Service | We will follow up every customer and solve all problems for you. |
| Certification: | ISO 9001:2015, SGS |
Our DIN906 plugs are manufactured in Heavy and Light Series depending on pressure requirement. Dexun range of Brass Single Ferrule Fittings, Double Ferrule Fittings and Pipe Fittings are widely used with Brass, Copper or Iron pipe and tube.
Features
· Dust Cap Provided
· Ferrules are chemically treated for better performance.
· Variety of end connections and patterns as per Customer Requests
· Any special design brass plug can be manufactures according to customer’s drawing or sample.
· Small MOQ is supported.
· High quality with competitive price is ensured
Questions:
1. Q: Are you a factory or a trading company?
A: We have our own factory and professional sales team.
2. Q: Can you provide free sample?
A: Standard existing sample for free; customized sample, we will charge sample fee and refund the sample fee once format order confirmed.
3. Q: What's your MOQ?
A: 1pc for stocked items, flexible MOQ for each customized design.
4. Q: What products do you mainly supply?
A: Standard and custom made items.
5. Q: What is your delivery time?
A: Around 3-4 days after payment for standard stock items; around 15-25 days after payment for customized order. The specific lead time depends on the products & quantity.
6. Q: What’s your delivery method?
A: Any delivery method is available and supported. We can delivery by air-express, air cargo and by sea according to the order quantity or as customer required.
7. Q: Which port will you ship the goods ?
A: Normally Ningbo or Shanghai, China port. Other ports can be available.
Specification as shown below: Below sizes threaded plug steel are available 1/8 In ; 1/4 In ; 3/8 In ; 1/2 In ; 3/4 In ; 1 In ; 1-1/4 In ; 1-1/2 In ; 2 In ; 2-1/2 In ; 3 In ; 4 In Below surface treatment of threaded plug steel is available CR3+ ZINC PLATING,... We have the best Oil Pan plugs for the right price. Wide range and large quantity in stock to ensure fast delivery. Both standard & customized type are OK. Especially,
we have over 14 years experience on manufacturing oil pan bolt. Good quality and competitive price can be ensured at the same time. Pls not hesitate to call me for detail, if any oil pan bolt is in need.
Below is brief introduction about our oil pan bolt series. For specific item details, pls contact me. Thank you!
Specification As Shown Below:
| T | S | B | L | d2 | t | Wt. | ||
| mm | inch | mm | mm | mm | mm | mm | g | |
| M10*1 | - | R1/8" | 7 | 8 | 12.5 | - | - | 5.7 |
| M12*1.5 | - | - | 7 | 10 | 15 | - | - | 9.1 |
| - | - | R1/4" | 9 | 10 | 15 | - | - | 12.0 |
| M14*1.5 | - | - | 9 | 10 | 15 | - | - | 13.2 |
| M16*1.5 | - | - | 10 | 10 | 16 | - | - | 17.9 |
| - | - | R3/8" | 10 | 10 | 16 | - | - | 19.4 |
| M18*1.5 | - | - | 10 | 10 | 16 | - | - | 21.9 |
| M20*1.5 | - | - | 13 | 10 | 17 | 12 | 6 | 25 |
| - | - | R1/2" | 13 | 10 | 17 | 12 | 6 | 27.2 |
| M22*1.5 | - | - | 13 | 10 | 17 | 14 | 6 | 29.0 |
| M24*1.5 | - | - | 17 | 12 | 20 | 16 | 7 | 43.8 |
| M26*1.5 | - | - | 17 | 12 | 20 | 16 | 7 | 50.9 |
| - | M27*2 | R3/4" | 17 | 12 | 20 | 16 | 7 | 51.8 |
| M30*1.5 | M30*2 | - | 19 | 12 | 22 | 20 | 7 | 69.4 |
| - | M33*2 | R1"A | 19 | 12 | 22 | 23 | 7 | 76.2 |
| M36*1.5 | M36*2 | - | 24 | 15 | 27 | 26 | 10 | 118 |
| M38*1.5 | - | - | 24 | 15 | 27 | 28 | 10 | 125 |
| - | M39*2 | - | 24 | 15 | 27 | 28 | 10 | 130 |
| M42*1.5 | M42*2 | R1 1/4" | 24 | 18 | 30 | 32 | 13 | 151 |
| M45*1.5 | M45*2 | - | 24 | 18 | 30 | 35 | 13 | 163 |
| M48*1.5 | M48*2 | R1 1/2" | 30 | 20 | 35 | 38 | 15 | 230 |
| M52*1.5 | M52*2 | - | 30 | 20 | 35 | 42 | 15 | 249 |
| - | M56*2 | - | 30 | 22 | 37 | 46 | 17 | 275 |
| - | M60*2 | - | 30 | 22 | 37 | 50 | 17 | 296 |
factory:
Factory:
*Our company is a company engaged in the development, production and distribution of various types of fasteners and hydraulic accessories. *Fastener products are widely used in automobiles, motorcycles, rail passenger cars, ships, machinery and equipment, electronic appliances and other fields.
*Used in all kinds of hydraulic machinery such as oil cylinder, pump oil, hydraulic valve, hydraulic station, diesel engine, etc.
*In addition to high-quality carbon steel and alloy steel, the production materials include 304, 316, 410 and other high-quality stainless steel. Mainly produces GB, JIS, BS, DIN, ANSI, NF, JB, JQ, JQ / ZQ and other domestic and foreign standard bolts, self-tapping screws, hexagon flange drill screws, lock nuts, pins, retaining rings, keys , Hydraulic joints, various oil plugs, oil plugs and other products. Our factory has strong technical force and exquisite craftsmanship.
|
